• PATLITE NE-USB Signal Beacon
1 1

PATLITE NE-USB Signal Beacon

PATLITE NE-USB Signal Beacon

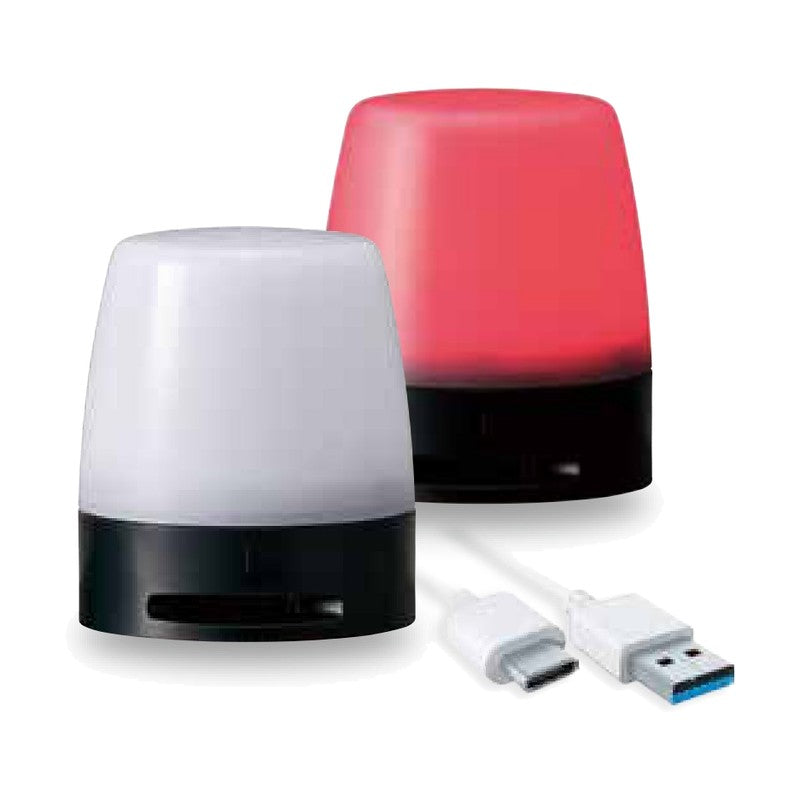

Φ56 multi-color signal beacon powered and controlled over USB from a PC or HMI, for self-checkout systems, printers and PC-controlled equipment.

Key features

  • 7 colors from one unit
  • Powered over USB (Type-C)
  • USB HID class: no dedicated driver required
  • DLL software library; Windows and Linux compatible
  • Optional capacitive touch sensor input

Specifications

Size Φ56
Rated voltage 5V DC (USB bus power)
Voltage range Rated voltage ±5% (USB 2.0)
Humidity 90% RH or less, non-condensing
Mounting location Indoor
Luminous color Multi-color (Red, Green, Blue, Amber, Cyan, Purple, White)
Volume 10 levels (off to max)
Connector USB Type-C
PATLITE NE-USB USB Signal Beacon - reference 2
NE-SN-USB Mounting: Stationary / magnetic / 1/4-inch screw | Touch sensor: None | Max. current: 205mA | Protection: IP20 | Sound: Typ. 65 dB (0.5 m) | Temperature: -20 to +50°C
NE-ST-USB Mounting: Stationary / magnetic / 1/4-inch screw | Touch sensor: Capacitive | Max. current: 215mA | Protection: IP20 | Sound: Typ. 65 dB (0.5 m) | Temperature: -20 to +50°C
NE-WN-USB Mounting: Direct mount | Touch sensor: None | Max. current: 170mA | Protection: IP65 | Sound: Typ. 85 dB (1 m) | Temperature: -25 to +60°C
NE-WT-USB Mounting: Direct mount | Touch sensor: Capacitive | Max. current: 180mA | Protection: IP65 | Sound: Typ. 85 dB (1 m) | Temperature: -25 to +60°C
Signal BeaconsPATLITE
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

PATLITE NE-USB Signal Beacon

Brand PATLITE·Signal Beacons

Available part numbers (4)

NE-SN-USB, NE-ST-USB, NE-WN-USB, NE-WT-USB

How to order

Send the PATLITE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
PATLITE NE-USB USB Signal Beacon - reference 2
0 selected
RFQ List (0)
Product codeSpec
NE-SN-USBMounting: Stationary / magnetic / 1/4-inch screw | Touch sensor: None | Max. current: 205mA | Protection: IP20 | Sound: Typ. 65 dB (0.5 m) | Temperature: -20 to +50°C
NE-ST-USBMounting: Stationary / magnetic / 1/4-inch screw | Touch sensor: Capacitive | Max. current: 215mA | Protection: IP20 | Sound: Typ. 65 dB (0.5 m) | Temperature: -20 to +50°C
NE-WN-USBMounting: Direct mount | Touch sensor: None | Max. current: 170mA | Protection: IP65 | Sound: Typ. 85 dB (1 m) | Temperature: -25 to +60°C
NE-WT-USBMounting: Direct mount | Touch sensor: Capacitive | Max. current: 180mA | Protection: IP65 | Sound: Typ. 85 dB (1 m) | Temperature: -25 to +60°C
