• PATLITE NHB Network Signal Tower with Alarm
1 1

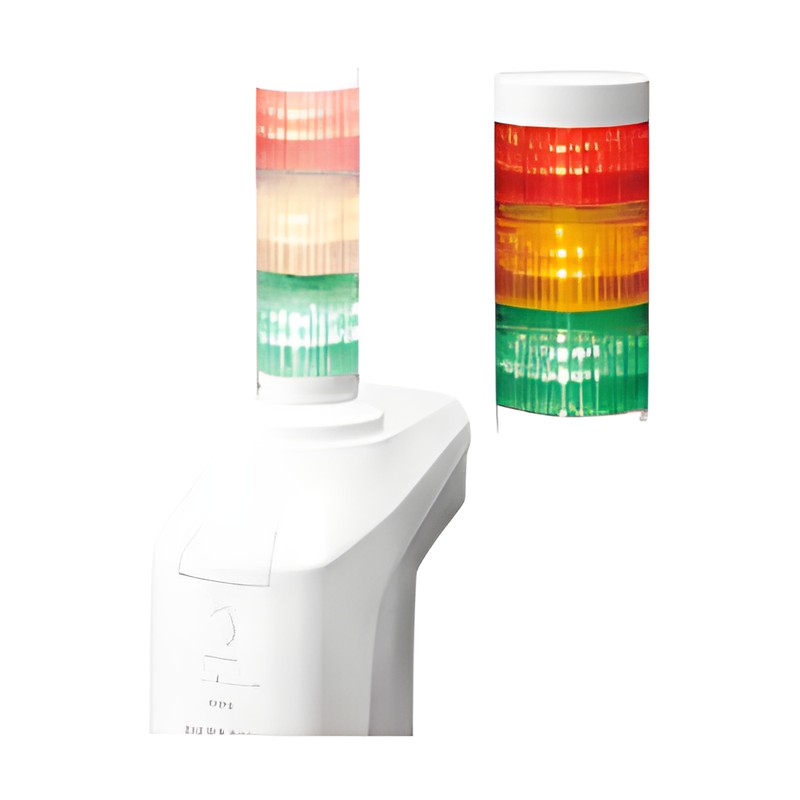

PATLITE NHB Network Signal Tower with Alarm

PATLITE NHB Network Signal Tower with Alarm

LAN-connected signal tower with a built-in alarm buzzer that notifies administrators of network device and server failures by light and sound.

Key features

  • PING monitoring of up to 24 devices plus SNMP status monitoring and SNMP TRAP reception
  • Controlled by HTTPS/HTTP, SSH/RSH and SOCKET (PNS/PHN) commands or from AWS / Azure cloud services
  • Five alarm patterns, 80 dB
  • Sends e-mail and HTTP commands to link with other PATLITE or third-party products
  • Test button for checking light and alarm operation without network control
  • Up to 5 LED tiers with 4-level dimming

Specifications

Rated voltage 24V DC (AC adapter ADP-001 sold separately)
LAN RJ-45, IPv6/IPv4
Protocols HTTPS, HTTP, SNMP v3/v2c/v1, SSH, RSH, SOCKET, PING
PING monitoring Up to 24 nodes
Sound pressure 80 dB or more
Alarm patterns 5
Volume 3 levels
LED tiers Up to 5 (LR4-E / LR6-E LED units)
Dimming 4 levels
Overall height 150 mm (0 tiers) to 350 mm (5 tiers)
Setup Web browser
PATLITE NHB Network Signal Tower with Alarm - reference 2
NHB4-0N Signal tower size: Φ40 (LR4 LED units) | LED tiers: 0 (body only, LED units sold separately) | Power: 24V DC, no AC adapter included
NHB4-3N-RYG Signal tower size: Φ40 (LR4 LED units) | LED tiers: 3 (Red, Amber, Green) | Power: 24V DC, no AC adapter included
NHB6-0N Signal tower size: Φ60 (LR6 LED units) | LED tiers: 0 (body only, LED units sold separately) | Power: 24V DC, no AC adapter included
NHB6-3N-RYG Signal tower size: Φ60 (LR6 LED units) | LED tiers: 3 (Red, Amber, Green) | Power: 24V DC, no AC adapter included
Network Signal TowersPATLITE
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

PATLITE NHB Network Signal Tower with Alarm

Brand PATLITE·Network Signal Towers

Available part numbers (4)

NHB4-0N, NHB4-3N-RYG, NHB6-0N, NHB6-3N-RYG

How to order

Send the PATLITE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
PATLITE NHB Network Signal Tower with Alarm - reference 2
0 selected
RFQ List (0)
Product codeSpec
NHB4-0NSignal tower size: Φ40 (LR4 LED units) | LED tiers: 0 (body only, LED units sold separately) | Power: 24V DC, no AC adapter included
NHB4-3N-RYGSignal tower size: Φ40 (LR4 LED units) | LED tiers: 3 (Red, Amber, Green) | Power: 24V DC, no AC adapter included
NHB6-0NSignal tower size: Φ60 (LR6 LED units) | LED tiers: 0 (body only, LED units sold separately) | Power: 24V DC, no AC adapter included
NHB6-3N-RYGSignal tower size: Φ60 (LR6 LED units) | LED tiers: 3 (Red, Amber, Green) | Power: 24V DC, no AC adapter included
