• PATLITE NHV Network Signal Tower with Voice Annunciator
1 1

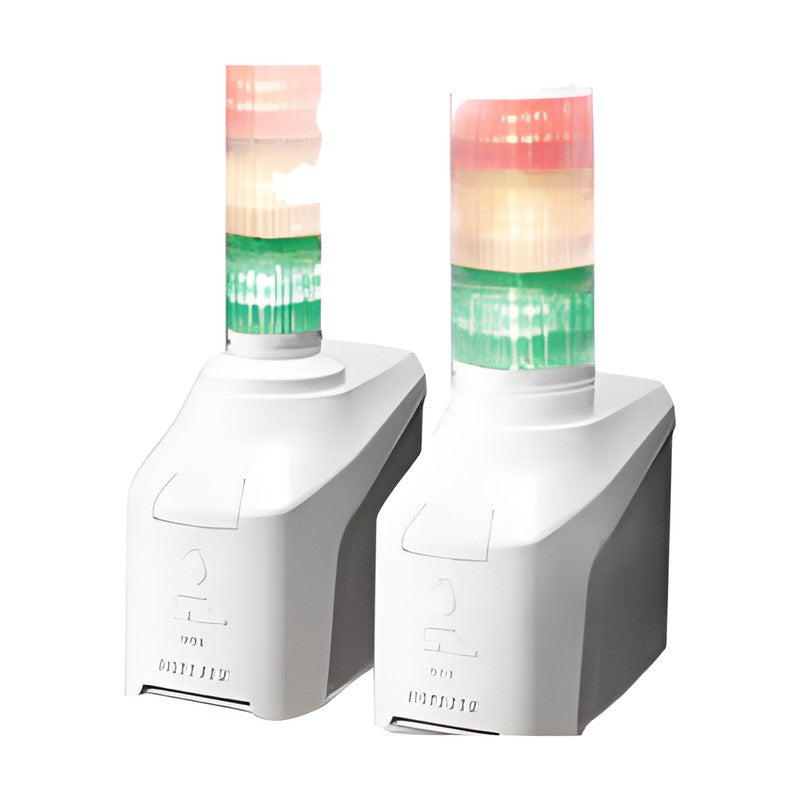

PATLITE NHV Network Signal Tower with Voice Annunciator

PATLITE NHV Network Signal Tower with Voice Annunciator

LAN-connected signal tower with MP3 voice playback and text-to-speech that alerts staff by light, sound and voice when network devices, servers or equipment report errors.

Key features

  • Monitors up to 24 network devices by PING and reads device status via SNMP (v3/v2c/v1), including SNMP TRAP reception
  • Built-in text-to-speech engine works offline; MP3 files can be uploaded from a web browser
  • Controlled by HTTPS/HTTP, SSH/RSH, SOCKET (PNS/PHN commands) and from AWS IoT Core or Azure IoT Hub/Central
  • Sends e-mail (OAuth 2.0 supported) and HTTP commands to other devices; mail reception detection
  • Loud, clear audio of 88 dB or more at 1 m with 16 volume levels and a line-out for external amplifiers
  • LED units can be added or reconfigured by hand up to 5 tiers; 4-level dimming

Specifications

Rated voltage 24V DC (AC adapter ADP-001 sold separately)
LAN RJ-45, IPv6/IPv4
Protocols HTTPS, HTTP, SNMP v3/v2c/v1, SSH, RSH, SOCKET, PING
PING monitoring Up to 24 nodes
Sound pressure 88 dB or more (at 1 m)
Voice MP3 playback, text-to-speech; 11 built-in sounds
Volume 16 levels
LED tiers Up to 5 (LR4-E / LR6-E LED units)
Dimming 4 levels
Overall height 150 mm (0 tiers) to 350 mm (5 tiers), +40 mm per tier
Mounting Stationary, wall/VESA (NH-001), partition (NH-002), tripod
Setup Web browser
PATLITE NHV Network Signal Tower with Voice Annunciator - reference 2
NHV4-0N Signal tower size: Φ40 (LR4 LED units) | LED tiers: 0 (body only, LED units sold separately) | Function: Standard (no digital I/O, no PoE) | Power: 24V DC, no AC adapter included
NHV4-3N-RYG Signal tower size: Φ40 (LR4 LED units) | LED tiers: 3 (Red, Amber, Green) | Function: Standard (no digital I/O, no PoE) | Power: 24V DC, no AC adapter included
NHV6-0N Signal tower size: Φ60 (LR6 LED units) | LED tiers: 0 (body only, LED units sold separately) | Function: Standard (no digital I/O, no PoE) | Power: 24V DC, no AC adapter included
NHV6-3N-RYG Signal tower size: Φ60 (LR6 LED units) | LED tiers: 3 (Red, Amber, Green) | Function: Standard (no digital I/O, no PoE) | Power: 24V DC, no AC adapter included
NHV4-0DN Signal tower size: Φ40 (LR4 LED units) | LED tiers: 0 (body only, LED units sold separately) | Function: Digital I/O: 4 inputs / 2 outputs | Power: 24V DC, no AC adapter included
NHV4-3DN-RYG Signal tower size: Φ40 (LR4 LED units) | LED tiers: 3 (Red, Amber, Green) | Function: Digital I/O: 4 inputs / 2 outputs | Power: 24V DC, no AC adapter included
NHV6-0DN Signal tower size: Φ60 (LR6 LED units) | LED tiers: 0 (body only, LED units sold separately) | Function: Digital I/O: 4 inputs / 2 outputs | Power: 24V DC, no AC adapter included
NHV6-3DN-RYG Signal tower size: Φ60 (LR6 LED units) | LED tiers: 3 (Red, Amber, Green) | Function: Digital I/O: 4 inputs / 2 outputs | Power: 24V DC, no AC adapter included
NHV4-0DP Signal tower size: Φ40 (LR4 LED units) | LED tiers: 0 (body only, LED units sold separately) | Function: Digital I/O: 4 inputs / 2 outputs + PoE power (IEEE802.3at) | Power: PoE+ (IEEE802.3at) or 24V DC, no AC adapter
NHV4-3DP-RYG Signal tower size: Φ40 (LR4 LED units) | LED tiers: 3 (Red, Amber, Green) | Function: Digital I/O: 4 inputs / 2 outputs + PoE power (IEEE802.3at) | Power: PoE+ (IEEE802.3at) or 24V DC, no AC adapter
NHV6-0DP Signal tower size: Φ60 (LR6 LED units) | LED tiers: 0 (body only, LED units sold separately) | Function: Digital I/O: 4 inputs / 2 outputs + PoE power (IEEE802.3at) | Power: PoE+ (IEEE802.3at) or 24V DC, no AC adapter
NHV6-3DP-RYG Signal tower size: Φ60 (LR6 LED units) | LED tiers: 3 (Red, Amber, Green) | Function: Digital I/O: 4 inputs / 2 outputs + PoE power (IEEE802.3at) | Power: PoE+ (IEEE802.3at) or 24V DC, no AC adapter
Network Signal TowersPATLITE
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

PATLITE NHV Network Signal Tower with Voice Annunciator

Brand PATLITE·Network Signal Towers

Available part numbers (12)

NHV4-0N, NHV4-3N-RYG, NHV6-0N, NHV6-3N-RYG, NHV4-0DN, NHV4-3DN-RYG, NHV6-0DN, NHV6-3DN-RYG, NHV4-0DP, NHV4-3DP-RYG + 2 more — see full table ↓

How to order

Send the PATLITE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
PATLITE NHV Network Signal Tower with Voice Annunciator - reference 2
0 selected
RFQ List (0)
Product codeSpec
NHV4-0NSignal tower size: Φ40 (LR4 LED units) | LED tiers: 0 (body only, LED units sold separately) | Function: Standard (no digital I/O, no PoE) | Power: 24V DC, no AC adapter included
NHV4-3N-RYGSignal tower size: Φ40 (LR4 LED units) | LED tiers: 3 (Red, Amber, Green) | Function: Standard (no digital I/O, no PoE) | Power: 24V DC, no AC adapter included
NHV6-0NSignal tower size: Φ60 (LR6 LED units) | LED tiers: 0 (body only, LED units sold separately) | Function: Standard (no digital I/O, no PoE) | Power: 24V DC, no AC adapter included
NHV6-3N-RYGSignal tower size: Φ60 (LR6 LED units) | LED tiers: 3 (Red, Amber, Green) | Function: Standard (no digital I/O, no PoE) | Power: 24V DC, no AC adapter included
NHV4-0DNSignal tower size: Φ40 (LR4 LED units) | LED tiers: 0 (body only, LED units sold separately) | Function: Digital I/O: 4 inputs / 2 outputs | Power: 24V DC, no AC adapter included
NHV4-3DN-RYGSignal tower size: Φ40 (LR4 LED units) | LED tiers: 3 (Red, Amber, Green) | Function: Digital I/O: 4 inputs / 2 outputs | Power: 24V DC, no AC adapter included
NHV6-0DNSignal tower size: Φ60 (LR6 LED units) | LED tiers: 0 (body only, LED units sold separately) | Function: Digital I/O: 4 inputs / 2 outputs | Power: 24V DC, no AC adapter included
NHV6-3DN-RYGSignal tower size: Φ60 (LR6 LED units) | LED tiers: 3 (Red, Amber, Green) | Function: Digital I/O: 4 inputs / 2 outputs | Power: 24V DC, no AC adapter included
NHV4-0DPSignal tower size: Φ40 (LR4 LED units) | LED tiers: 0 (body only, LED units sold separately) | Function: Digital I/O: 4 inputs / 2 outputs + PoE power (IEEE802.3at) | Power: PoE+ (IEEE802.3at) or 24V DC, no AC adapter
NHV4-3DP-RYGSignal tower size: Φ40 (LR4 LED units) | LED tiers: 3 (Red, Amber, Green) | Function: Digital I/O: 4 inputs / 2 outputs + PoE power (IEEE802.3at) | Power: PoE+ (IEEE802.3at) or 24V DC, no AC adapter
NHV6-0DPSignal tower size: Φ60 (LR6 LED units) | LED tiers: 0 (body only, LED units sold separately) | Function: Digital I/O: 4 inputs / 2 outputs + PoE power (IEEE802.3at) | Power: PoE+ (IEEE802.3at) or 24V DC, no AC adapter
NHV6-3DP-RYGSignal tower size: Φ60 (LR6 LED units) | LED tiers: 3 (Red, Amber, Green) | Function: Digital I/O: 4 inputs / 2 outputs + PoE power (IEEE802.3at) | Power: PoE+ (IEEE802.3at) or 24V DC, no AC adapter
