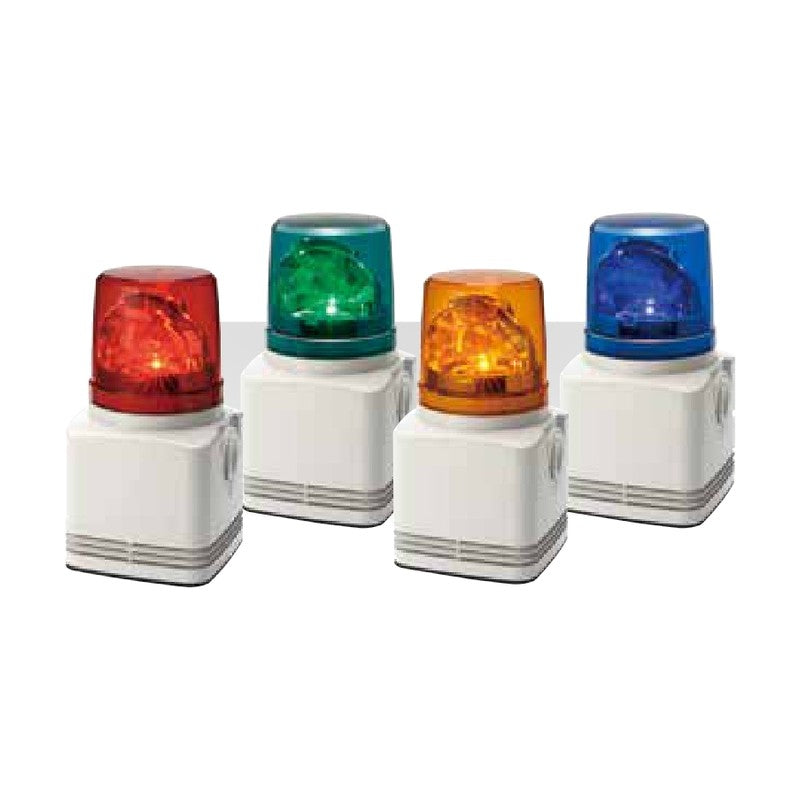

PATLITE RFV LED Rotating Beacon with MP3 Voice Annunciator, Φ100 mm

Φ100 mm LED rotating-pattern beacon on a housing with an MP3 voice annunciator (4/15 bit/binary inputs, 95 dB).

Key features

MP3 messages up to 63.5 s programmed via SD card. 95 dB, 115 flashes/min
IP54

Specifications

Size	Φ100 mm (115 mm square housing)
Supported Transistors	NPN
Sound File Format	MP3 (64 kbps, 44.1 kHz)
Volume Control	Rotating knob
Use	Indoor/Outdoor
Ambient Temperature	-10 to +50°C
Ingress Protection	IP54
Approvals	CE (DC type), UKCA (DC type), RoHS10

RFV-24F-R		Rated Voltage: 24V DC \| Luminous Color: Red \| Power Consumption: 18 W \| Mass: 1.0 kg
RFV-24F-Y		Rated Voltage: 24V DC \| Luminous Color: Amber \| Power Consumption: 18 W \| Mass: 1.0 kg
RFV-24F-G		Rated Voltage: 24V DC \| Luminous Color: Green \| Power Consumption: 18 W \| Mass: 1.0 kg
RFV-24F-B		Rated Voltage: 24V DC \| Luminous Color: Blue \| Power Consumption: 18 W \| Mass: 1.0 kg
RFV-100F-R		Rated Voltage: 100V AC \| Luminous Color: Red \| Power Consumption: 16 W \| Mass: 1.2 kg
RFV-100F-Y		Rated Voltage: 100V AC \| Luminous Color: Amber \| Power Consumption: 16 W \| Mass: 1.2 kg
RFV-100F-G		Rated Voltage: 100V AC \| Luminous Color: Green \| Power Consumption: 16 W \| Mass: 1.2 kg
RFV-100F-B		Rated Voltage: 100V AC \| Luminous Color: Blue \| Power Consumption: 16 W \| Mass: 1.2 kg
RFV-220F-R		Rated Voltage: 220V AC \| Luminous Color: Red \| Power Consumption: 16 W \| Mass: 1.2 kg
RFV-220F-Y		Rated Voltage: 220V AC \| Luminous Color: Amber \| Power Consumption: 16 W \| Mass: 1.2 kg
RFV-220F-G		Rated Voltage: 220V AC \| Luminous Color: Green \| Power Consumption: 16 W \| Mass: 1.2 kg
RFV-220F-B		Rated Voltage: 220V AC \| Luminous Color: Blue \| Power Consumption: 16 W \| Mass: 1.2 kg

Rotating BeaconsPATLITE

12 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

PATLITE RFV LED Rotating Beacon with MP3 Voice Annunciator, Φ100 mm

Brand PATLITE·Rotating Beacons

Available part numbers (12)

RFV-24F-R, RFV-24F-Y, RFV-24F-G, RFV-24F-B, RFV-100F-R, RFV-100F-Y, RFV-100F-G, RFV-100F-B, RFV-220F-R, RFV-220F-Y + 2 more — see full table ↓

How to order

Send the PATLITE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
