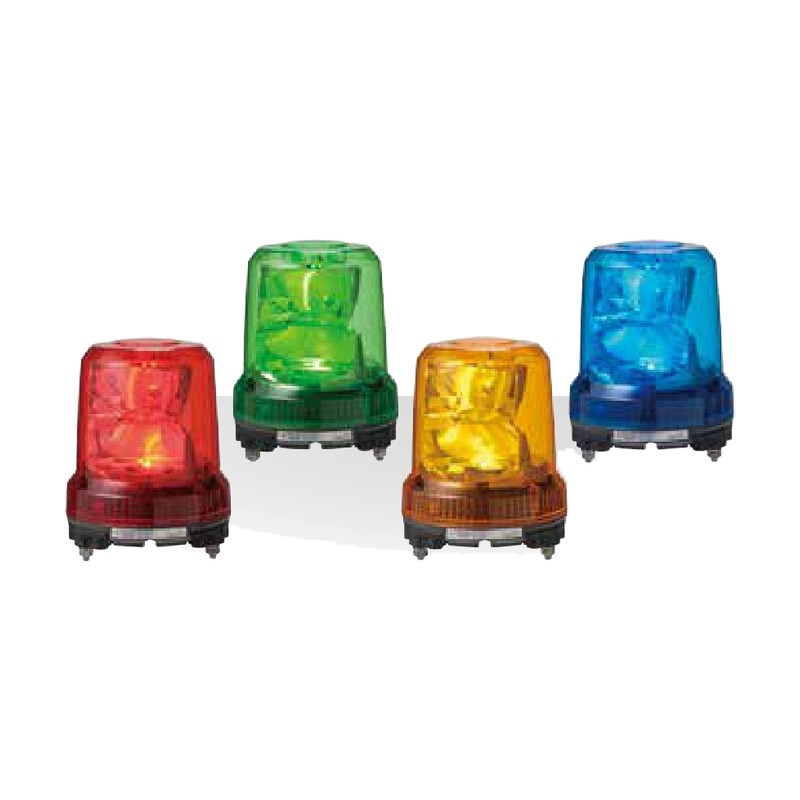

PATLITE RLR Rotating LED Beacon, Φ162 mm

Heavy-duty Φ162 mm motorized rotating LED beacon for indoor/outdoor use with high vibration resistance.

Key features

Motorized rotation with LED light source
Vibration resistance 110 m/s² (excluding M2)
IP66
Mounting pitch Φ140 or Φ120 (-P type)

Specifications

Size	Φ162 mm
Use	Indoor/Outdoor
Mounting Direction	Upright/Inverted
Ambient Temperature	-30 to +70°C (DC), -10 to +50°C (AC)
Ingress Protection	IP66
Approvals	CE, UKCA (excluding M2)

RLR-M1-R		Rated Voltage: 12V / 24V DC \| Mounting Pitch: Φ140 \| Luminous Color: Red \| Power Consumption: 7.6 W \| Mass: 1.0 kg
RLR-M1-Y		Rated Voltage: 12V / 24V DC \| Mounting Pitch: Φ140 \| Luminous Color: Amber \| Power Consumption: 7.6 W \| Mass: 1.0 kg
RLR-M1-G		Rated Voltage: 12V / 24V DC \| Mounting Pitch: Φ140 \| Luminous Color: Green \| Power Consumption: 7.6 W \| Mass: 1.0 kg
RLR-M1-B		Rated Voltage: 12V / 24V DC \| Mounting Pitch: Φ140 \| Luminous Color: Blue \| Power Consumption: 7.6 W \| Mass: 1.0 kg
RLR-04-R		Rated Voltage: 48V DC \| Mounting Pitch: Φ140 \| Luminous Color: Red \| Power Consumption: 8.2 W \| Mass: 1.0 kg
RLR-04-Y		Rated Voltage: 48V DC \| Mounting Pitch: Φ140 \| Luminous Color: Amber \| Power Consumption: 8.2 W \| Mass: 1.0 kg
RLR-04-G		Rated Voltage: 48V DC \| Mounting Pitch: Φ140 \| Luminous Color: Green \| Power Consumption: 8.2 W \| Mass: 1.0 kg
RLR-04-B		Rated Voltage: 48V DC \| Mounting Pitch: Φ140 \| Luminous Color: Blue \| Power Consumption: 8.2 W \| Mass: 1.0 kg
RLR-M2-R		Rated Voltage: 100-240V AC \| Mounting Pitch: Φ140 \| Luminous Color: Red \| Power Consumption: 7.8 W \| Mass: 1.06 kg
RLR-M2-Y		Rated Voltage: 100-240V AC \| Mounting Pitch: Φ140 \| Luminous Color: Amber \| Power Consumption: 7.8 W \| Mass: 1.06 kg
RLR-M2-G		Rated Voltage: 100-240V AC \| Mounting Pitch: Φ140 \| Luminous Color: Green \| Power Consumption: 7.8 W \| Mass: 1.06 kg
RLR-M2-B		Rated Voltage: 100-240V AC \| Mounting Pitch: Φ140 \| Luminous Color: Blue \| Power Consumption: 7.8 W \| Mass: 1.06 kg
RLR-M1-P-R		Rated Voltage: 12V / 24V DC \| Mounting Pitch: Φ120 \| Luminous Color: Red \| Power Consumption: 7.6 W \| Mass: 1.0 kg
RLR-M1-P-Y		Rated Voltage: 12V / 24V DC \| Mounting Pitch: Φ120 \| Luminous Color: Amber \| Power Consumption: 7.6 W \| Mass: 1.0 kg
RLR-M1-P-G		Rated Voltage: 12V / 24V DC \| Mounting Pitch: Φ120 \| Luminous Color: Green \| Power Consumption: 7.6 W \| Mass: 1.0 kg
RLR-M1-P-B		Rated Voltage: 12V / 24V DC \| Mounting Pitch: Φ120 \| Luminous Color: Blue \| Power Consumption: 7.6 W \| Mass: 1.0 kg
RLR-04-P-R		Rated Voltage: 48V DC \| Mounting Pitch: Φ120 \| Luminous Color: Red \| Power Consumption: 8.2 W \| Mass: 1.0 kg
RLR-04-P-Y		Rated Voltage: 48V DC \| Mounting Pitch: Φ120 \| Luminous Color: Amber \| Power Consumption: 8.2 W \| Mass: 1.0 kg
RLR-04-P-G		Rated Voltage: 48V DC \| Mounting Pitch: Φ120 \| Luminous Color: Green \| Power Consumption: 8.2 W \| Mass: 1.0 kg
RLR-04-P-B		Rated Voltage: 48V DC \| Mounting Pitch: Φ120 \| Luminous Color: Blue \| Power Consumption: 8.2 W \| Mass: 1.0 kg
RLR-M2-P-R		Rated Voltage: 100-240V AC \| Mounting Pitch: Φ120 \| Luminous Color: Red \| Power Consumption: 7.8 W \| Mass: 1.06 kg
RLR-M2-P-Y		Rated Voltage: 100-240V AC \| Mounting Pitch: Φ120 \| Luminous Color: Amber \| Power Consumption: 7.8 W \| Mass: 1.06 kg
RLR-M2-P-G		Rated Voltage: 100-240V AC \| Mounting Pitch: Φ120 \| Luminous Color: Green \| Power Consumption: 7.8 W \| Mass: 1.06 kg
RLR-M2-P-B		Rated Voltage: 100-240V AC \| Mounting Pitch: Φ120 \| Luminous Color: Blue \| Power Consumption: 7.8 W \| Mass: 1.06 kg

Rotating BeaconsPATLITE

24 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

PATLITE RLR Rotating LED Beacon, Φ162 mm

Brand PATLITE·Rotating Beacons

Available part numbers (24)

RLR-M1-R, RLR-M1-Y, RLR-M1-G, RLR-M1-B, RLR-04-R, RLR-04-Y, RLR-04-G, RLR-04-B, RLR-M2-R, RLR-M2-Y + 14 more — see full table ↓

How to order

Send the PATLITE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	RLR-M1-R	Rated Voltage: 12V / 24V DC \| Mounting Pitch: Φ140 \| Luminous Color: Red \| Power Consumption: 7.6 W \| Mass: 1.0 kg
	RLR-M1-Y	Rated Voltage: 12V / 24V DC \| Mounting Pitch: Φ140 \| Luminous Color: Amber \| Power Consumption: 7.6 W \| Mass: 1.0 kg
	RLR-M1-G	Rated Voltage: 12V / 24V DC \| Mounting Pitch: Φ140 \| Luminous Color: Green \| Power Consumption: 7.6 W \| Mass: 1.0 kg
	RLR-M1-B	Rated Voltage: 12V / 24V DC \| Mounting Pitch: Φ140 \| Luminous Color: Blue \| Power Consumption: 7.6 W \| Mass: 1.0 kg
	RLR-04-R	Rated Voltage: 48V DC \| Mounting Pitch: Φ140 \| Luminous Color: Red \| Power Consumption: 8.2 W \| Mass: 1.0 kg
	RLR-04-Y	Rated Voltage: 48V DC \| Mounting Pitch: Φ140 \| Luminous Color: Amber \| Power Consumption: 8.2 W \| Mass: 1.0 kg
	RLR-04-G	Rated Voltage: 48V DC \| Mounting Pitch: Φ140 \| Luminous Color: Green \| Power Consumption: 8.2 W \| Mass: 1.0 kg
	RLR-04-B	Rated Voltage: 48V DC \| Mounting Pitch: Φ140 \| Luminous Color: Blue \| Power Consumption: 8.2 W \| Mass: 1.0 kg
	RLR-M2-R	Rated Voltage: 100-240V AC \| Mounting Pitch: Φ140 \| Luminous Color: Red \| Power Consumption: 7.8 W \| Mass: 1.06 kg
	RLR-M2-Y	Rated Voltage: 100-240V AC \| Mounting Pitch: Φ140 \| Luminous Color: Amber \| Power Consumption: 7.8 W \| Mass: 1.06 kg
	RLR-M2-G	Rated Voltage: 100-240V AC \| Mounting Pitch: Φ140 \| Luminous Color: Green \| Power Consumption: 7.8 W \| Mass: 1.06 kg
	RLR-M2-B	Rated Voltage: 100-240V AC \| Mounting Pitch: Φ140 \| Luminous Color: Blue \| Power Consumption: 7.8 W \| Mass: 1.06 kg
	RLR-M1-P-R	Rated Voltage: 12V / 24V DC \| Mounting Pitch: Φ120 \| Luminous Color: Red \| Power Consumption: 7.6 W \| Mass: 1.0 kg
	RLR-M1-P-Y	Rated Voltage: 12V / 24V DC \| Mounting Pitch: Φ120 \| Luminous Color: Amber \| Power Consumption: 7.6 W \| Mass: 1.0 kg
	RLR-M1-P-G	Rated Voltage: 12V / 24V DC \| Mounting Pitch: Φ120 \| Luminous Color: Green \| Power Consumption: 7.6 W \| Mass: 1.0 kg
	RLR-M1-P-B	Rated Voltage: 12V / 24V DC \| Mounting Pitch: Φ120 \| Luminous Color: Blue \| Power Consumption: 7.6 W \| Mass: 1.0 kg
	RLR-04-P-R	Rated Voltage: 48V DC \| Mounting Pitch: Φ120 \| Luminous Color: Red \| Power Consumption: 8.2 W \| Mass: 1.0 kg
	RLR-04-P-Y	Rated Voltage: 48V DC \| Mounting Pitch: Φ120 \| Luminous Color: Amber \| Power Consumption: 8.2 W \| Mass: 1.0 kg
	RLR-04-P-G	Rated Voltage: 48V DC \| Mounting Pitch: Φ120 \| Luminous Color: Green \| Power Consumption: 8.2 W \| Mass: 1.0 kg
	RLR-04-P-B	Rated Voltage: 48V DC \| Mounting Pitch: Φ120 \| Luminous Color: Blue \| Power Consumption: 8.2 W \| Mass: 1.0 kg
	RLR-M2-P-R	Rated Voltage: 100-240V AC \| Mounting Pitch: Φ120 \| Luminous Color: Red \| Power Consumption: 7.8 W \| Mass: 1.06 kg
	RLR-M2-P-Y	Rated Voltage: 100-240V AC \| Mounting Pitch: Φ120 \| Luminous Color: Amber \| Power Consumption: 7.8 W \| Mass: 1.06 kg
	RLR-M2-P-G	Rated Voltage: 100-240V AC \| Mounting Pitch: Φ120 \| Luminous Color: Green \| Power Consumption: 7.8 W \| Mass: 1.06 kg
	RLR-M2-P-B	Rated Voltage: 100-240V AC \| Mounting Pitch: Φ120 \| Luminous Color: Blue \| Power Consumption: 7.8 W \| Mass: 1.06 kg
