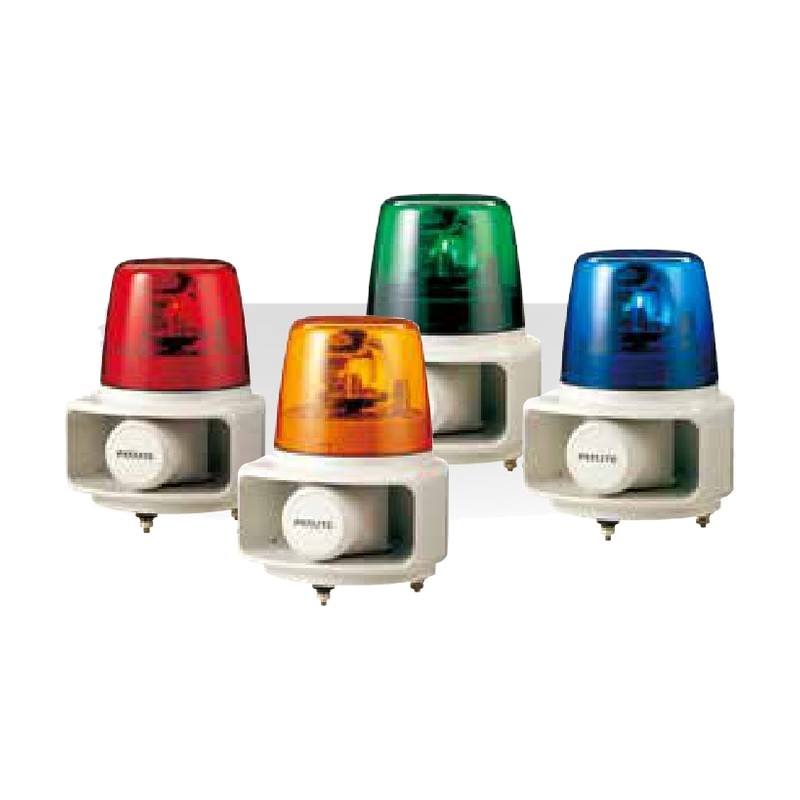

PATLITE RT-VF Rotating Beacon with MP3 Voice Annunciator Horn, Φ162 mm

PATLITE RT-VF Rotating Beacon with MP3 Voice Annunciator Horn, Φ162 mm

Φ162 mm motorized rotating beacon (halogen bulb) combined with a 105 dB MP3 voice annunciator horn with 4/15 bit/binary inputs.

Key features

  • MP3 messages up to 63 s programmed via SD card. 105 dB
  • UL certified 24V DC version (RT-24VFUL)
  • IP23

Specifications

Size Φ162 mm
Supported Transistors NPN
Sound File Format MP3 (64 kbps, 44.1 kHz)
Volume Control Rotating knob
Use Indoor/Outdoor
Ambient Temperature -10 to +50°C
Ingress Protection IP23
RT-24VF-R Rated Voltage: 24V DC | UL Certified: No | Luminous Color: Red | Bulb No.: 55 | Power Consumption: 24 W | Mass: 2.0 kg
RT-24VF-Y Rated Voltage: 24V DC | UL Certified: No | Luminous Color: Amber | Bulb No.: 55 | Power Consumption: 24 W | Mass: 2.0 kg
RT-24VF-G Rated Voltage: 24V DC | UL Certified: No | Luminous Color: Green | Bulb No.: 55 | Power Consumption: 24 W | Mass: 2.0 kg
RT-24VF-B Rated Voltage: 24V DC | UL Certified: No | Luminous Color: Blue | Bulb No.: 55 | Power Consumption: 24 W | Mass: 2.0 kg
RT-100VF-R Rated Voltage: 100V AC | UL Certified: No | Luminous Color: Red | Bulb No.: 54 | Power Consumption: 32 W | Mass: 2.4 kg
RT-100VF-Y Rated Voltage: 100V AC | UL Certified: No | Luminous Color: Amber | Bulb No.: 54 | Power Consumption: 32 W | Mass: 2.4 kg
RT-100VF-G Rated Voltage: 100V AC | UL Certified: No | Luminous Color: Green | Bulb No.: 54 | Power Consumption: 32 W | Mass: 2.4 kg
RT-100VF-B Rated Voltage: 100V AC | UL Certified: No | Luminous Color: Blue | Bulb No.: 54 | Power Consumption: 32 W | Mass: 2.4 kg
RT-200VF-R Rated Voltage: 200V AC | UL Certified: No | Luminous Color: Red | Bulb No.: 54 | Power Consumption: 30 W | Mass: 2.4 kg
RT-200VF-Y Rated Voltage: 200V AC | UL Certified: No | Luminous Color: Amber | Bulb No.: 54 | Power Consumption: 30 W | Mass: 2.4 kg
RT-200VF-G Rated Voltage: 200V AC | UL Certified: No | Luminous Color: Green | Bulb No.: 54 | Power Consumption: 30 W | Mass: 2.4 kg
RT-200VF-B Rated Voltage: 200V AC | UL Certified: No | Luminous Color: Blue | Bulb No.: 54 | Power Consumption: 30 W | Mass: 2.4 kg
RT-24VFUL-R Rated Voltage: 24V DC | UL Certified: Yes | Luminous Color: Red | Bulb No.: 55 | Power Consumption: 24 W | Mass: 2.0 kg
RT-24VFUL-Y Rated Voltage: 24V DC | UL Certified: Yes | Luminous Color: Amber | Bulb No.: 55 | Power Consumption: 24 W | Mass: 2.0 kg
RT-24VFUL-G Rated Voltage: 24V DC | UL Certified: Yes | Luminous Color: Green | Bulb No.: 55 | Power Consumption: 24 W | Mass: 2.0 kg
RT-24VFUL-B Rated Voltage: 24V DC | UL Certified: Yes | Luminous Color: Blue | Bulb No.: 55 | Power Consumption: 24 W | Mass: 2.0 kg
Rotating BeaconsPATLITE
16 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

PATLITE RT-VF Rotating Beacon with MP3 Voice Annunciator Horn, Φ162 mm

Brand PATLITE·Rotating Beacons

Available part numbers (16)

RT-24VF-R, RT-24VF-Y, RT-24VF-G, RT-24VF-B, RT-100VF-R, RT-100VF-Y, RT-100VF-G, RT-100VF-B, RT-200VF-R, RT-200VF-Y + 6 more — see full table ↓

How to order

Send the PATLITE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
RT-24VF-RRated Voltage: 24V DC | UL Certified: No | Luminous Color: Red | Bulb No.: 55 | Power Consumption: 24 W | Mass: 2.0 kg
RT-24VF-YRated Voltage: 24V DC | UL Certified: No | Luminous Color: Amber | Bulb No.: 55 | Power Consumption: 24 W | Mass: 2.0 kg
RT-24VF-GRated Voltage: 24V DC | UL Certified: No | Luminous Color: Green | Bulb No.: 55 | Power Consumption: 24 W | Mass: 2.0 kg
RT-24VF-BRated Voltage: 24V DC | UL Certified: No | Luminous Color: Blue | Bulb No.: 55 | Power Consumption: 24 W | Mass: 2.0 kg
RT-100VF-RRated Voltage: 100V AC | UL Certified: No | Luminous Color: Red | Bulb No.: 54 | Power Consumption: 32 W | Mass: 2.4 kg
RT-100VF-YRated Voltage: 100V AC | UL Certified: No | Luminous Color: Amber | Bulb No.: 54 | Power Consumption: 32 W | Mass: 2.4 kg
RT-100VF-GRated Voltage: 100V AC | UL Certified: No | Luminous Color: Green | Bulb No.: 54 | Power Consumption: 32 W | Mass: 2.4 kg
RT-100VF-BRated Voltage: 100V AC | UL Certified: No | Luminous Color: Blue | Bulb No.: 54 | Power Consumption: 32 W | Mass: 2.4 kg
RT-200VF-RRated Voltage: 200V AC | UL Certified: No | Luminous Color: Red | Bulb No.: 54 | Power Consumption: 30 W | Mass: 2.4 kg
RT-200VF-YRated Voltage: 200V AC | UL Certified: No | Luminous Color: Amber | Bulb No.: 54 | Power Consumption: 30 W | Mass: 2.4 kg
RT-200VF-GRated Voltage: 200V AC | UL Certified: No | Luminous Color: Green | Bulb No.: 54 | Power Consumption: 30 W | Mass: 2.4 kg
RT-200VF-BRated Voltage: 200V AC | UL Certified: No | Luminous Color: Blue | Bulb No.: 54 | Power Consumption: 30 W | Mass: 2.4 kg
RT-24VFUL-RRated Voltage: 24V DC | UL Certified: Yes | Luminous Color: Red | Bulb No.: 55 | Power Consumption: 24 W | Mass: 2.0 kg
RT-24VFUL-YRated Voltage: 24V DC | UL Certified: Yes | Luminous Color: Amber | Bulb No.: 55 | Power Consumption: 24 W | Mass: 2.0 kg
RT-24VFUL-GRated Voltage: 24V DC | UL Certified: Yes | Luminous Color: Green | Bulb No.: 55 | Power Consumption: 24 W | Mass: 2.0 kg
RT-24VFUL-BRated Voltage: 24V DC | UL Certified: Yes | Luminous Color: Blue | Bulb No.: 55 | Power Consumption: 24 W | Mass: 2.0 kg
