• PATLITE SK Rotating LED Beacon (SKS/SKH/SKP), Φ80/Φ100/Φ150 mm
1 1

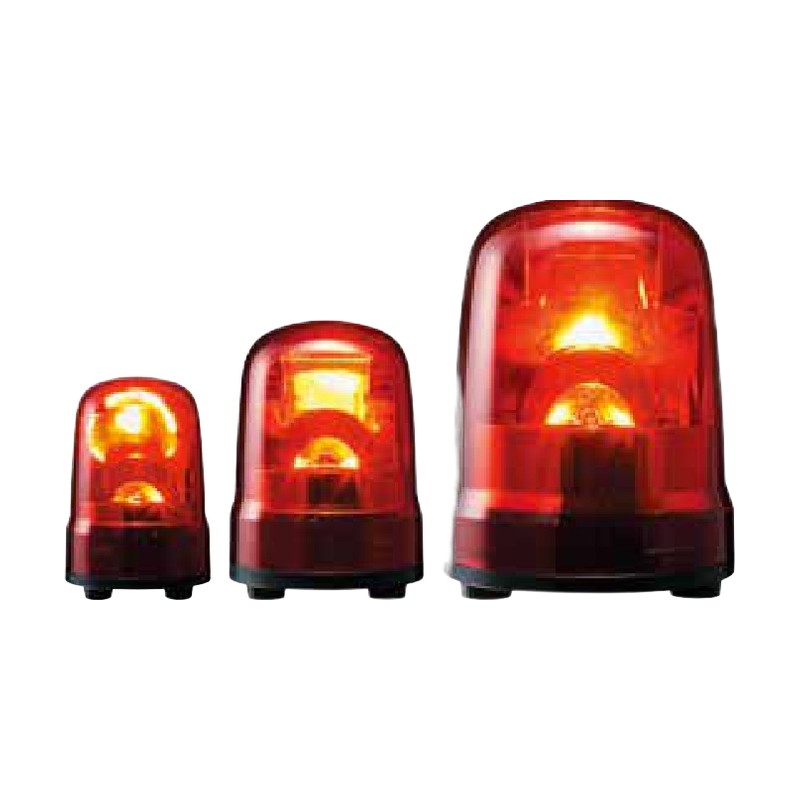

PATLITE SK Rotating LED Beacon (SKS/SKH/SKP), Φ80/Φ100/Φ150 mm

PATLITE SK Rotating LED Beacon (SKS/SKH/SKP), Φ80/Φ100/Φ150 mm

Motorized rotating LED beacon in Φ80 (SKS), Φ100 (SKH) and Φ150 mm (SKP) sizes, with optional buzzer on SKH.

Key features

  • Motorized rotation with LED light source
  • Indoor/outdoor use, IP23 (IP65 with optional rubber gasket on SKS/SKH)
  • Intermittent buzzer on SKH-...B models (88 dB)
  • Not for vehicle use

Specifications

Use Indoor/Outdoor
Ambient Temperature -10 to +50°C
Ingress Protection IP23
Approvals CE, UKCA, UL, FCC, ICES, KC, EAC, PSE
SKS-M1J-R Size: Φ80 | Rated Voltage: 12-24V DC | Wiring: Cable | Buzzer: No | Luminous Color: Red | Power Consumption: 2.9 W | Mass: 0.24 kg
SKS-M1J-Y Size: Φ80 | Rated Voltage: 12-24V DC | Wiring: Cable | Buzzer: No | Luminous Color: Amber | Power Consumption: 2.9 W | Mass: 0.24 kg
SKS-M1J-G Size: Φ80 | Rated Voltage: 12-24V DC | Wiring: Cable | Buzzer: No | Luminous Color: Green | Power Consumption: 2.9 W | Mass: 0.24 kg
SKS-M1J-B Size: Φ80 | Rated Voltage: 12-24V DC | Wiring: Cable | Buzzer: No | Luminous Color: Blue | Power Consumption: 2.9 W | Mass: 0.24 kg
SKS-M2J-R Size: Φ80 | Rated Voltage: 100-240V AC | Wiring: Cable | Buzzer: No | Luminous Color: Red | Power Consumption: 3.0 W | Mass: 0.27 kg
SKS-M2J-Y Size: Φ80 | Rated Voltage: 100-240V AC | Wiring: Cable | Buzzer: No | Luminous Color: Amber | Power Consumption: 3.0 W | Mass: 0.27 kg
SKS-M2J-G Size: Φ80 | Rated Voltage: 100-240V AC | Wiring: Cable | Buzzer: No | Luminous Color: Green | Power Consumption: 3.0 W | Mass: 0.27 kg
SKS-M2J-B Size: Φ80 | Rated Voltage: 100-240V AC | Wiring: Cable | Buzzer: No | Luminous Color: Blue | Power Consumption: 3.0 W | Mass: 0.27 kg
SKH-M1J-R Size: Φ100 | Rated Voltage: 12-24V DC | Wiring: Cable | Buzzer: No | Luminous Color: Red | Power Consumption: 2.9 W | Mass: 0.33 kg
SKH-M1J-Y Size: Φ100 | Rated Voltage: 12-24V DC | Wiring: Cable | Buzzer: No | Luminous Color: Amber | Power Consumption: 2.9 W | Mass: 0.33 kg
SKH-M1J-G Size: Φ100 | Rated Voltage: 12-24V DC | Wiring: Cable | Buzzer: No | Luminous Color: Green | Power Consumption: 2.9 W | Mass: 0.33 kg
SKH-M1J-B Size: Φ100 | Rated Voltage: 12-24V DC | Wiring: Cable | Buzzer: No | Luminous Color: Blue | Power Consumption: 2.9 W | Mass: 0.33 kg
SKH-M1JB-R Size: Φ100 | Rated Voltage: 12-24V DC | Wiring: Cable | Buzzer: Yes | Luminous Color: Red | Power Consumption: 3.6 W | Mass: 0.34 kg
SKH-M1JB-Y Size: Φ100 | Rated Voltage: 12-24V DC | Wiring: Cable | Buzzer: Yes | Luminous Color: Amber | Power Consumption: 3.6 W | Mass: 0.34 kg
SKH-M1JB-G Size: Φ100 | Rated Voltage: 12-24V DC | Wiring: Cable | Buzzer: Yes | Luminous Color: Green | Power Consumption: 3.6 W | Mass: 0.34 kg
SKH-M1JB-B Size: Φ100 | Rated Voltage: 12-24V DC | Wiring: Cable | Buzzer: Yes | Luminous Color: Blue | Power Consumption: 3.6 W | Mass: 0.34 kg
SKH-M1T-R Size: Φ100 | Rated Voltage: 12-24V DC | Wiring: Push-in terminal block | Buzzer: No | Luminous Color: Red | Power Consumption: 2.9 W | Mass: 0.30 kg
SKH-M1T-Y Size: Φ100 | Rated Voltage: 12-24V DC | Wiring: Push-in terminal block | Buzzer: No | Luminous Color: Amber | Power Consumption: 2.9 W | Mass: 0.30 kg
SKH-M1T-G Size: Φ100 | Rated Voltage: 12-24V DC | Wiring: Push-in terminal block | Buzzer: No | Luminous Color: Green | Power Consumption: 2.9 W | Mass: 0.30 kg
SKH-M1T-B Size: Φ100 | Rated Voltage: 12-24V DC | Wiring: Push-in terminal block | Buzzer: No | Luminous Color: Blue | Power Consumption: 2.9 W | Mass: 0.30 kg
SKH-M1TB-R Size: Φ100 | Rated Voltage: 12-24V DC | Wiring: Push-in terminal block | Buzzer: Yes | Luminous Color: Red | Power Consumption: 3.6 W | Mass: 0.31 kg
SKH-M1TB-Y Size: Φ100 | Rated Voltage: 12-24V DC | Wiring: Push-in terminal block | Buzzer: Yes | Luminous Color: Amber | Power Consumption: 3.6 W | Mass: 0.31 kg
SKH-M1TB-G Size: Φ100 | Rated Voltage: 12-24V DC | Wiring: Push-in terminal block | Buzzer: Yes | Luminous Color: Green | Power Consumption: 3.6 W | Mass: 0.31 kg
SKH-M1TB-B Size: Φ100 | Rated Voltage: 12-24V DC | Wiring: Push-in terminal block | Buzzer: Yes | Luminous Color: Blue | Power Consumption: 3.6 W | Mass: 0.31 kg
SKH-M2J-R Size: Φ100 | Rated Voltage: 100-240V AC | Wiring: Cable | Buzzer: No | Luminous Color: Red | Power Consumption: 3.0 W | Mass: 0.36 kg
SKH-M2J-Y Size: Φ100 | Rated Voltage: 100-240V AC | Wiring: Cable | Buzzer: No | Luminous Color: Amber | Power Consumption: 3.0 W | Mass: 0.36 kg
SKH-M2J-G Size: Φ100 | Rated Voltage: 100-240V AC | Wiring: Cable | Buzzer: No | Luminous Color: Green | Power Consumption: 3.0 W | Mass: 0.36 kg
SKH-M2J-B Size: Φ100 | Rated Voltage: 100-240V AC | Wiring: Cable | Buzzer: No | Luminous Color: Blue | Power Consumption: 3.0 W | Mass: 0.36 kg
SKH-M2JB-R Size: Φ100 | Rated Voltage: 100-240V AC | Wiring: Cable | Buzzer: Yes | Luminous Color: Red | Power Consumption: 3.3 W | Mass: 0.37 kg
SKH-M2JB-Y Size: Φ100 | Rated Voltage: 100-240V AC | Wiring: Cable | Buzzer: Yes | Luminous Color: Amber | Power Consumption: 3.3 W | Mass: 0.37 kg
SKH-M2JB-G Size: Φ100 | Rated Voltage: 100-240V AC | Wiring: Cable | Buzzer: Yes | Luminous Color: Green | Power Consumption: 3.3 W | Mass: 0.37 kg
SKH-M2JB-B Size: Φ100 | Rated Voltage: 100-240V AC | Wiring: Cable | Buzzer: Yes | Luminous Color: Blue | Power Consumption: 3.3 W | Mass: 0.37 kg
SKH-M2T-R Size: Φ100 | Rated Voltage: 100-240V AC | Wiring: Push-in terminal block | Buzzer: No | Luminous Color: Red | Power Consumption: 3.0 W | Mass: 0.33 kg
SKH-M2T-Y Size: Φ100 | Rated Voltage: 100-240V AC | Wiring: Push-in terminal block | Buzzer: No | Luminous Color: Amber | Power Consumption: 3.0 W | Mass: 0.33 kg
SKH-M2T-G Size: Φ100 | Rated Voltage: 100-240V AC | Wiring: Push-in terminal block | Buzzer: No | Luminous Color: Green | Power Consumption: 3.0 W | Mass: 0.33 kg
SKH-M2T-B Size: Φ100 | Rated Voltage: 100-240V AC | Wiring: Push-in terminal block | Buzzer: No | Luminous Color: Blue | Power Consumption: 3.0 W | Mass: 0.33 kg
SKH-M2TB-R Size: Φ100 | Rated Voltage: 100-240V AC | Wiring: Push-in terminal block | Buzzer: Yes | Luminous Color: Red | Power Consumption: 3.3 W | Mass: 0.34 kg
SKH-M2TB-Y Size: Φ100 | Rated Voltage: 100-240V AC | Wiring: Push-in terminal block | Buzzer: Yes | Luminous Color: Amber | Power Consumption: 3.3 W | Mass: 0.34 kg
SKH-M2TB-G Size: Φ100 | Rated Voltage: 100-240V AC | Wiring: Push-in terminal block | Buzzer: Yes | Luminous Color: Green | Power Consumption: 3.3 W | Mass: 0.34 kg
SKH-M2TB-B Size: Φ100 | Rated Voltage: 100-240V AC | Wiring: Push-in terminal block | Buzzer: Yes | Luminous Color: Blue | Power Consumption: 3.3 W | Mass: 0.34 kg
SKP-M1J-R Size: Φ150 | Rated Voltage: 12-24V DC | Wiring: Cable | Buzzer: No | Luminous Color: Red | Power Consumption: 2.9 W | Mass: 0.67 kg
SKP-M1J-Y Size: Φ150 | Rated Voltage: 12-24V DC | Wiring: Cable | Buzzer: No | Luminous Color: Amber | Power Consumption: 2.9 W | Mass: 0.67 kg
SKP-M1J-G Size: Φ150 | Rated Voltage: 12-24V DC | Wiring: Cable | Buzzer: No | Luminous Color: Green | Power Consumption: 2.9 W | Mass: 0.67 kg
SKP-M1J-B Size: Φ150 | Rated Voltage: 12-24V DC | Wiring: Cable | Buzzer: No | Luminous Color: Blue | Power Consumption: 2.9 W | Mass: 0.67 kg
SKP-M2J-R Size: Φ150 | Rated Voltage: 100-240V AC | Wiring: Cable | Buzzer: No | Luminous Color: Red | Power Consumption: 3.0 W | Mass: 0.70 kg
SKP-M2J-Y Size: Φ150 | Rated Voltage: 100-240V AC | Wiring: Cable | Buzzer: No | Luminous Color: Amber | Power Consumption: 3.0 W | Mass: 0.70 kg
SKP-M2J-G Size: Φ150 | Rated Voltage: 100-240V AC | Wiring: Cable | Buzzer: No | Luminous Color: Green | Power Consumption: 3.0 W | Mass: 0.70 kg
SKP-M2J-B Size: Φ150 | Rated Voltage: 100-240V AC | Wiring: Cable | Buzzer: No | Luminous Color: Blue | Power Consumption: 3.0 W | Mass: 0.70 kg
Rotating BeaconsPATLITE
48 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

PATLITE SK Rotating LED Beacon (SKS/SKH/SKP), Φ80/Φ100/Φ150 mm

Brand PATLITE·Rotating Beacons

Available part numbers (48)

SKS-M1J-R, SKS-M1J-Y, SKS-M1J-G, SKS-M1J-B, SKS-M2J-R, SKS-M2J-Y, SKS-M2J-G, SKS-M2J-B, SKH-M1J-R, SKH-M1J-Y + 38 more — see full table ↓

How to order

Send the PATLITE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SKS-M1J-RSize: Φ80 | Rated Voltage: 12-24V DC | Wiring: Cable | Buzzer: No | Luminous Color: Red | Power Consumption: 2.9 W | Mass: 0.24 kg
SKS-M1J-YSize: Φ80 | Rated Voltage: 12-24V DC | Wiring: Cable | Buzzer: No | Luminous Color: Amber | Power Consumption: 2.9 W | Mass: 0.24 kg
SKS-M1J-GSize: Φ80 | Rated Voltage: 12-24V DC | Wiring: Cable | Buzzer: No | Luminous Color: Green | Power Consumption: 2.9 W | Mass: 0.24 kg
SKS-M1J-BSize: Φ80 | Rated Voltage: 12-24V DC | Wiring: Cable | Buzzer: No | Luminous Color: Blue | Power Consumption: 2.9 W | Mass: 0.24 kg
SKS-M2J-RSize: Φ80 | Rated Voltage: 100-240V AC | Wiring: Cable | Buzzer: No | Luminous Color: Red | Power Consumption: 3.0 W | Mass: 0.27 kg
SKS-M2J-YSize: Φ80 | Rated Voltage: 100-240V AC | Wiring: Cable | Buzzer: No | Luminous Color: Amber | Power Consumption: 3.0 W | Mass: 0.27 kg
SKS-M2J-GSize: Φ80 | Rated Voltage: 100-240V AC | Wiring: Cable | Buzzer: No | Luminous Color: Green | Power Consumption: 3.0 W | Mass: 0.27 kg
SKS-M2J-BSize: Φ80 | Rated Voltage: 100-240V AC | Wiring: Cable | Buzzer: No | Luminous Color: Blue | Power Consumption: 3.0 W | Mass: 0.27 kg
SKH-M1J-RSize: Φ100 | Rated Voltage: 12-24V DC | Wiring: Cable | Buzzer: No | Luminous Color: Red | Power Consumption: 2.9 W | Mass: 0.33 kg
SKH-M1J-YSize: Φ100 | Rated Voltage: 12-24V DC | Wiring: Cable | Buzzer: No | Luminous Color: Amber | Power Consumption: 2.9 W | Mass: 0.33 kg
SKH-M1J-GSize: Φ100 | Rated Voltage: 12-24V DC | Wiring: Cable | Buzzer: No | Luminous Color: Green | Power Consumption: 2.9 W | Mass: 0.33 kg
SKH-M1J-BSize: Φ100 | Rated Voltage: 12-24V DC | Wiring: Cable | Buzzer: No | Luminous Color: Blue | Power Consumption: 2.9 W | Mass: 0.33 kg
SKH-M1JB-RSize: Φ100 | Rated Voltage: 12-24V DC | Wiring: Cable | Buzzer: Yes | Luminous Color: Red | Power Consumption: 3.6 W | Mass: 0.34 kg
SKH-M1JB-YSize: Φ100 | Rated Voltage: 12-24V DC | Wiring: Cable | Buzzer: Yes | Luminous Color: Amber | Power Consumption: 3.6 W | Mass: 0.34 kg
SKH-M1JB-GSize: Φ100 | Rated Voltage: 12-24V DC | Wiring: Cable | Buzzer: Yes | Luminous Color: Green | Power Consumption: 3.6 W | Mass: 0.34 kg
SKH-M1JB-BSize: Φ100 | Rated Voltage: 12-24V DC | Wiring: Cable | Buzzer: Yes | Luminous Color: Blue | Power Consumption: 3.6 W | Mass: 0.34 kg
SKH-M1T-RSize: Φ100 | Rated Voltage: 12-24V DC | Wiring: Push-in terminal block | Buzzer: No | Luminous Color: Red | Power Consumption: 2.9 W | Mass: 0.30 kg
SKH-M1T-YSize: Φ100 | Rated Voltage: 12-24V DC | Wiring: Push-in terminal block | Buzzer: No | Luminous Color: Amber | Power Consumption: 2.9 W | Mass: 0.30 kg
SKH-M1T-GSize: Φ100 | Rated Voltage: 12-24V DC | Wiring: Push-in terminal block | Buzzer: No | Luminous Color: Green | Power Consumption: 2.9 W | Mass: 0.30 kg
SKH-M1T-BSize: Φ100 | Rated Voltage: 12-24V DC | Wiring: Push-in terminal block | Buzzer: No | Luminous Color: Blue | Power Consumption: 2.9 W | Mass: 0.30 kg
SKH-M1TB-RSize: Φ100 | Rated Voltage: 12-24V DC | Wiring: Push-in terminal block | Buzzer: Yes | Luminous Color: Red | Power Consumption: 3.6 W | Mass: 0.31 kg
SKH-M1TB-YSize: Φ100 | Rated Voltage: 12-24V DC | Wiring: Push-in terminal block | Buzzer: Yes | Luminous Color: Amber | Power Consumption: 3.6 W | Mass: 0.31 kg
SKH-M1TB-GSize: Φ100 | Rated Voltage: 12-24V DC | Wiring: Push-in terminal block | Buzzer: Yes | Luminous Color: Green | Power Consumption: 3.6 W | Mass: 0.31 kg
SKH-M1TB-BSize: Φ100 | Rated Voltage: 12-24V DC | Wiring: Push-in terminal block | Buzzer: Yes | Luminous Color: Blue | Power Consumption: 3.6 W | Mass: 0.31 kg
SKH-M2J-RSize: Φ100 | Rated Voltage: 100-240V AC | Wiring: Cable | Buzzer: No | Luminous Color: Red | Power Consumption: 3.0 W | Mass: 0.36 kg
SKH-M2J-YSize: Φ100 | Rated Voltage: 100-240V AC | Wiring: Cable | Buzzer: No | Luminous Color: Amber | Power Consumption: 3.0 W | Mass: 0.36 kg
SKH-M2J-GSize: Φ100 | Rated Voltage: 100-240V AC | Wiring: Cable | Buzzer: No | Luminous Color: Green | Power Consumption: 3.0 W | Mass: 0.36 kg
SKH-M2J-BSize: Φ100 | Rated Voltage: 100-240V AC | Wiring: Cable | Buzzer: No | Luminous Color: Blue | Power Consumption: 3.0 W | Mass: 0.36 kg
SKH-M2JB-RSize: Φ100 | Rated Voltage: 100-240V AC | Wiring: Cable | Buzzer: Yes | Luminous Color: Red | Power Consumption: 3.3 W | Mass: 0.37 kg
SKH-M2JB-YSize: Φ100 | Rated Voltage: 100-240V AC | Wiring: Cable | Buzzer: Yes | Luminous Color: Amber | Power Consumption: 3.3 W | Mass: 0.37 kg
SKH-M2JB-GSize: Φ100 | Rated Voltage: 100-240V AC | Wiring: Cable | Buzzer: Yes | Luminous Color: Green | Power Consumption: 3.3 W | Mass: 0.37 kg
SKH-M2JB-BSize: Φ100 | Rated Voltage: 100-240V AC | Wiring: Cable | Buzzer: Yes | Luminous Color: Blue | Power Consumption: 3.3 W | Mass: 0.37 kg
SKH-M2T-RSize: Φ100 | Rated Voltage: 100-240V AC | Wiring: Push-in terminal block | Buzzer: No | Luminous Color: Red | Power Consumption: 3.0 W | Mass: 0.33 kg
SKH-M2T-YSize: Φ100 | Rated Voltage: 100-240V AC | Wiring: Push-in terminal block | Buzzer: No | Luminous Color: Amber | Power Consumption: 3.0 W | Mass: 0.33 kg
SKH-M2T-GSize: Φ100 | Rated Voltage: 100-240V AC | Wiring: Push-in terminal block | Buzzer: No | Luminous Color: Green | Power Consumption: 3.0 W | Mass: 0.33 kg
SKH-M2T-BSize: Φ100 | Rated Voltage: 100-240V AC | Wiring: Push-in terminal block | Buzzer: No | Luminous Color: Blue | Power Consumption: 3.0 W | Mass: 0.33 kg
SKH-M2TB-RSize: Φ100 | Rated Voltage: 100-240V AC | Wiring: Push-in terminal block | Buzzer: Yes | Luminous Color: Red | Power Consumption: 3.3 W | Mass: 0.34 kg
SKH-M2TB-YSize: Φ100 | Rated Voltage: 100-240V AC | Wiring: Push-in terminal block | Buzzer: Yes | Luminous Color: Amber | Power Consumption: 3.3 W | Mass: 0.34 kg
SKH-M2TB-GSize: Φ100 | Rated Voltage: 100-240V AC | Wiring: Push-in terminal block | Buzzer: Yes | Luminous Color: Green | Power Consumption: 3.3 W | Mass: 0.34 kg
SKH-M2TB-BSize: Φ100 | Rated Voltage: 100-240V AC | Wiring: Push-in terminal block | Buzzer: Yes | Luminous Color: Blue | Power Consumption: 3.3 W | Mass: 0.34 kg
SKP-M1J-RSize: Φ150 | Rated Voltage: 12-24V DC | Wiring: Cable | Buzzer: No | Luminous Color: Red | Power Consumption: 2.9 W | Mass: 0.67 kg
SKP-M1J-YSize: Φ150 | Rated Voltage: 12-24V DC | Wiring: Cable | Buzzer: No | Luminous Color: Amber | Power Consumption: 2.9 W | Mass: 0.67 kg
SKP-M1J-GSize: Φ150 | Rated Voltage: 12-24V DC | Wiring: Cable | Buzzer: No | Luminous Color: Green | Power Consumption: 2.9 W | Mass: 0.67 kg
SKP-M1J-BSize: Φ150 | Rated Voltage: 12-24V DC | Wiring: Cable | Buzzer: No | Luminous Color: Blue | Power Consumption: 2.9 W | Mass: 0.67 kg
SKP-M2J-RSize: Φ150 | Rated Voltage: 100-240V AC | Wiring: Cable | Buzzer: No | Luminous Color: Red | Power Consumption: 3.0 W | Mass: 0.70 kg
SKP-M2J-YSize: Φ150 | Rated Voltage: 100-240V AC | Wiring: Cable | Buzzer: No | Luminous Color: Amber | Power Consumption: 3.0 W | Mass: 0.70 kg
SKP-M2J-GSize: Φ150 | Rated Voltage: 100-240V AC | Wiring: Cable | Buzzer: No | Luminous Color: Green | Power Consumption: 3.0 W | Mass: 0.70 kg
SKP-M2J-BSize: Φ150 | Rated Voltage: 100-240V AC | Wiring: Cable | Buzzer: No | Luminous Color: Blue | Power Consumption: 3.0 W | Mass: 0.70 kg
