• PATLITE SKH-EA Small Rotating Beacon, Φ100 mm (Halogen Bulb)
1 1

PATLITE SKH-EA Small Rotating Beacon, Φ100 mm (Halogen Bulb)

PATLITE SKH-EA Small Rotating Beacon, Φ100 mm (Halogen Bulb)

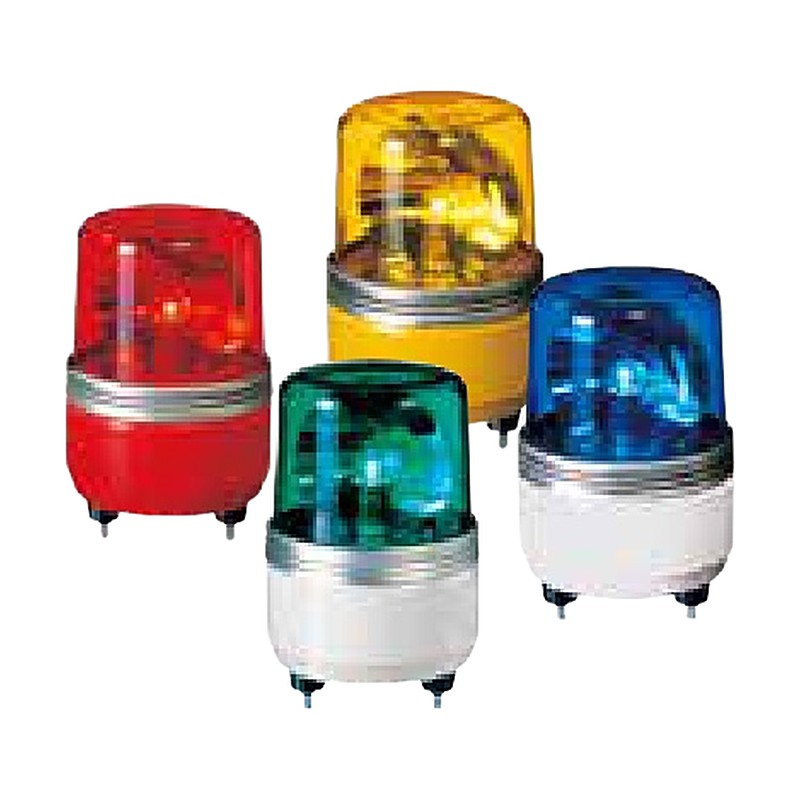

Small Φ100 mm motorized rotating beacon with halogen bulb for indoor/outdoor use.

Key features

  • Motorized rotation
  • Halogen bulb, cap BA15S (replacement bulbs available)
  • IP23

Specifications

Size Φ100 mm
Use Indoor/Outdoor
Ambient Temperature -30 to +80°C (DC), -30 to +60°C (AC)
Ingress Protection IP23
Approvals CE, UKCA (12/24V DC only)
SKH-12EA-R Rated Voltage: 12V DC | Bulb: 12V 10W (bulb No. 9) | Luminous Color: Red | Power Consumption: 9.6 W | Mass: 0.4 kg
SKH-12EA-Y Rated Voltage: 12V DC | Bulb: 12V 10W (bulb No. 9) | Luminous Color: Amber | Power Consumption: 9.6 W | Mass: 0.4 kg
SKH-12EA-G Rated Voltage: 12V DC | Bulb: 12V 10W (bulb No. 9) | Luminous Color: Green | Power Consumption: 9.6 W | Mass: 0.4 kg
SKH-12EA-B Rated Voltage: 12V DC | Bulb: 12V 10W (bulb No. 9) | Luminous Color: Blue | Power Consumption: 9.6 W | Mass: 0.4 kg
SKH-24EA-R Rated Voltage: 24V DC | Bulb: 24V 10W (bulb No. 10) | Luminous Color: Red | Power Consumption: 12.0 W | Mass: 0.4 kg
SKH-24EA-Y Rated Voltage: 24V DC | Bulb: 24V 10W (bulb No. 10) | Luminous Color: Amber | Power Consumption: 12.0 W | Mass: 0.4 kg
SKH-24EA-G Rated Voltage: 24V DC | Bulb: 24V 10W (bulb No. 10) | Luminous Color: Green | Power Consumption: 12.0 W | Mass: 0.4 kg
SKH-24EA-B Rated Voltage: 24V DC | Bulb: 24V 10W (bulb No. 10) | Luminous Color: Blue | Power Consumption: 12.0 W | Mass: 0.4 kg
SKH-100EA-R Rated Voltage: 100V AC | Bulb: 12V 5W (bulb No. 12) | Luminous Color: Red | Power Consumption: 6.2 W | Mass: 0.6 kg
SKH-100EA-Y Rated Voltage: 100V AC | Bulb: 12V 5W (bulb No. 12) | Luminous Color: Amber | Power Consumption: 6.2 W | Mass: 0.6 kg
SKH-100EA-G Rated Voltage: 100V AC | Bulb: 12V 5W (bulb No. 12) | Luminous Color: Green | Power Consumption: 6.2 W | Mass: 0.6 kg
SKH-100EA-B Rated Voltage: 100V AC | Bulb: 12V 5W (bulb No. 12) | Luminous Color: Blue | Power Consumption: 6.2 W | Mass: 0.6 kg
SKH-200EA-R Rated Voltage: 200V AC | Bulb: 12V 5W (bulb No. 12) | Luminous Color: Red | Power Consumption: 6.5 W | Mass: 0.6 kg
SKH-200EA-Y Rated Voltage: 200V AC | Bulb: 12V 5W (bulb No. 12) | Luminous Color: Amber | Power Consumption: 6.5 W | Mass: 0.6 kg
SKH-200EA-G Rated Voltage: 200V AC | Bulb: 12V 5W (bulb No. 12) | Luminous Color: Green | Power Consumption: 6.5 W | Mass: 0.6 kg
SKH-200EA-B Rated Voltage: 200V AC | Bulb: 12V 5W (bulb No. 12) | Luminous Color: Blue | Power Consumption: 6.5 W | Mass: 0.6 kg
Rotating BeaconsPATLITE
16 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

PATLITE SKH-EA Small Rotating Beacon, Φ100 mm (Halogen Bulb)

Brand PATLITE·Rotating Beacons

Available part numbers (16)

SKH-12EA-R, SKH-12EA-Y, SKH-12EA-G, SKH-12EA-B, SKH-24EA-R, SKH-24EA-Y, SKH-24EA-G, SKH-24EA-B, SKH-100EA-R, SKH-100EA-Y + 6 more — see full table ↓

How to order

Send the PATLITE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SKH-12EA-RRated Voltage: 12V DC | Bulb: 12V 10W (bulb No. 9) | Luminous Color: Red | Power Consumption: 9.6 W | Mass: 0.4 kg
SKH-12EA-YRated Voltage: 12V DC | Bulb: 12V 10W (bulb No. 9) | Luminous Color: Amber | Power Consumption: 9.6 W | Mass: 0.4 kg
SKH-12EA-GRated Voltage: 12V DC | Bulb: 12V 10W (bulb No. 9) | Luminous Color: Green | Power Consumption: 9.6 W | Mass: 0.4 kg
SKH-12EA-BRated Voltage: 12V DC | Bulb: 12V 10W (bulb No. 9) | Luminous Color: Blue | Power Consumption: 9.6 W | Mass: 0.4 kg
SKH-24EA-RRated Voltage: 24V DC | Bulb: 24V 10W (bulb No. 10) | Luminous Color: Red | Power Consumption: 12.0 W | Mass: 0.4 kg
SKH-24EA-YRated Voltage: 24V DC | Bulb: 24V 10W (bulb No. 10) | Luminous Color: Amber | Power Consumption: 12.0 W | Mass: 0.4 kg
SKH-24EA-GRated Voltage: 24V DC | Bulb: 24V 10W (bulb No. 10) | Luminous Color: Green | Power Consumption: 12.0 W | Mass: 0.4 kg
SKH-24EA-BRated Voltage: 24V DC | Bulb: 24V 10W (bulb No. 10) | Luminous Color: Blue | Power Consumption: 12.0 W | Mass: 0.4 kg
SKH-100EA-RRated Voltage: 100V AC | Bulb: 12V 5W (bulb No. 12) | Luminous Color: Red | Power Consumption: 6.2 W | Mass: 0.6 kg
SKH-100EA-YRated Voltage: 100V AC | Bulb: 12V 5W (bulb No. 12) | Luminous Color: Amber | Power Consumption: 6.2 W | Mass: 0.6 kg
SKH-100EA-GRated Voltage: 100V AC | Bulb: 12V 5W (bulb No. 12) | Luminous Color: Green | Power Consumption: 6.2 W | Mass: 0.6 kg
SKH-100EA-BRated Voltage: 100V AC | Bulb: 12V 5W (bulb No. 12) | Luminous Color: Blue | Power Consumption: 6.2 W | Mass: 0.6 kg
SKH-200EA-RRated Voltage: 200V AC | Bulb: 12V 5W (bulb No. 12) | Luminous Color: Red | Power Consumption: 6.5 W | Mass: 0.6 kg
SKH-200EA-YRated Voltage: 200V AC | Bulb: 12V 5W (bulb No. 12) | Luminous Color: Amber | Power Consumption: 6.5 W | Mass: 0.6 kg
SKH-200EA-GRated Voltage: 200V AC | Bulb: 12V 5W (bulb No. 12) | Luminous Color: Green | Power Consumption: 6.5 W | Mass: 0.6 kg
SKH-200EA-BRated Voltage: 200V AC | Bulb: 12V 5W (bulb No. 12) | Luminous Color: Blue | Power Consumption: 6.5 W | Mass: 0.6 kg
