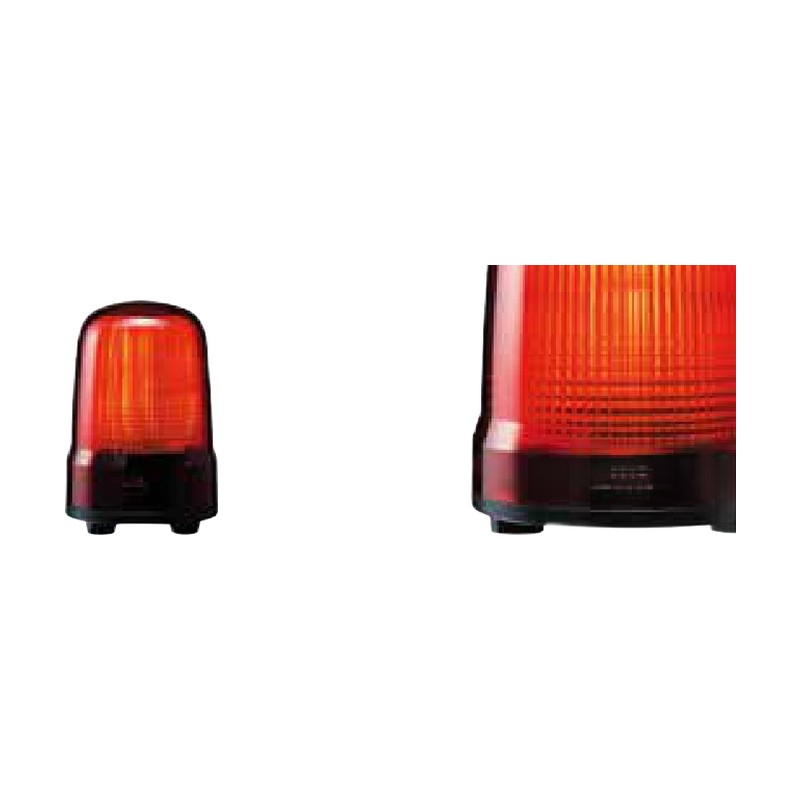

• PATLITE SL Signal Beacon, Φ80/Φ100/Φ150 mm
1 1

PATLITE SL Signal Beacon, Φ80/Φ100/Φ150 mm

PATLITE SL Signal Beacon, Φ80/Φ100/Φ150 mm

LED signal beacon in Φ80, Φ100 and Φ150 mm sizes with selectable continuous, blinking and triple-flash light patterns.

Key features

  • Light patterns selected by CH1/CH2 wiring: continuous, blinking, triple-flash
  • Indoor/outdoor use; IP23 (JN type), IP66 (KT type), NEMA 4X/13
  • Optional rubber gasket raises IP23 to IP65 (SL08, SL10)
  • Single-tone 88 dB buzzer on KTB models (SL08: 86 dB)
  • Not for vehicle use

Specifications

Supported Transistors NPN
Alarm Sound Single tone
Use Indoor/Outdoor
Mounting Direction Upright/Sideways/Inverted (sideways and inverted indoor only)
Ambient Temperature -20 to +50°C
Approvals CE, UKCA, UL, FCC, ICES, KC, EAC, PSE
SL08-M1JN-R Size: Φ80 | Rated Voltage: 12-24V DC | Wiring/Mounting: Cable, 3-point bolt mounting | Buzzer: No | Luminous Color: Red | Power Consumption: 2.9 W | Mass: 0.25 kg
SL08-M1JN-Y Size: Φ80 | Rated Voltage: 12-24V DC | Wiring/Mounting: Cable, 3-point bolt mounting | Buzzer: No | Luminous Color: Amber | Power Consumption: 2.9 W | Mass: 0.25 kg
SL08-M1JN-G Size: Φ80 | Rated Voltage: 12-24V DC | Wiring/Mounting: Cable, 3-point bolt mounting | Buzzer: No | Luminous Color: Green | Power Consumption: 2.9 W | Mass: 0.25 kg
SL08-M1JN-B Size: Φ80 | Rated Voltage: 12-24V DC | Wiring/Mounting: Cable, 3-point bolt mounting | Buzzer: No | Luminous Color: Blue | Power Consumption: 2.9 W | Mass: 0.25 kg
SL08-M1KTN-R Size: Φ80 | Rated Voltage: 12-24V DC | Wiring/Mounting: Push-in terminal block, 2-point hole mounting | Buzzer: No | Luminous Color: Red | Power Consumption: 2.9 W | Mass: 0.23 kg
SL08-M1KTN-Y Size: Φ80 | Rated Voltage: 12-24V DC | Wiring/Mounting: Push-in terminal block, 2-point hole mounting | Buzzer: No | Luminous Color: Amber | Power Consumption: 2.9 W | Mass: 0.23 kg
SL08-M1KTN-G Size: Φ80 | Rated Voltage: 12-24V DC | Wiring/Mounting: Push-in terminal block, 2-point hole mounting | Buzzer: No | Luminous Color: Green | Power Consumption: 2.9 W | Mass: 0.23 kg
SL08-M1KTN-B Size: Φ80 | Rated Voltage: 12-24V DC | Wiring/Mounting: Push-in terminal block, 2-point hole mounting | Buzzer: No | Luminous Color: Blue | Power Consumption: 2.9 W | Mass: 0.23 kg
SL08-M1KTB-R Size: Φ80 | Rated Voltage: 12-24V DC | Wiring/Mounting: Push-in terminal block, 2-point hole mounting | Buzzer: Yes | Luminous Color: Red | Power Consumption: 3.4 W | Mass: 0.24 kg
SL08-M1KTB-Y Size: Φ80 | Rated Voltage: 12-24V DC | Wiring/Mounting: Push-in terminal block, 2-point hole mounting | Buzzer: Yes | Luminous Color: Amber | Power Consumption: 3.4 W | Mass: 0.24 kg
SL08-M1KTB-G Size: Φ80 | Rated Voltage: 12-24V DC | Wiring/Mounting: Push-in terminal block, 2-point hole mounting | Buzzer: Yes | Luminous Color: Green | Power Consumption: 3.4 W | Mass: 0.24 kg
SL08-M1KTB-B Size: Φ80 | Rated Voltage: 12-24V DC | Wiring/Mounting: Push-in terminal block, 2-point hole mounting | Buzzer: Yes | Luminous Color: Blue | Power Consumption: 3.4 W | Mass: 0.24 kg
SL08-M2JN-R Size: Φ80 | Rated Voltage: 100-240V AC | Wiring/Mounting: Cable, 3-point bolt mounting | Buzzer: No | Luminous Color: Red | Power Consumption: 3.1 W | Mass: 0.28 kg
SL08-M2JN-Y Size: Φ80 | Rated Voltage: 100-240V AC | Wiring/Mounting: Cable, 3-point bolt mounting | Buzzer: No | Luminous Color: Amber | Power Consumption: 3.1 W | Mass: 0.28 kg
SL08-M2JN-G Size: Φ80 | Rated Voltage: 100-240V AC | Wiring/Mounting: Cable, 3-point bolt mounting | Buzzer: No | Luminous Color: Green | Power Consumption: 3.1 W | Mass: 0.28 kg
SL08-M2JN-B Size: Φ80 | Rated Voltage: 100-240V AC | Wiring/Mounting: Cable, 3-point bolt mounting | Buzzer: No | Luminous Color: Blue | Power Consumption: 3.1 W | Mass: 0.28 kg
SL08-M2KTN-R Size: Φ80 | Rated Voltage: 100-240V AC | Wiring/Mounting: Push-in terminal block, 2-point hole mounting | Buzzer: No | Luminous Color: Red | Power Consumption: 3.1 W | Mass: 0.26 kg
SL08-M2KTN-Y Size: Φ80 | Rated Voltage: 100-240V AC | Wiring/Mounting: Push-in terminal block, 2-point hole mounting | Buzzer: No | Luminous Color: Amber | Power Consumption: 3.1 W | Mass: 0.26 kg
SL08-M2KTN-G Size: Φ80 | Rated Voltage: 100-240V AC | Wiring/Mounting: Push-in terminal block, 2-point hole mounting | Buzzer: No | Luminous Color: Green | Power Consumption: 3.1 W | Mass: 0.26 kg
SL08-M2KTN-B Size: Φ80 | Rated Voltage: 100-240V AC | Wiring/Mounting: Push-in terminal block, 2-point hole mounting | Buzzer: No | Luminous Color: Blue | Power Consumption: 3.1 W | Mass: 0.26 kg
SL08-M2KTB-R Size: Φ80 | Rated Voltage: 100-240V AC | Wiring/Mounting: Push-in terminal block, 2-point hole mounting | Buzzer: Yes | Luminous Color: Red | Power Consumption: 3.5 W | Mass: 0.27 kg
SL08-M2KTB-Y Size: Φ80 | Rated Voltage: 100-240V AC | Wiring/Mounting: Push-in terminal block, 2-point hole mounting | Buzzer: Yes | Luminous Color: Amber | Power Consumption: 3.5 W | Mass: 0.27 kg
SL08-M2KTB-G Size: Φ80 | Rated Voltage: 100-240V AC | Wiring/Mounting: Push-in terminal block, 2-point hole mounting | Buzzer: Yes | Luminous Color: Green | Power Consumption: 3.5 W | Mass: 0.27 kg
SL08-M2KTB-B Size: Φ80 | Rated Voltage: 100-240V AC | Wiring/Mounting: Push-in terminal block, 2-point hole mounting | Buzzer: Yes | Luminous Color: Blue | Power Consumption: 3.5 W | Mass: 0.27 kg
SL10-M1JN-R Size: Φ100 | Rated Voltage: 12-24V DC | Wiring/Mounting: Cable, 3-point bolt mounting | Buzzer: No | Luminous Color: Red | Power Consumption: 2.9 W | Mass: 0.37 kg
SL10-M1JN-Y Size: Φ100 | Rated Voltage: 12-24V DC | Wiring/Mounting: Cable, 3-point bolt mounting | Buzzer: No | Luminous Color: Amber | Power Consumption: 2.9 W | Mass: 0.37 kg
SL10-M1JN-G Size: Φ100 | Rated Voltage: 12-24V DC | Wiring/Mounting: Cable, 3-point bolt mounting | Buzzer: No | Luminous Color: Green | Power Consumption: 2.9 W | Mass: 0.37 kg
SL10-M1JN-B Size: Φ100 | Rated Voltage: 12-24V DC | Wiring/Mounting: Cable, 3-point bolt mounting | Buzzer: No | Luminous Color: Blue | Power Consumption: 2.9 W | Mass: 0.37 kg
SL10-M1KTN-R Size: Φ100 | Rated Voltage: 12-24V DC | Wiring/Mounting: Push-in terminal block, 2-point hole mounting | Buzzer: No | Luminous Color: Red | Power Consumption: 2.9 W | Mass: 0.36 kg
SL10-M1KTN-Y Size: Φ100 | Rated Voltage: 12-24V DC | Wiring/Mounting: Push-in terminal block, 2-point hole mounting | Buzzer: No | Luminous Color: Amber | Power Consumption: 2.9 W | Mass: 0.36 kg
SL10-M1KTN-G Size: Φ100 | Rated Voltage: 12-24V DC | Wiring/Mounting: Push-in terminal block, 2-point hole mounting | Buzzer: No | Luminous Color: Green | Power Consumption: 2.9 W | Mass: 0.36 kg
SL10-M1KTN-B Size: Φ100 | Rated Voltage: 12-24V DC | Wiring/Mounting: Push-in terminal block, 2-point hole mounting | Buzzer: No | Luminous Color: Blue | Power Consumption: 2.9 W | Mass: 0.36 kg
SL10-M1KTB-R Size: Φ100 | Rated Voltage: 12-24V DC | Wiring/Mounting: Push-in terminal block, 2-point hole mounting | Buzzer: Yes | Luminous Color: Red | Power Consumption: 3.4 W | Mass: 0.37 kg
SL10-M1KTB-Y Size: Φ100 | Rated Voltage: 12-24V DC | Wiring/Mounting: Push-in terminal block, 2-point hole mounting | Buzzer: Yes | Luminous Color: Amber | Power Consumption: 3.4 W | Mass: 0.37 kg
SL10-M1KTB-G Size: Φ100 | Rated Voltage: 12-24V DC | Wiring/Mounting: Push-in terminal block, 2-point hole mounting | Buzzer: Yes | Luminous Color: Green | Power Consumption: 3.4 W | Mass: 0.37 kg
SL10-M1KTB-B Size: Φ100 | Rated Voltage: 12-24V DC | Wiring/Mounting: Push-in terminal block, 2-point hole mounting | Buzzer: Yes | Luminous Color: Blue | Power Consumption: 3.4 W | Mass: 0.37 kg
SL10-M2JN-R Size: Φ100 | Rated Voltage: 100-240V AC | Wiring/Mounting: Cable, 3-point bolt mounting | Buzzer: No | Luminous Color: Red | Power Consumption: 3.1 W | Mass: 0.40 kg
SL10-M2JN-Y Size: Φ100 | Rated Voltage: 100-240V AC | Wiring/Mounting: Cable, 3-point bolt mounting | Buzzer: No | Luminous Color: Amber | Power Consumption: 3.1 W | Mass: 0.40 kg
SL10-M2JN-G Size: Φ100 | Rated Voltage: 100-240V AC | Wiring/Mounting: Cable, 3-point bolt mounting | Buzzer: No | Luminous Color: Green | Power Consumption: 3.1 W | Mass: 0.40 kg
SL10-M2JN-B Size: Φ100 | Rated Voltage: 100-240V AC | Wiring/Mounting: Cable, 3-point bolt mounting | Buzzer: No | Luminous Color: Blue | Power Consumption: 3.1 W | Mass: 0.40 kg
SL10-M2KTN-R Size: Φ100 | Rated Voltage: 100-240V AC | Wiring/Mounting: Push-in terminal block, 2-point hole mounting | Buzzer: No | Luminous Color: Red | Power Consumption: 3.1 W | Mass: 0.38 kg
SL10-M2KTN-Y Size: Φ100 | Rated Voltage: 100-240V AC | Wiring/Mounting: Push-in terminal block, 2-point hole mounting | Buzzer: No | Luminous Color: Amber | Power Consumption: 3.1 W | Mass: 0.38 kg
SL10-M2KTN-G Size: Φ100 | Rated Voltage: 100-240V AC | Wiring/Mounting: Push-in terminal block, 2-point hole mounting | Buzzer: No | Luminous Color: Green | Power Consumption: 3.1 W | Mass: 0.38 kg
SL10-M2KTN-B Size: Φ100 | Rated Voltage: 100-240V AC | Wiring/Mounting: Push-in terminal block, 2-point hole mounting | Buzzer: No | Luminous Color: Blue | Power Consumption: 3.1 W | Mass: 0.38 kg
SL10-M2KTB-R Size: Φ100 | Rated Voltage: 100-240V AC | Wiring/Mounting: Push-in terminal block, 2-point hole mounting | Buzzer: Yes | Luminous Color: Red | Power Consumption: 3.5 W | Mass: 0.40 kg
SL10-M2KTB-Y Size: Φ100 | Rated Voltage: 100-240V AC | Wiring/Mounting: Push-in terminal block, 2-point hole mounting | Buzzer: Yes | Luminous Color: Amber | Power Consumption: 3.5 W | Mass: 0.40 kg
SL10-M2KTB-G Size: Φ100 | Rated Voltage: 100-240V AC | Wiring/Mounting: Push-in terminal block, 2-point hole mounting | Buzzer: Yes | Luminous Color: Green | Power Consumption: 3.5 W | Mass: 0.40 kg
SL10-M2KTB-B Size: Φ100 | Rated Voltage: 100-240V AC | Wiring/Mounting: Push-in terminal block, 2-point hole mounting | Buzzer: Yes | Luminous Color: Blue | Power Consumption: 3.5 W | Mass: 0.40 kg
SL15-M1JN-R Size: Φ150 | Rated Voltage: 12-24V DC | Wiring/Mounting: Cable, 3-point bolt mounting | Buzzer: No | Luminous Color: Red | Power Consumption: 4.8 W | Mass: 0.86 kg
SL15-M1JN-Y Size: Φ150 | Rated Voltage: 12-24V DC | Wiring/Mounting: Cable, 3-point bolt mounting | Buzzer: No | Luminous Color: Amber | Power Consumption: 4.8 W | Mass: 0.86 kg
SL15-M1JN-G Size: Φ150 | Rated Voltage: 12-24V DC | Wiring/Mounting: Cable, 3-point bolt mounting | Buzzer: No | Luminous Color: Green | Power Consumption: 4.8 W | Mass: 0.86 kg
SL15-M1JN-B Size: Φ150 | Rated Voltage: 12-24V DC | Wiring/Mounting: Cable, 3-point bolt mounting | Buzzer: No | Luminous Color: Blue | Power Consumption: 4.8 W | Mass: 0.86 kg
SL15-M1KTN-R Size: Φ150 | Rated Voltage: 12-24V DC | Wiring/Mounting: Push-in terminal block, 3-point hole mounting | Buzzer: No | Luminous Color: Red | Power Consumption: 4.8 W | Mass: 0.86 kg
SL15-M1KTN-Y Size: Φ150 | Rated Voltage: 12-24V DC | Wiring/Mounting: Push-in terminal block, 3-point hole mounting | Buzzer: No | Luminous Color: Amber | Power Consumption: 4.8 W | Mass: 0.86 kg
SL15-M1KTN-G Size: Φ150 | Rated Voltage: 12-24V DC | Wiring/Mounting: Push-in terminal block, 3-point hole mounting | Buzzer: No | Luminous Color: Green | Power Consumption: 4.8 W | Mass: 0.86 kg
SL15-M1KTN-B Size: Φ150 | Rated Voltage: 12-24V DC | Wiring/Mounting: Push-in terminal block, 3-point hole mounting | Buzzer: No | Luminous Color: Blue | Power Consumption: 4.8 W | Mass: 0.86 kg
SL15-M2JN-R Size: Φ150 | Rated Voltage: 100-240V AC | Wiring/Mounting: Cable, 3-point bolt mounting | Buzzer: No | Luminous Color: Red | Power Consumption: 5.6 W | Mass: 0.89 kg
SL15-M2JN-Y Size: Φ150 | Rated Voltage: 100-240V AC | Wiring/Mounting: Cable, 3-point bolt mounting | Buzzer: No | Luminous Color: Amber | Power Consumption: 5.6 W | Mass: 0.89 kg
SL15-M2JN-G Size: Φ150 | Rated Voltage: 100-240V AC | Wiring/Mounting: Cable, 3-point bolt mounting | Buzzer: No | Luminous Color: Green | Power Consumption: 5.6 W | Mass: 0.89 kg
SL15-M2JN-B Size: Φ150 | Rated Voltage: 100-240V AC | Wiring/Mounting: Cable, 3-point bolt mounting | Buzzer: No | Luminous Color: Blue | Power Consumption: 5.6 W | Mass: 0.89 kg
SL15-M2KTN-R Size: Φ150 | Rated Voltage: 100-240V AC | Wiring/Mounting: Push-in terminal block, 3-point hole mounting | Buzzer: No | Luminous Color: Red | Power Consumption: 5.6 W | Mass: 0.89 kg
SL15-M2KTN-Y Size: Φ150 | Rated Voltage: 100-240V AC | Wiring/Mounting: Push-in terminal block, 3-point hole mounting | Buzzer: No | Luminous Color: Amber | Power Consumption: 5.6 W | Mass: 0.89 kg
SL15-M2KTN-G Size: Φ150 | Rated Voltage: 100-240V AC | Wiring/Mounting: Push-in terminal block, 3-point hole mounting | Buzzer: No | Luminous Color: Green | Power Consumption: 5.6 W | Mass: 0.89 kg
SL15-M2KTN-B Size: Φ150 | Rated Voltage: 100-240V AC | Wiring/Mounting: Push-in terminal block, 3-point hole mounting | Buzzer: No | Luminous Color: Blue | Power Consumption: 5.6 W | Mass: 0.89 kg
Signal BeaconsPATLITE
64 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

PATLITE SL Signal Beacon, Φ80/Φ100/Φ150 mm

Brand PATLITE·Signal Beacons

Available part numbers (64)

SL08-M1JN-R, SL08-M1JN-Y, SL08-M1JN-G, SL08-M1JN-B, SL08-M1KTN-R, SL08-M1KTN-Y, SL08-M1KTN-G, SL08-M1KTN-B, SL08-M1KTB-R, SL08-M1KTB-Y + 54 more — see full table ↓

How to order

Send the PATLITE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SL08-M1JN-RSize: Φ80 | Rated Voltage: 12-24V DC | Wiring/Mounting: Cable, 3-point bolt mounting | Buzzer: No | Luminous Color: Red | Power Consumption: 2.9 W | Mass: 0.25 kg
SL08-M1JN-YSize: Φ80 | Rated Voltage: 12-24V DC | Wiring/Mounting: Cable, 3-point bolt mounting | Buzzer: No | Luminous Color: Amber | Power Consumption: 2.9 W | Mass: 0.25 kg
SL08-M1JN-GSize: Φ80 | Rated Voltage: 12-24V DC | Wiring/Mounting: Cable, 3-point bolt mounting | Buzzer: No | Luminous Color: Green | Power Consumption: 2.9 W | Mass: 0.25 kg
SL08-M1JN-BSize: Φ80 | Rated Voltage: 12-24V DC | Wiring/Mounting: Cable, 3-point bolt mounting | Buzzer: No | Luminous Color: Blue | Power Consumption: 2.9 W | Mass: 0.25 kg
SL08-M1KTN-RSize: Φ80 | Rated Voltage: 12-24V DC | Wiring/Mounting: Push-in terminal block, 2-point hole mounting | Buzzer: No | Luminous Color: Red | Power Consumption: 2.9 W | Mass: 0.23 kg
SL08-M1KTN-YSize: Φ80 | Rated Voltage: 12-24V DC | Wiring/Mounting: Push-in terminal block, 2-point hole mounting | Buzzer: No | Luminous Color: Amber | Power Consumption: 2.9 W | Mass: 0.23 kg
SL08-M1KTN-GSize: Φ80 | Rated Voltage: 12-24V DC | Wiring/Mounting: Push-in terminal block, 2-point hole mounting | Buzzer: No | Luminous Color: Green | Power Consumption: 2.9 W | Mass: 0.23 kg
SL08-M1KTN-BSize: Φ80 | Rated Voltage: 12-24V DC | Wiring/Mounting: Push-in terminal block, 2-point hole mounting | Buzzer: No | Luminous Color: Blue | Power Consumption: 2.9 W | Mass: 0.23 kg
SL08-M1KTB-RSize: Φ80 | Rated Voltage: 12-24V DC | Wiring/Mounting: Push-in terminal block, 2-point hole mounting | Buzzer: Yes | Luminous Color: Red | Power Consumption: 3.4 W | Mass: 0.24 kg
SL08-M1KTB-YSize: Φ80 | Rated Voltage: 12-24V DC | Wiring/Mounting: Push-in terminal block, 2-point hole mounting | Buzzer: Yes | Luminous Color: Amber | Power Consumption: 3.4 W | Mass: 0.24 kg
SL08-M1KTB-GSize: Φ80 | Rated Voltage: 12-24V DC | Wiring/Mounting: Push-in terminal block, 2-point hole mounting | Buzzer: Yes | Luminous Color: Green | Power Consumption: 3.4 W | Mass: 0.24 kg
SL08-M1KTB-BSize: Φ80 | Rated Voltage: 12-24V DC | Wiring/Mounting: Push-in terminal block, 2-point hole mounting | Buzzer: Yes | Luminous Color: Blue | Power Consumption: 3.4 W | Mass: 0.24 kg
SL08-M2JN-RSize: Φ80 | Rated Voltage: 100-240V AC | Wiring/Mounting: Cable, 3-point bolt mounting | Buzzer: No | Luminous Color: Red | Power Consumption: 3.1 W | Mass: 0.28 kg
SL08-M2JN-YSize: Φ80 | Rated Voltage: 100-240V AC | Wiring/Mounting: Cable, 3-point bolt mounting | Buzzer: No | Luminous Color: Amber | Power Consumption: 3.1 W | Mass: 0.28 kg
SL08-M2JN-GSize: Φ80 | Rated Voltage: 100-240V AC | Wiring/Mounting: Cable, 3-point bolt mounting | Buzzer: No | Luminous Color: Green | Power Consumption: 3.1 W | Mass: 0.28 kg
SL08-M2JN-BSize: Φ80 | Rated Voltage: 100-240V AC | Wiring/Mounting: Cable, 3-point bolt mounting | Buzzer: No | Luminous Color: Blue | Power Consumption: 3.1 W | Mass: 0.28 kg
SL08-M2KTN-RSize: Φ80 | Rated Voltage: 100-240V AC | Wiring/Mounting: Push-in terminal block, 2-point hole mounting | Buzzer: No | Luminous Color: Red | Power Consumption: 3.1 W | Mass: 0.26 kg
SL08-M2KTN-YSize: Φ80 | Rated Voltage: 100-240V AC | Wiring/Mounting: Push-in terminal block, 2-point hole mounting | Buzzer: No | Luminous Color: Amber | Power Consumption: 3.1 W | Mass: 0.26 kg
SL08-M2KTN-GSize: Φ80 | Rated Voltage: 100-240V AC | Wiring/Mounting: Push-in terminal block, 2-point hole mounting | Buzzer: No | Luminous Color: Green | Power Consumption: 3.1 W | Mass: 0.26 kg
SL08-M2KTN-BSize: Φ80 | Rated Voltage: 100-240V AC | Wiring/Mounting: Push-in terminal block, 2-point hole mounting | Buzzer: No | Luminous Color: Blue | Power Consumption: 3.1 W | Mass: 0.26 kg
SL08-M2KTB-RSize: Φ80 | Rated Voltage: 100-240V AC | Wiring/Mounting: Push-in terminal block, 2-point hole mounting | Buzzer: Yes | Luminous Color: Red | Power Consumption: 3.5 W | Mass: 0.27 kg
SL08-M2KTB-YSize: Φ80 | Rated Voltage: 100-240V AC | Wiring/Mounting: Push-in terminal block, 2-point hole mounting | Buzzer: Yes | Luminous Color: Amber | Power Consumption: 3.5 W | Mass: 0.27 kg
SL08-M2KTB-GSize: Φ80 | Rated Voltage: 100-240V AC | Wiring/Mounting: Push-in terminal block, 2-point hole mounting | Buzzer: Yes | Luminous Color: Green | Power Consumption: 3.5 W | Mass: 0.27 kg
SL08-M2KTB-BSize: Φ80 | Rated Voltage: 100-240V AC | Wiring/Mounting: Push-in terminal block, 2-point hole mounting | Buzzer: Yes | Luminous Color: Blue | Power Consumption: 3.5 W | Mass: 0.27 kg
SL10-M1JN-RSize: Φ100 | Rated Voltage: 12-24V DC | Wiring/Mounting: Cable, 3-point bolt mounting | Buzzer: No | Luminous Color: Red | Power Consumption: 2.9 W | Mass: 0.37 kg
SL10-M1JN-YSize: Φ100 | Rated Voltage: 12-24V DC | Wiring/Mounting: Cable, 3-point bolt mounting | Buzzer: No | Luminous Color: Amber | Power Consumption: 2.9 W | Mass: 0.37 kg
SL10-M1JN-GSize: Φ100 | Rated Voltage: 12-24V DC | Wiring/Mounting: Cable, 3-point bolt mounting | Buzzer: No | Luminous Color: Green | Power Consumption: 2.9 W | Mass: 0.37 kg
SL10-M1JN-BSize: Φ100 | Rated Voltage: 12-24V DC | Wiring/Mounting: Cable, 3-point bolt mounting | Buzzer: No | Luminous Color: Blue | Power Consumption: 2.9 W | Mass: 0.37 kg
SL10-M1KTN-RSize: Φ100 | Rated Voltage: 12-24V DC | Wiring/Mounting: Push-in terminal block, 2-point hole mounting | Buzzer: No | Luminous Color: Red | Power Consumption: 2.9 W | Mass: 0.36 kg
SL10-M1KTN-YSize: Φ100 | Rated Voltage: 12-24V DC | Wiring/Mounting: Push-in terminal block, 2-point hole mounting | Buzzer: No | Luminous Color: Amber | Power Consumption: 2.9 W | Mass: 0.36 kg
SL10-M1KTN-GSize: Φ100 | Rated Voltage: 12-24V DC | Wiring/Mounting: Push-in terminal block, 2-point hole mounting | Buzzer: No | Luminous Color: Green | Power Consumption: 2.9 W | Mass: 0.36 kg
SL10-M1KTN-BSize: Φ100 | Rated Voltage: 12-24V DC | Wiring/Mounting: Push-in terminal block, 2-point hole mounting | Buzzer: No | Luminous Color: Blue | Power Consumption: 2.9 W | Mass: 0.36 kg
SL10-M1KTB-RSize: Φ100 | Rated Voltage: 12-24V DC | Wiring/Mounting: Push-in terminal block, 2-point hole mounting | Buzzer: Yes | Luminous Color: Red | Power Consumption: 3.4 W | Mass: 0.37 kg
SL10-M1KTB-YSize: Φ100 | Rated Voltage: 12-24V DC | Wiring/Mounting: Push-in terminal block, 2-point hole mounting | Buzzer: Yes | Luminous Color: Amber | Power Consumption: 3.4 W | Mass: 0.37 kg
SL10-M1KTB-GSize: Φ100 | Rated Voltage: 12-24V DC | Wiring/Mounting: Push-in terminal block, 2-point hole mounting | Buzzer: Yes | Luminous Color: Green | Power Consumption: 3.4 W | Mass: 0.37 kg
SL10-M1KTB-BSize: Φ100 | Rated Voltage: 12-24V DC | Wiring/Mounting: Push-in terminal block, 2-point hole mounting | Buzzer: Yes | Luminous Color: Blue | Power Consumption: 3.4 W | Mass: 0.37 kg
SL10-M2JN-RSize: Φ100 | Rated Voltage: 100-240V AC | Wiring/Mounting: Cable, 3-point bolt mounting | Buzzer: No | Luminous Color: Red | Power Consumption: 3.1 W | Mass: 0.40 kg
SL10-M2JN-YSize: Φ100 | Rated Voltage: 100-240V AC | Wiring/Mounting: Cable, 3-point bolt mounting | Buzzer: No | Luminous Color: Amber | Power Consumption: 3.1 W | Mass: 0.40 kg
SL10-M2JN-GSize: Φ100 | Rated Voltage: 100-240V AC | Wiring/Mounting: Cable, 3-point bolt mounting | Buzzer: No | Luminous Color: Green | Power Consumption: 3.1 W | Mass: 0.40 kg
SL10-M2JN-BSize: Φ100 | Rated Voltage: 100-240V AC | Wiring/Mounting: Cable, 3-point bolt mounting | Buzzer: No | Luminous Color: Blue | Power Consumption: 3.1 W | Mass: 0.40 kg
SL10-M2KTN-RSize: Φ100 | Rated Voltage: 100-240V AC | Wiring/Mounting: Push-in terminal block, 2-point hole mounting | Buzzer: No | Luminous Color: Red | Power Consumption: 3.1 W | Mass: 0.38 kg
SL10-M2KTN-YSize: Φ100 | Rated Voltage: 100-240V AC | Wiring/Mounting: Push-in terminal block, 2-point hole mounting | Buzzer: No | Luminous Color: Amber | Power Consumption: 3.1 W | Mass: 0.38 kg
SL10-M2KTN-GSize: Φ100 | Rated Voltage: 100-240V AC | Wiring/Mounting: Push-in terminal block, 2-point hole mounting | Buzzer: No | Luminous Color: Green | Power Consumption: 3.1 W | Mass: 0.38 kg
SL10-M2KTN-BSize: Φ100 | Rated Voltage: 100-240V AC | Wiring/Mounting: Push-in terminal block, 2-point hole mounting | Buzzer: No | Luminous Color: Blue | Power Consumption: 3.1 W | Mass: 0.38 kg
SL10-M2KTB-RSize: Φ100 | Rated Voltage: 100-240V AC | Wiring/Mounting: Push-in terminal block, 2-point hole mounting | Buzzer: Yes | Luminous Color: Red | Power Consumption: 3.5 W | Mass: 0.40 kg
SL10-M2KTB-YSize: Φ100 | Rated Voltage: 100-240V AC | Wiring/Mounting: Push-in terminal block, 2-point hole mounting | Buzzer: Yes | Luminous Color: Amber | Power Consumption: 3.5 W | Mass: 0.40 kg
SL10-M2KTB-GSize: Φ100 | Rated Voltage: 100-240V AC | Wiring/Mounting: Push-in terminal block, 2-point hole mounting | Buzzer: Yes | Luminous Color: Green | Power Consumption: 3.5 W | Mass: 0.40 kg
SL10-M2KTB-BSize: Φ100 | Rated Voltage: 100-240V AC | Wiring/Mounting: Push-in terminal block, 2-point hole mounting | Buzzer: Yes | Luminous Color: Blue | Power Consumption: 3.5 W | Mass: 0.40 kg
SL15-M1JN-RSize: Φ150 | Rated Voltage: 12-24V DC | Wiring/Mounting: Cable, 3-point bolt mounting | Buzzer: No | Luminous Color: Red | Power Consumption: 4.8 W | Mass: 0.86 kg
SL15-M1JN-YSize: Φ150 | Rated Voltage: 12-24V DC | Wiring/Mounting: Cable, 3-point bolt mounting | Buzzer: No | Luminous Color: Amber | Power Consumption: 4.8 W | Mass: 0.86 kg
SL15-M1JN-GSize: Φ150 | Rated Voltage: 12-24V DC | Wiring/Mounting: Cable, 3-point bolt mounting | Buzzer: No | Luminous Color: Green | Power Consumption: 4.8 W | Mass: 0.86 kg
SL15-M1JN-BSize: Φ150 | Rated Voltage: 12-24V DC | Wiring/Mounting: Cable, 3-point bolt mounting | Buzzer: No | Luminous Color: Blue | Power Consumption: 4.8 W | Mass: 0.86 kg
SL15-M1KTN-RSize: Φ150 | Rated Voltage: 12-24V DC | Wiring/Mounting: Push-in terminal block, 3-point hole mounting | Buzzer: No | Luminous Color: Red | Power Consumption: 4.8 W | Mass: 0.86 kg
SL15-M1KTN-YSize: Φ150 | Rated Voltage: 12-24V DC | Wiring/Mounting: Push-in terminal block, 3-point hole mounting | Buzzer: No | Luminous Color: Amber | Power Consumption: 4.8 W | Mass: 0.86 kg
SL15-M1KTN-GSize: Φ150 | Rated Voltage: 12-24V DC | Wiring/Mounting: Push-in terminal block, 3-point hole mounting | Buzzer: No | Luminous Color: Green | Power Consumption: 4.8 W | Mass: 0.86 kg
SL15-M1KTN-BSize: Φ150 | Rated Voltage: 12-24V DC | Wiring/Mounting: Push-in terminal block, 3-point hole mounting | Buzzer: No | Luminous Color: Blue | Power Consumption: 4.8 W | Mass: 0.86 kg
SL15-M2JN-RSize: Φ150 | Rated Voltage: 100-240V AC | Wiring/Mounting: Cable, 3-point bolt mounting | Buzzer: No | Luminous Color: Red | Power Consumption: 5.6 W | Mass: 0.89 kg
SL15-M2JN-YSize: Φ150 | Rated Voltage: 100-240V AC | Wiring/Mounting: Cable, 3-point bolt mounting | Buzzer: No | Luminous Color: Amber | Power Consumption: 5.6 W | Mass: 0.89 kg
SL15-M2JN-GSize: Φ150 | Rated Voltage: 100-240V AC | Wiring/Mounting: Cable, 3-point bolt mounting | Buzzer: No | Luminous Color: Green | Power Consumption: 5.6 W | Mass: 0.89 kg
SL15-M2JN-BSize: Φ150 | Rated Voltage: 100-240V AC | Wiring/Mounting: Cable, 3-point bolt mounting | Buzzer: No | Luminous Color: Blue | Power Consumption: 5.6 W | Mass: 0.89 kg
SL15-M2KTN-RSize: Φ150 | Rated Voltage: 100-240V AC | Wiring/Mounting: Push-in terminal block, 3-point hole mounting | Buzzer: No | Luminous Color: Red | Power Consumption: 5.6 W | Mass: 0.89 kg
SL15-M2KTN-YSize: Φ150 | Rated Voltage: 100-240V AC | Wiring/Mounting: Push-in terminal block, 3-point hole mounting | Buzzer: No | Luminous Color: Amber | Power Consumption: 5.6 W | Mass: 0.89 kg
SL15-M2KTN-GSize: Φ150 | Rated Voltage: 100-240V AC | Wiring/Mounting: Push-in terminal block, 3-point hole mounting | Buzzer: No | Luminous Color: Green | Power Consumption: 5.6 W | Mass: 0.89 kg
SL15-M2KTN-BSize: Φ150 | Rated Voltage: 100-240V AC | Wiring/Mounting: Push-in terminal block, 3-point hole mounting | Buzzer: No | Luminous Color: Blue | Power Consumption: 5.6 W | Mass: 0.89 kg
