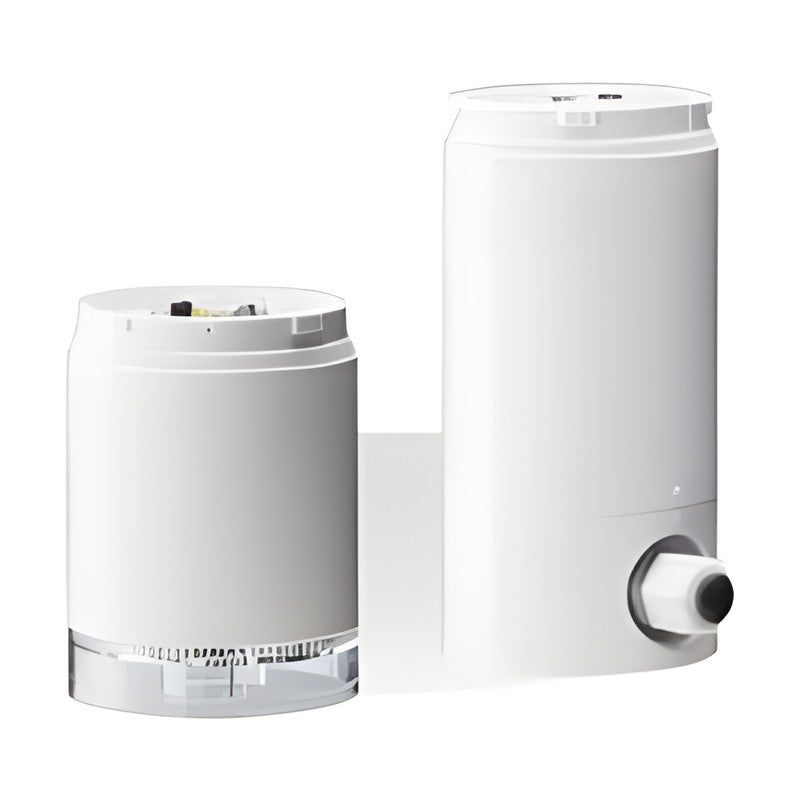

PATLITE WD PRO Wireless Data Acquisition Transmitter and Base Unit

PATLITE WD PRO Wireless Data Acquisition Transmitter and Base Unit

Wireless data acquisition system components that attach to LR6 signal towers and transmit tower status or contact/serial data to a WD PRO receiver.

Key features

  • Transmitter mounts under an LR6 (60 mm) signal tower
  • Base unit adds 8 digital contact inputs and serial (RS-232C) communication
  • WDT-6LR-Z2-PRO+FT019 is the version with wireless certification for Indonesia

Specifications

Size Φ60 mm
Rated Voltage 24V DC
Mounting Upright
Ambient Temperature -10 to +50°C
Ingress Protection IP65
Use Indoor
Approvals CE, UL, FCC, KC
WDB-D80S-PRO Type: Base unit (8 contact inputs, serial communication) | Power Consumption: 2.64 W | Mass: 0.3 kg
WDT-6LR-Z2-PRO Type: Transmitter | Power Consumption: 2.7 W | Mass: 0.09 kg
WDT-6LR-Z2-PRO+FT019 Type: Transmitter (Indonesia certified) | Power Consumption: 2.7 W | Mass: 0.09 kg
Wireless Signal SystemsPATLITE
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

PATLITE WD PRO Wireless Data Acquisition Transmitter and Base Unit

Brand PATLITE·Wireless Signal Systems

Available part numbers (3)

WDB-D80S-PRO, WDT-6LR-Z2-PRO, WDT-6LR-Z2-PRO+FT019

How to order

Send the PATLITE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WDB-D80S-PROType: Base unit (8 contact inputs, serial communication) | Power Consumption: 2.64 W | Mass: 0.3 kg
WDT-6LR-Z2-PROType: Transmitter | Power Consumption: 2.7 W | Mass: 0.09 kg
WDT-6LR-Z2-PRO+FT019Type: Transmitter (Indonesia certified) | Power Consumption: 2.7 W | Mass: 0.09 kg
