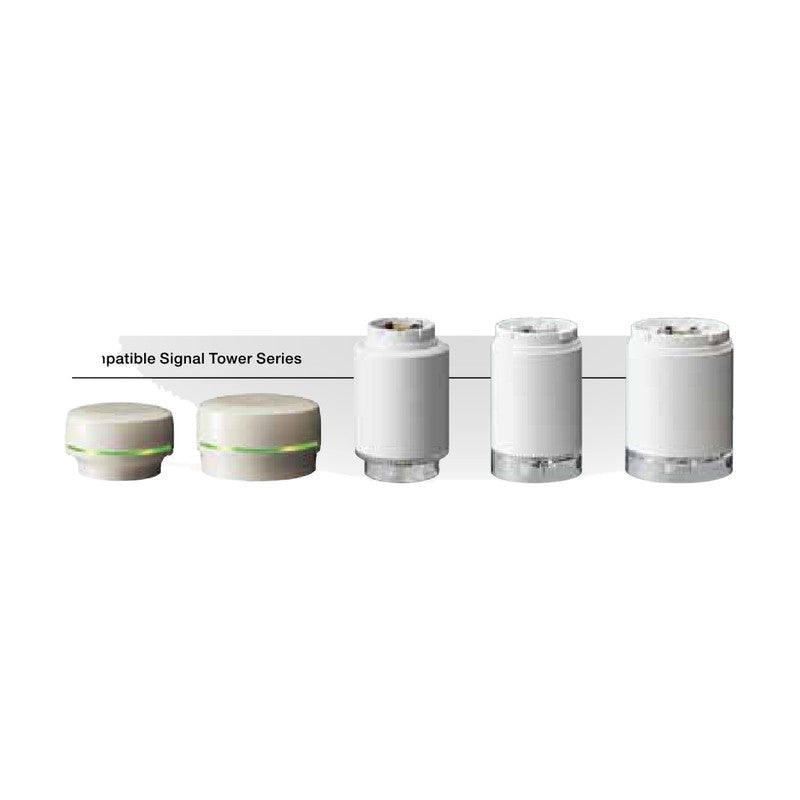

PATLITE WD-Z2 Wireless Data Acquisition Transmitters

PATLITE WD-Z2 Wireless Data Acquisition Transmitters

Wireless transmitters that attach to PATLITE signal towers (LE, LME, LR4, LR5, LR6) and send tower status to a WD receiver.

Key features

  • Versions for Φ40, Φ50 and Φ60 signal towers
  • Mounts between the signal tower and its mounting surface
  • Configured with WD system setup software

Specifications

Rated Voltage 24V DC
Type Transmitter
Mounting Upright
Ambient Temperature -10 to +50°C
Ingress Protection IP65, NEMA Type 4X/13
Use Indoor
WDT-5E-Z2 Size: Φ50 | Compatible Signal Tower: LE | Power Consumption: 0.8 W | Mass: 0.052 kg
WDT-6M-Z2 Size: Φ60 | Compatible Signal Tower: LME | Power Consumption: 0.8 W | Mass: 0.052 kg
WDT-5LR-Z2 Size: Φ50 | Compatible Signal Tower: LR5 | Power Consumption: 1.4 W | Mass: 0.074 kg
WDT-6LR-Z2+FT018 Size: Φ60 | Compatible Signal Tower: LR6 | Power Consumption: 1.4 W | Mass: 0.085 kg | Note: Indonesia certified version
Wireless Signal SystemsPATLITE
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

PATLITE WD-Z2 Wireless Data Acquisition Transmitters

Brand PATLITE·Wireless Signal Systems

Available part numbers (4)

WDT-5E-Z2, WDT-6M-Z2, WDT-5LR-Z2, WDT-6LR-Z2+FT018

How to order

Send the PATLITE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WDT-5E-Z2Size: Φ50 | Compatible Signal Tower: LE | Power Consumption: 0.8 W | Mass: 0.052 kg
WDT-6M-Z2Size: Φ60 | Compatible Signal Tower: LME | Power Consumption: 0.8 W | Mass: 0.052 kg
WDT-5LR-Z2Size: Φ50 | Compatible Signal Tower: LR5 | Power Consumption: 1.4 W | Mass: 0.074 kg
WDT-6LR-Z2+FT018Size: Φ60 | Compatible Signal Tower: LR6 | Power Consumption: 1.4 W | Mass: 0.085 kg | Note: Indonesia certified version
