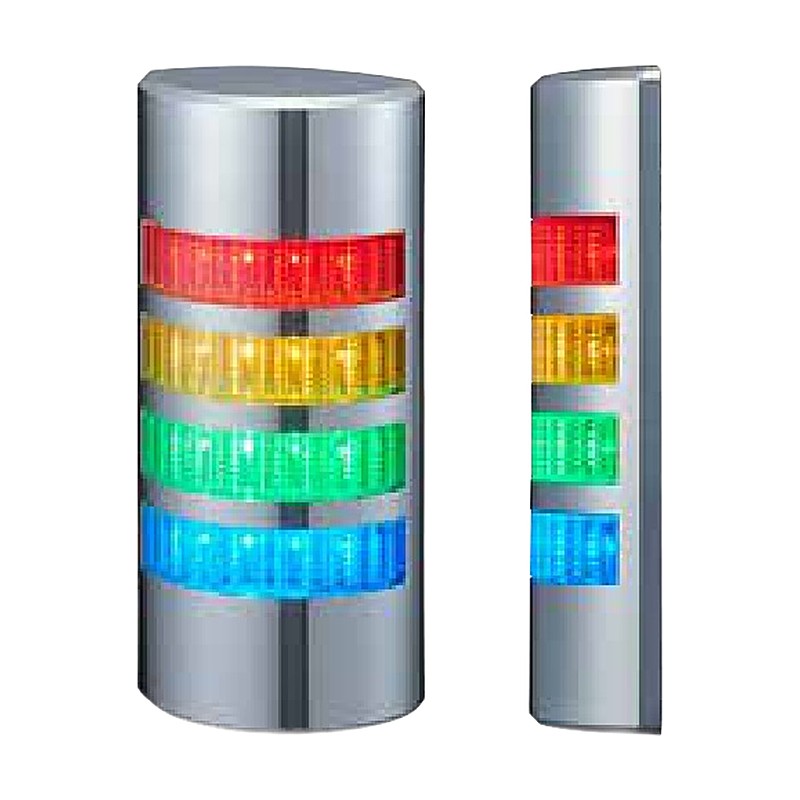

PATLITE WE-402UB-LAN Wall Mount LAN Signal Tower, 4 Tiers

Wall-mounted 4-tier LED signal tower with a LAN interface, controllable over Ethernet via HTTP, Modbus/TCP or PATLITE socket (PNS) commands.

Key features

Each tier can display 9 colors (red, amber, green, blue, sky blue, purple, pink, lemon yellow, white). 10 flash patterns, including all-tier flashing, flowing (direction) display and gentle firefly-like dimming
Built-in buzzer with 7 selectable patterns; volume reducible via the setup browser
General-purpose protocols (HTTP, Modbus/TCP, SOCKET) for easy integration with PCs, PLCs and network cameras

Specifications

Size	W90 x D37.5 mm
Tiers	4
Rated Voltage	24V DC
Mounting	Wall mount
Power Consumption	5.5 W
Mass	0.42 kg
Cover Color	Silver
Buzzer	Yes, 88 dB
Network	Ethernet 10BASE-T/100BASE-TX
Protocols	HTTP, DHCP, Modbus/TCP, SOCKET (PNS command)
Use	Indoor
Ingress Protection	IP23

WE-402UB-LAN

Tiers: 4 | Colors: 9 selectable colors per tier

Network Signal TowersPATLITE

1 product code available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

PATLITE WE-402UB-LAN Wall Mount LAN Signal Tower, 4 Tiers

Brand PATLITE·Network Signal Towers

Available part numbers (1)

WE-402UB-LAN

How to order

Send the PATLITE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
