PATLITE WE / WEP Wall Mount Signal Tower

PATLITE WE / WEP Wall Mount Signal Tower

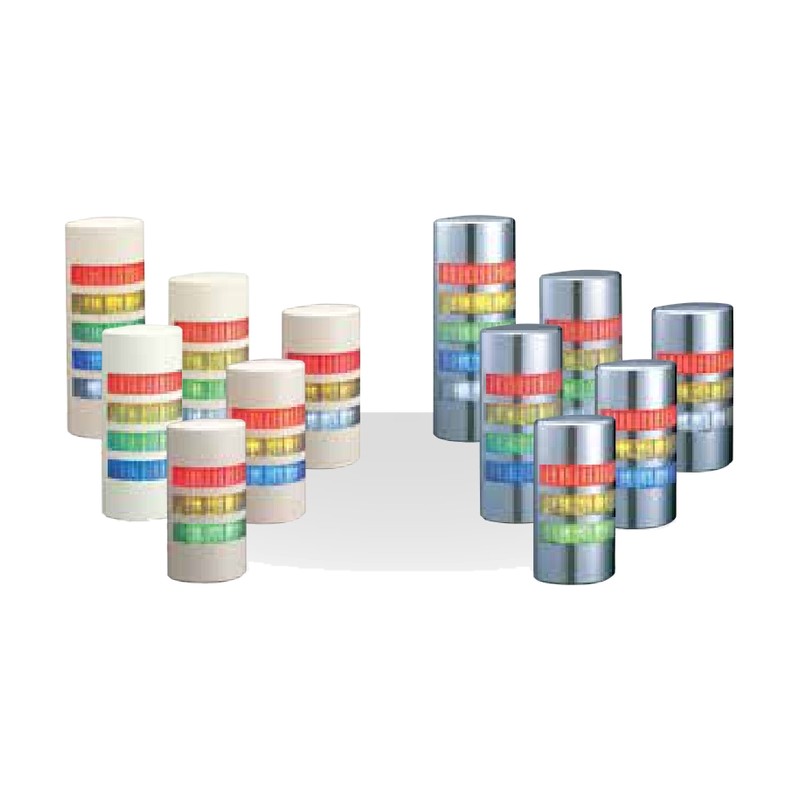

Flat wall-mounted LED signal tower (W90 x D37.5 mm) with 3 to 5 tiers, with chrome-plated (WE) or light gray (WEP) cover.

Key features

  • Mounts flat on walls or machine sides
  • FB models add flashing (60 flashes/min) and 2 buzzer sounds (90 dB)
  • Clear lenses, translucent when off

Specifications

Size W90 x D37.5 mm
Rated Voltage 24V AC/DC
Supported Transistors NPN/PNP
Use Indoor
Ambient Temperature -30 to +60°C
Ingress Protection IP65 (IP54 with buzzer)
Approvals CE, RoHS, UKCA, UL
WE-302-RYG Cover: Chrome-plated | Tiers: 3 | Function: Continuous on | Buzzer: No | Luminous Color: Red, Amber, Green | Power Consumption: 1.9 W | Mass: 0.30 kg
WEP-302-RYG Cover: Light gray | Tiers: 3 | Function: Continuous on | Buzzer: No | Luminous Color: Red, Amber, Green | Power Consumption: 1.9 W | Mass: 0.30 kg
WE-302-RYB Cover: Chrome-plated | Tiers: 3 | Function: Continuous on | Buzzer: No | Luminous Color: Red, Amber, Blue | Power Consumption: 1.9 W | Mass: 0.30 kg
WEP-302-RYB Cover: Light gray | Tiers: 3 | Function: Continuous on | Buzzer: No | Luminous Color: Red, Amber, Blue | Power Consumption: 1.9 W | Mass: 0.30 kg
WE-302-RYC Cover: Chrome-plated | Tiers: 3 | Function: Continuous on | Buzzer: No | Luminous Color: Red, Amber, White | Power Consumption: 1.9 W | Mass: 0.30 kg
WEP-302-RYC Cover: Light gray | Tiers: 3 | Function: Continuous on | Buzzer: No | Luminous Color: Red, Amber, White | Power Consumption: 1.9 W | Mass: 0.30 kg
WE-302FB-RYG Cover: Chrome-plated | Tiers: 3 | Function: Continuous on and flashing | Buzzer: Yes | Luminous Color: Red, Amber, Green | Power Consumption: 3.1 W | Mass: 0.30 kg
WEP-302FB-RYG Cover: Light gray | Tiers: 3 | Function: Continuous on and flashing | Buzzer: Yes | Luminous Color: Red, Amber, Green | Power Consumption: 3.1 W | Mass: 0.30 kg
WE-302FB-RYB Cover: Chrome-plated | Tiers: 3 | Function: Continuous on and flashing | Buzzer: Yes | Luminous Color: Red, Amber, Blue | Power Consumption: 3.1 W | Mass: 0.30 kg
WEP-302FB-RYB Cover: Light gray | Tiers: 3 | Function: Continuous on and flashing | Buzzer: Yes | Luminous Color: Red, Amber, Blue | Power Consumption: 3.1 W | Mass: 0.30 kg
WE-302FB-RYC Cover: Chrome-plated | Tiers: 3 | Function: Continuous on and flashing | Buzzer: Yes | Luminous Color: Red, Amber, White | Power Consumption: 3.1 W | Mass: 0.30 kg
WEP-302FB-RYC Cover: Light gray | Tiers: 3 | Function: Continuous on and flashing | Buzzer: Yes | Luminous Color: Red, Amber, White | Power Consumption: 3.1 W | Mass: 0.30 kg
WE-402-RYGB Cover: Chrome-plated | Tiers: 4 | Function: Continuous on | Buzzer: No | Luminous Color: Red, Amber, Green, Blue | Power Consumption: 2.4 W | Mass: 0.33 kg
WEP-402-RYGB Cover: Light gray | Tiers: 4 | Function: Continuous on | Buzzer: No | Luminous Color: Red, Amber, Green, Blue | Power Consumption: 2.4 W | Mass: 0.33 kg
WE-402-RYGC Cover: Chrome-plated | Tiers: 4 | Function: Continuous on | Buzzer: No | Luminous Color: Red, Amber, Green, White | Power Consumption: 2.4 W | Mass: 0.33 kg
WEP-402-RYGC Cover: Light gray | Tiers: 4 | Function: Continuous on | Buzzer: No | Luminous Color: Red, Amber, Green, White | Power Consumption: 2.4 W | Mass: 0.33 kg
WE-402FB-RYGB Cover: Chrome-plated | Tiers: 4 | Function: Continuous on and flashing | Buzzer: Yes | Luminous Color: Red, Amber, Green, Blue | Power Consumption: 3.6 W | Mass: 0.33 kg
WEP-402FB-RYGB Cover: Light gray | Tiers: 4 | Function: Continuous on and flashing | Buzzer: Yes | Luminous Color: Red, Amber, Green, Blue | Power Consumption: 3.6 W | Mass: 0.33 kg
WE-402FB-RYGC Cover: Chrome-plated | Tiers: 4 | Function: Continuous on and flashing | Buzzer: Yes | Luminous Color: Red, Amber, Green, White | Power Consumption: 3.6 W | Mass: 0.33 kg
WEP-402FB-RYGC Cover: Light gray | Tiers: 4 | Function: Continuous on and flashing | Buzzer: Yes | Luminous Color: Red, Amber, Green, White | Power Consumption: 3.6 W | Mass: 0.33 kg
WE-502-RYGBC Cover: Chrome-plated | Tiers: 5 | Function: Continuous on | Buzzer: No | Luminous Color: Red, Amber, Green, Blue, White | Power Consumption: 2.9 W | Mass: 0.35 kg
WEP-502-RYGBC Cover: Light gray | Tiers: 5 | Function: Continuous on | Buzzer: No | Luminous Color: Red, Amber, Green, Blue, White | Power Consumption: 2.9 W | Mass: 0.35 kg
WE-502FB-RYGBC Cover: Chrome-plated | Tiers: 5 | Function: Continuous on and flashing | Buzzer: Yes | Luminous Color: Red, Amber, Green, Blue, White | Power Consumption: 4.1 W | Mass: 0.35 kg
WEP-502FB-RYGBC Cover: Light gray | Tiers: 5 | Function: Continuous on and flashing | Buzzer: Yes | Luminous Color: Red, Amber, Green, Blue, White | Power Consumption: 4.1 W | Mass: 0.35 kg
Signal TowersPATLITE
24 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

PATLITE WE / WEP Wall Mount Signal Tower

Brand PATLITE·Signal Towers

Available part numbers (24)

WE-302-RYG, WEP-302-RYG, WE-302-RYB, WEP-302-RYB, WE-302-RYC, WEP-302-RYC, WE-302FB-RYG, WEP-302FB-RYG, WE-302FB-RYB, WEP-302FB-RYB + 14 more — see full table ↓

How to order

Send the PATLITE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
