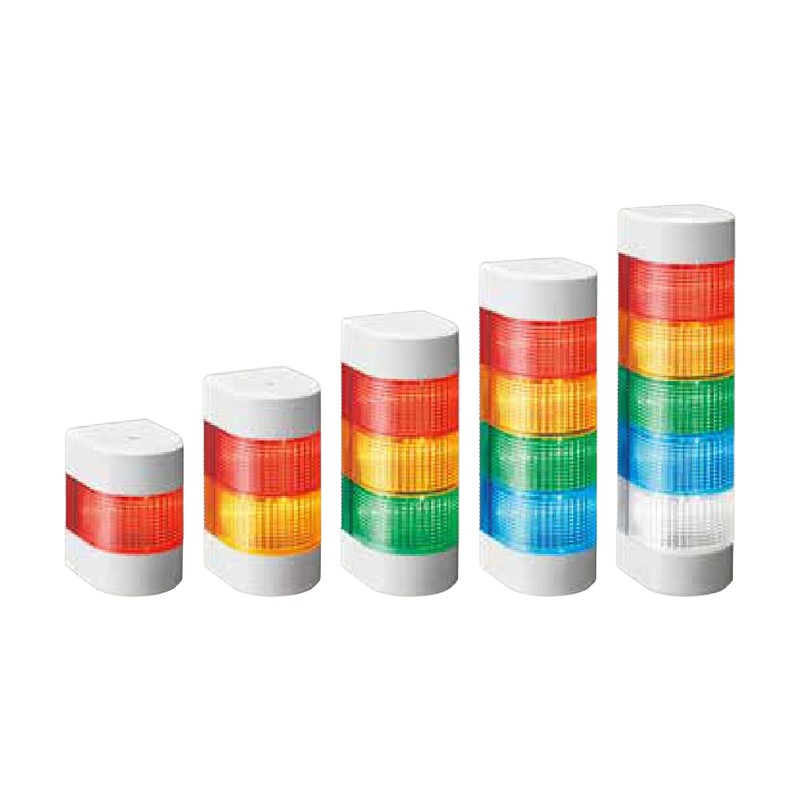

PATLITE WME-D Wall Mount Signal Tower, W70 mm

PATLITE WME-D Wall Mount Signal Tower, W70 mm

Compact wall-mounted LED signal tower (W70 x D80.2 mm) with 1 to 5 tiers, in 24V DC and 100-240V AC versions.

Key features

  • FB models add flashing (60 flashes/min) and 2 intermittent buzzer sounds (93 dB)
  • Mounting bracket for the corresponding number of tiers included
  • Number of tiers can be changed with reconfiguration parts

Specifications

Size W70 x D80.2 mm
Supported Transistors NPN/PNP
Use Indoor
Mounting Wall mount
Ambient Temperature -10 to +55°C
Ingress Protection IP54
Approvals CE, UKCA, UL
WME-102D-R Tiers: 1 | Rated Voltage: 24V DC | Function: Continuous On | Buzzer: None | Luminous Color: Red | Power Consumption: 0.7 W | Mass: 0.28 kg
WME-102D-Y Tiers: 1 | Rated Voltage: 24V DC | Function: Continuous On | Buzzer: None | Luminous Color: Amber | Power Consumption: 0.9 W | Mass: 0.28 kg
WME-102D-G Tiers: 1 | Rated Voltage: 24V DC | Function: Continuous On | Buzzer: None | Luminous Color: Green | Power Consumption: 0.5 W | Mass: 0.28 kg
WME-102DFB-R Tiers: 1 | Rated Voltage: 24V DC | Function: Continuous On and flashing | Buzzer: Yes | Luminous Color: Red | Power Consumption: 1.9 W | Mass: 0.28 kg
WME-102DFB-Y Tiers: 1 | Rated Voltage: 24V DC | Function: Continuous On and flashing | Buzzer: Yes | Luminous Color: Amber | Power Consumption: 2.1 W | Mass: 0.28 kg
WME-102DFB-G Tiers: 1 | Rated Voltage: 24V DC | Function: Continuous On and flashing | Buzzer: Yes | Luminous Color: Green | Power Consumption: 1.7 W | Mass: 0.28 kg
WME-1M2D-R Tiers: 1 | Rated Voltage: 100-240V AC | Function: Continuous On | Buzzer: None | Luminous Color: Red | Power Consumption: 1.1 W | Mass: 0.35 kg
WME-1M2D-Y Tiers: 1 | Rated Voltage: 100-240V AC | Function: Continuous On | Buzzer: None | Luminous Color: Amber | Power Consumption: 1.2 W | Mass: 0.35 kg
WME-1M2D-G Tiers: 1 | Rated Voltage: 100-240V AC | Function: Continuous On | Buzzer: None | Luminous Color: Green | Power Consumption: 0.9 W | Mass: 0.35 kg
WME-1M2DFB-R Tiers: 1 | Rated Voltage: 100-240V AC | Function: Continuous On and flashing | Buzzer: Yes | Luminous Color: Red | Power Consumption: 12.3 W | Mass: 0.35 kg
WME-1M2DFB-Y Tiers: 1 | Rated Voltage: 100-240V AC | Function: Continuous On and flashing | Buzzer: Yes | Luminous Color: Amber | Power Consumption: 2.4 W | Mass: 0.35 kg
WME-1M2DFB-G Tiers: 1 | Rated Voltage: 100-240V AC | Function: Continuous On and flashing | Buzzer: Yes | Luminous Color: Green | Power Consumption: 2.1 W | Mass: 0.35 kg
WME-202D-RY Tiers: 2 | Rated Voltage: 24V DC | Function: Continuous On | Buzzer: None | Luminous Color: Red, Amber | Power Consumption: 1.6 W | Mass: 0.37 kg
WME-202DFB-RY Tiers: 2 | Rated Voltage: 24V DC | Function: Continuous On and flashing | Buzzer: Yes | Luminous Color: Red, Amber | Power Consumption: 2.8 W | Mass: 0.37 kg
WME-2M2D-RY Tiers: 2 | Rated Voltage: 100-240V AC | Function: Continuous On | Buzzer: None | Luminous Color: Red, Amber | Power Consumption: 2.3 W | Mass: 0.44 kg
WME-2M2DFB-RY Tiers: 2 | Rated Voltage: 100-240V AC | Function: Continuous On and flashing | Buzzer: Yes | Luminous Color: Red, Amber | Power Consumption: 3.5 W | Mass: 0.44 kg
WME-302D-RYG Tiers: 3 | Rated Voltage: 24V DC | Function: Continuous On | Buzzer: None | Luminous Color: Red, Amber, Green | Power Consumption: 2.1 W | Mass: 0.46 kg
WME-302DFB-RYG Tiers: 3 | Rated Voltage: 24V DC | Function: Continuous On and flashing | Buzzer: Yes | Luminous Color: Red, Amber, Green | Power Consumption: 3.3 W | Mass: 0.46 kg
WME-3M2D-RYG Tiers: 3 | Rated Voltage: 100-240V AC | Function: Continuous On | Buzzer: None | Luminous Color: Red, Amber, Green | Power Consumption: 3.2 W | Mass: 0.53 kg
WME-3M2DFB-RYG Tiers: 3 | Rated Voltage: 100-240V AC | Function: Continuous On and flashing | Buzzer: Yes | Luminous Color: Red, Amber, Green | Power Consumption: 4.4 W | Mass: 0.53 kg
WME-402D-RYGB Tiers: 4 | Rated Voltage: 24V DC | Function: Continuous On | Buzzer: None | Luminous Color: Red, Amber, Green, Blue | Power Consumption: 3.0 W | Mass: 0.55 kg
WME-402DFB-RYGB Tiers: 4 | Rated Voltage: 24V DC | Function: Continuous On and flashing | Buzzer: Yes | Luminous Color: Red, Amber, Green, Blue | Power Consumption: 4.2 W | Mass: 0.55 kg
WME-4M2D-RYGB Tiers: 4 | Rated Voltage: 100-240V AC | Function: Continuous On | Buzzer: None | Luminous Color: Red, Amber, Green, Blue | Power Consumption: 4.5 W | Mass: 0.62 kg
WME-4M2DFB-RYGB Tiers: 4 | Rated Voltage: 100-240V AC | Function: Continuous On and flashing | Buzzer: Yes | Luminous Color: Red, Amber, Green, Blue | Power Consumption: 5.7 W | Mass: 0.62 kg
WME-502D-RYGBC Tiers: 5 | Rated Voltage: 24V DC | Function: Continuous On | Buzzer: None | Luminous Color: Red, Amber, Green, Blue, White | Power Consumption: 3.9 W | Mass: 0.64 kg
WME-502DFB-RYGBC Tiers: 5 | Rated Voltage: 24V DC | Function: Continuous On and flashing | Buzzer: Yes | Luminous Color: Red, Amber, Green, Blue, White | Power Consumption: 5.1 W | Mass: 0.64 kg
WME-5M2D-RYGBC Tiers: 5 | Rated Voltage: 100-240V AC | Function: Continuous On | Buzzer: None | Luminous Color: Red, Amber, Green, Blue, White | Power Consumption: 5.8 W | Mass: 0.71 kg
WME-5M2DFB-RYGBC Tiers: 5 | Rated Voltage: 100-240V AC | Function: Continuous On and flashing | Buzzer: Yes | Luminous Color: Red, Amber, Green, Blue, White | Power Consumption: 7.0 W | Mass: 0.71 kg
Signal TowersPATLITE
28 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

PATLITE WME-D Wall Mount Signal Tower, W70 mm

Brand PATLITE·Signal Towers

Available part numbers (28)

WME-102D-R, WME-102D-Y, WME-102D-G, WME-102DFB-R, WME-102DFB-Y, WME-102DFB-G, WME-1M2D-R, WME-1M2D-Y, WME-1M2D-G, WME-1M2DFB-R + 18 more — see full table ↓

How to order

Send the PATLITE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WME-102D-RTiers: 1 | Rated Voltage: 24V DC | Function: Continuous On | Buzzer: None | Luminous Color: Red | Power Consumption: 0.7 W | Mass: 0.28 kg
WME-102D-YTiers: 1 | Rated Voltage: 24V DC | Function: Continuous On | Buzzer: None | Luminous Color: Amber | Power Consumption: 0.9 W | Mass: 0.28 kg
WME-102D-GTiers: 1 | Rated Voltage: 24V DC | Function: Continuous On | Buzzer: None | Luminous Color: Green | Power Consumption: 0.5 W | Mass: 0.28 kg
WME-102DFB-RTiers: 1 | Rated Voltage: 24V DC | Function: Continuous On and flashing | Buzzer: Yes | Luminous Color: Red | Power Consumption: 1.9 W | Mass: 0.28 kg
WME-102DFB-YTiers: 1 | Rated Voltage: 24V DC | Function: Continuous On and flashing | Buzzer: Yes | Luminous Color: Amber | Power Consumption: 2.1 W | Mass: 0.28 kg
WME-102DFB-GTiers: 1 | Rated Voltage: 24V DC | Function: Continuous On and flashing | Buzzer: Yes | Luminous Color: Green | Power Consumption: 1.7 W | Mass: 0.28 kg
WME-1M2D-RTiers: 1 | Rated Voltage: 100-240V AC | Function: Continuous On | Buzzer: None | Luminous Color: Red | Power Consumption: 1.1 W | Mass: 0.35 kg
WME-1M2D-YTiers: 1 | Rated Voltage: 100-240V AC | Function: Continuous On | Buzzer: None | Luminous Color: Amber | Power Consumption: 1.2 W | Mass: 0.35 kg
WME-1M2D-GTiers: 1 | Rated Voltage: 100-240V AC | Function: Continuous On | Buzzer: None | Luminous Color: Green | Power Consumption: 0.9 W | Mass: 0.35 kg
WME-1M2DFB-RTiers: 1 | Rated Voltage: 100-240V AC | Function: Continuous On and flashing | Buzzer: Yes | Luminous Color: Red | Power Consumption: 12.3 W | Mass: 0.35 kg
WME-1M2DFB-YTiers: 1 | Rated Voltage: 100-240V AC | Function: Continuous On and flashing | Buzzer: Yes | Luminous Color: Amber | Power Consumption: 2.4 W | Mass: 0.35 kg
WME-1M2DFB-GTiers: 1 | Rated Voltage: 100-240V AC | Function: Continuous On and flashing | Buzzer: Yes | Luminous Color: Green | Power Consumption: 2.1 W | Mass: 0.35 kg
WME-202D-RYTiers: 2 | Rated Voltage: 24V DC | Function: Continuous On | Buzzer: None | Luminous Color: Red, Amber | Power Consumption: 1.6 W | Mass: 0.37 kg
WME-202DFB-RYTiers: 2 | Rated Voltage: 24V DC | Function: Continuous On and flashing | Buzzer: Yes | Luminous Color: Red, Amber | Power Consumption: 2.8 W | Mass: 0.37 kg
WME-2M2D-RYTiers: 2 | Rated Voltage: 100-240V AC | Function: Continuous On | Buzzer: None | Luminous Color: Red, Amber | Power Consumption: 2.3 W | Mass: 0.44 kg
WME-2M2DFB-RYTiers: 2 | Rated Voltage: 100-240V AC | Function: Continuous On and flashing | Buzzer: Yes | Luminous Color: Red, Amber | Power Consumption: 3.5 W | Mass: 0.44 kg
WME-302D-RYGTiers: 3 | Rated Voltage: 24V DC | Function: Continuous On | Buzzer: None | Luminous Color: Red, Amber, Green | Power Consumption: 2.1 W | Mass: 0.46 kg
WME-302DFB-RYGTiers: 3 | Rated Voltage: 24V DC | Function: Continuous On and flashing | Buzzer: Yes | Luminous Color: Red, Amber, Green | Power Consumption: 3.3 W | Mass: 0.46 kg
WME-3M2D-RYGTiers: 3 | Rated Voltage: 100-240V AC | Function: Continuous On | Buzzer: None | Luminous Color: Red, Amber, Green | Power Consumption: 3.2 W | Mass: 0.53 kg
WME-3M2DFB-RYGTiers: 3 | Rated Voltage: 100-240V AC | Function: Continuous On and flashing | Buzzer: Yes | Luminous Color: Red, Amber, Green | Power Consumption: 4.4 W | Mass: 0.53 kg
WME-402D-RYGBTiers: 4 | Rated Voltage: 24V DC | Function: Continuous On | Buzzer: None | Luminous Color: Red, Amber, Green, Blue | Power Consumption: 3.0 W | Mass: 0.55 kg
WME-402DFB-RYGBTiers: 4 | Rated Voltage: 24V DC | Function: Continuous On and flashing | Buzzer: Yes | Luminous Color: Red, Amber, Green, Blue | Power Consumption: 4.2 W | Mass: 0.55 kg
WME-4M2D-RYGBTiers: 4 | Rated Voltage: 100-240V AC | Function: Continuous On | Buzzer: None | Luminous Color: Red, Amber, Green, Blue | Power Consumption: 4.5 W | Mass: 0.62 kg
WME-4M2DFB-RYGBTiers: 4 | Rated Voltage: 100-240V AC | Function: Continuous On and flashing | Buzzer: Yes | Luminous Color: Red, Amber, Green, Blue | Power Consumption: 5.7 W | Mass: 0.62 kg
WME-502D-RYGBCTiers: 5 | Rated Voltage: 24V DC | Function: Continuous On | Buzzer: None | Luminous Color: Red, Amber, Green, Blue, White | Power Consumption: 3.9 W | Mass: 0.64 kg
WME-502DFB-RYGBCTiers: 5 | Rated Voltage: 24V DC | Function: Continuous On and flashing | Buzzer: Yes | Luminous Color: Red, Amber, Green, Blue, White | Power Consumption: 5.1 W | Mass: 0.64 kg
WME-5M2D-RYGBCTiers: 5 | Rated Voltage: 100-240V AC | Function: Continuous On | Buzzer: None | Luminous Color: Red, Amber, Green, Blue, White | Power Consumption: 5.8 W | Mass: 0.71 kg
WME-5M2DFB-RYGBCTiers: 5 | Rated Voltage: 100-240V AC | Function: Continuous On and flashing | Buzzer: Yes | Luminous Color: Red, Amber, Green, Blue, White | Power Consumption: 7.0 W | Mass: 0.71 kg
