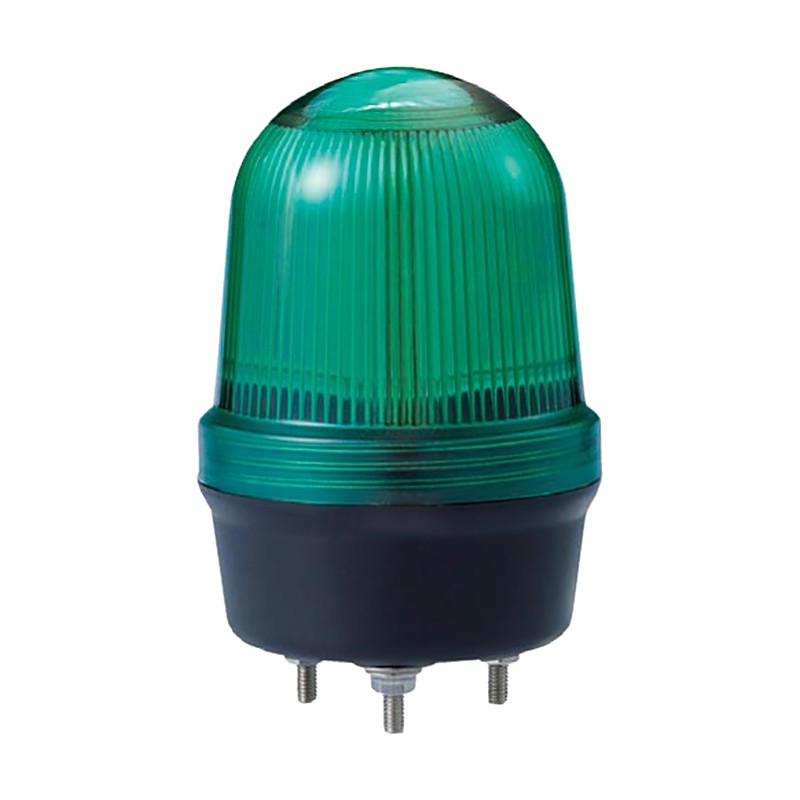

Qlight MFL60 Ø60mm Multiple Function LED Signal Light

Qlight MFL60 Ø60mm Multiple Function LED Signal Light

60 mm multi-function LED signal light with switch-selectable steady, flashing, strobe and simulated revolving modes.

Key features

  • Four functions selectable by DIP switch or external connection: steady, flashing, strobe, simulated revolving
  • Shock and vibration resistant long-life LED
  • Standard or built-in buzzer type
  • Optional M12 connector type (female connector not provided)
  • Wall mount brackets TWS45/TWA45

Specifications

Protection rating IP65
Ambient temperature -30 to +50 °C
Material Lens PC, Housing ABS
Sound level Max.80dB at 1m (BZ type)
Light source LED
RoHS Compliant
Functions Steady, flashing (60-80/min), strobe (70-80/min), simulated revolving (120-140 RPM)
Diameter Ø69mm
Height 100mm
MFL60 Voltage: DC12V-24V, AC110V-220V | Current: Max.118mA (DC), Max.60mA (AC) | Weight: 0.21kg (DC), 0.32kg (AC) | Buzzer option: none or BZ (built-in buzzer) | Colors: R, A, G, B | UL: DC12V-24V
Signal BeaconsQlight
1 product code available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Qlight MFL60 Ø60mm Multiple Function LED Signal Light

Brand Qlight·Signal Beacons

Available part numbers (1)

MFL60

How to order

Send the Qlight part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MFL60Voltage: DC12V-24V, AC110V-220V | Current: Max.118mA (DC), Max.60mA (AC) | Weight: 0.21kg (DC), 0.32kg (AC) | Buzzer option: none or BZ (built-in buzzer) | Colors: R, A, G, B | UL: DC12V-24V
