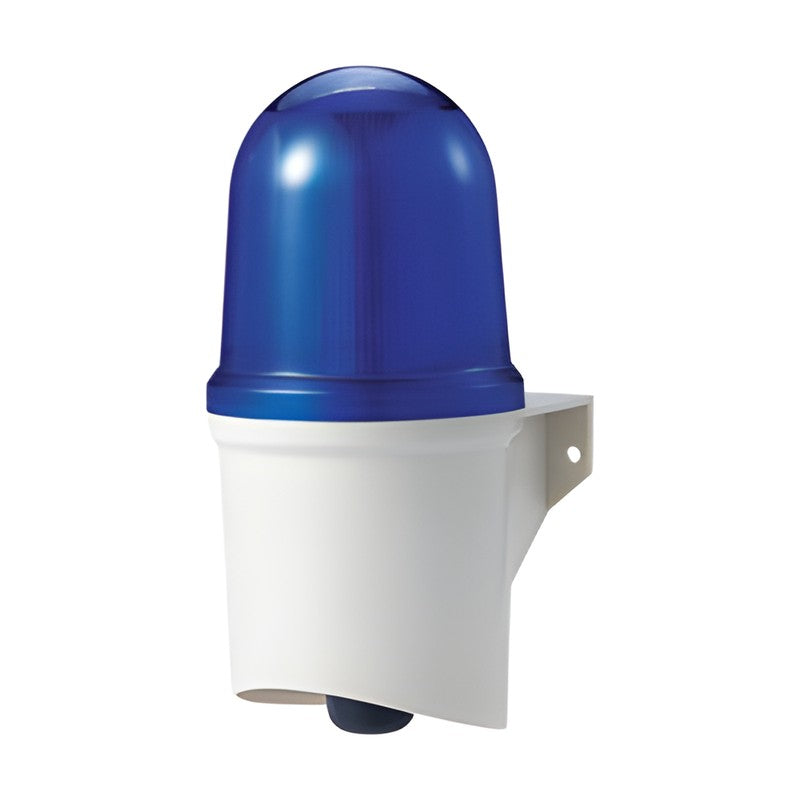

Qlight QAD Wall Mount LED Signal Light with High Volume Buzzer (QAD80BZ/100BZ/125BZ)

Qlight QAD Wall Mount LED Signal Light with High Volume Buzzer (QAD80BZ/100BZ/125BZ)

Wall-mounted dome LED steady/flashing signal light with a built-in high-volume siren buzzer of up to 105 dB.

Key features

  • Visual and audible signal from one wall-mounted unit
  • Siren buzzer output up to 105 dB at 1 m
  • Resonance chamber amplifies the buzzer sound
  • Built-in steady/flashing selection switch, flashing rate 60-80/min

Specifications

Protection rating IP65
Ambient temperature -30 to +50 °C
Materials Lens PC, body ABS
Buzzer volume Max. 105 dB at 1 m
Colors R-Red, A-Amber, G-Green, B-Blue
Mounting Wall mount
Certification UL listed DC24V
Compliance RoHS
QAD80BZ Diameter: Ø83mm | Voltage: DC12V (550mA), DC24V (300mA) | Weight: 0.75kg
QAD100BZ Diameter: Ø97mm | Voltage: DC12V (550mA), DC24V (300mA), AC110V-220V (max. 120mA) | Weight: 0.98kg DC, 1.01kg AC
QAD125BZ Diameter: Ø116mm | Voltage: DC12V (550mA), DC24V (300mA), AC110V-220V (max. 120mA) | Weight: 1.22kg DC, 1.27kg AC
Sounder BeaconsQlight
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Qlight QAD Wall Mount LED Signal Light with High Volume Buzzer (QAD80BZ/100BZ/125BZ)

Brand Qlight·Sounder Beacons

Available part numbers (3)

QAD80BZ, QAD100BZ, QAD125BZ

How to order

Send the Qlight part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
QAD80BZDiameter: Ø83mm | Voltage: DC12V (550mA), DC24V (300mA) | Weight: 0.75kg
QAD100BZDiameter: Ø97mm | Voltage: DC12V (550mA), DC24V (300mA), AC110V-220V (max. 120mA) | Weight: 0.98kg DC, 1.01kg AC
QAD125BZDiameter: Ø116mm | Voltage: DC12V (550mA), DC24V (300mA), AC110V-220V (max. 120mA) | Weight: 1.22kg DC, 1.27kg AC
