• Qlight QELT-UL Recognized LED Light Bar for Distribution Panels
1 1

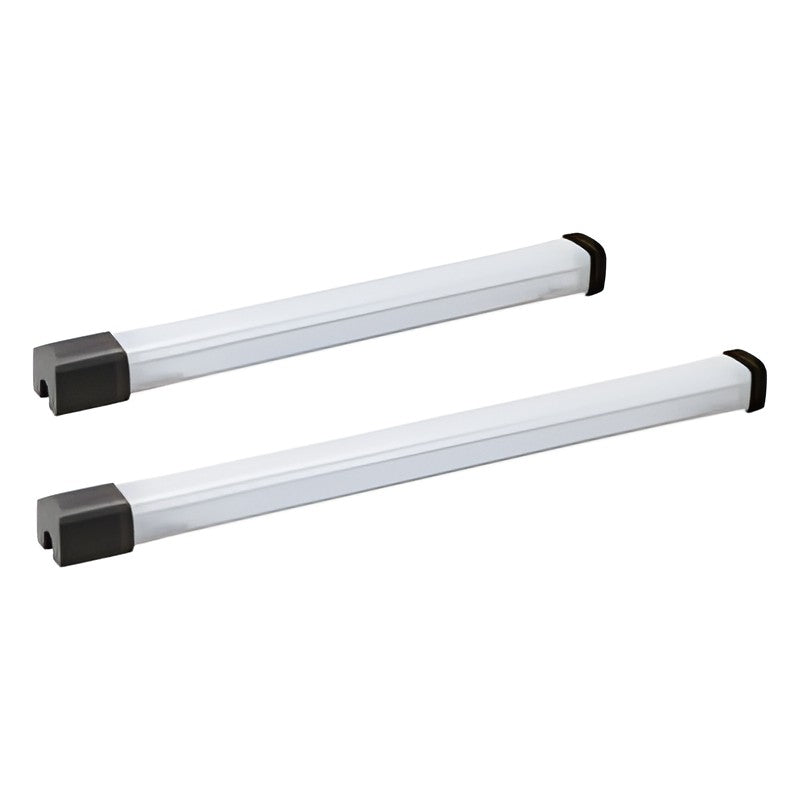

Qlight QELT-UL Recognized LED Light Bar for Distribution Panels

Qlight QELT-UL Recognized LED Light Bar for Distribution Panels

UL-recognized (RU) terminal-box LED light bar for distribution panels, AC110V-120V direct connection.

Key features

  • Wide direct light distribution for high illumination in distribution panels
  • Built-in terminal for easy wiring
  • LED direct AC connect system; no other power device needed
  • Lengths 200/300/400/500 mm
  • Detachable mounting bracket with free hole spacing

Specifications

Voltage AC110V-120V
Operating voltage range AC98V-132V
Lens Translucent
Light color Cooldaylight
Color temperature 6,000-7,000K
Protection rating Non-waterproof (indoor use)
Ambient temperature -30 to +50 °C
Materials Lens-PC, Side cover-ABS, Bracket-STS201
Certificates UL (RU)
QELT-200-UL Length: 249 mm | Luminous flux: 370lm | Illumination at 1m: 95Lux | Power: 5W | Weight: 0.10kg
QELT-300-UL Length: 349 mm | Luminous flux: 780lm | Illumination at 1m: 200Lux | Power: 9W | Weight: 0.12kg
QELT-400-UL Length: 449 mm | Luminous flux: 1,180lm | Illumination at 1m: 300Lux | Power: 13W | Weight: 0.15kg
QELT-500-UL Length: 549 mm | Luminous flux: 1,310lm | Illumination at 1m: 335Lux | Power: 15W | Weight: 0.17kg
LED Light BarsQlight
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Qlight QELT-UL Recognized LED Light Bar for Distribution Panels

Brand Qlight·LED Light Bars

Available part numbers (4)

QELT-200-UL, QELT-300-UL, QELT-400-UL, QELT-500-UL

How to order

Send the Qlight part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
QELT-200-ULLength: 249 mm | Luminous flux: 370lm | Illumination at 1m: 95Lux | Power: 5W | Weight: 0.10kg
QELT-300-ULLength: 349 mm | Luminous flux: 780lm | Illumination at 1m: 200Lux | Power: 9W | Weight: 0.12kg
QELT-400-ULLength: 449 mm | Luminous flux: 1,180lm | Illumination at 1m: 300Lux | Power: 13W | Weight: 0.15kg
QELT-500-ULLength: 549 mm | Luminous flux: 1,310lm | Illumination at 1m: 335Lux | Power: 15W | Weight: 0.17kg
