• Qlight QGL / QGLC Compact Indoor LED Light Bar
1 1

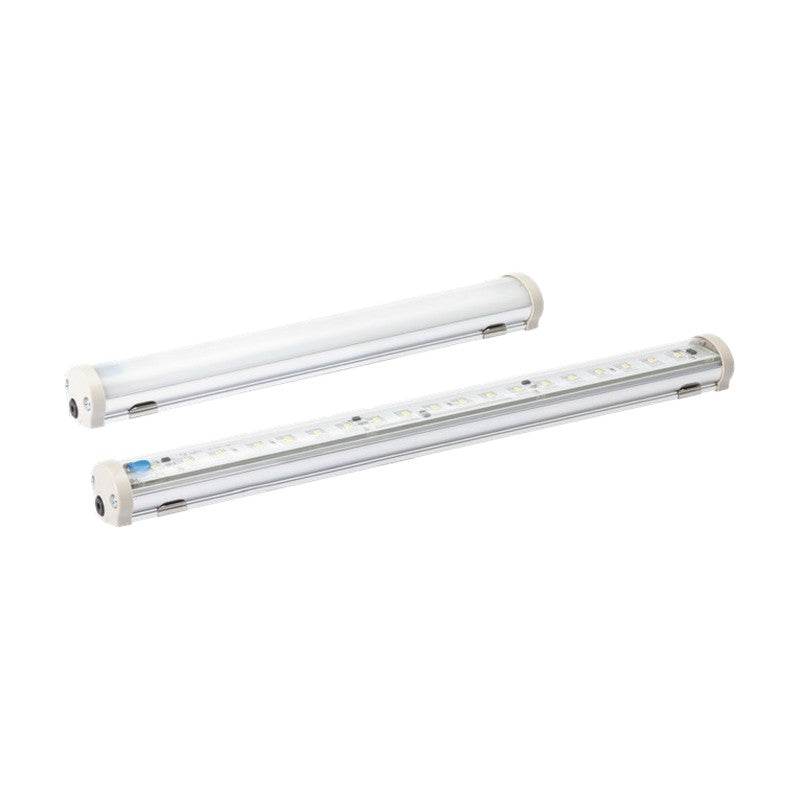

Qlight QGL / QGLC Compact Indoor LED Light Bar

Qlight QGL / QGLC Compact Indoor LED Light Bar

Compact indoor LED light bar on an aluminum base with direct AC connection (no external power supply), QGL translucent or QGLC transparent lens.

Key features

  • Aluminum base protects against heat for stable illumination
  • Compact alternative to fluorescent lighting with high illumination
  • LED direct AC connect system; no other power device needed
  • Lengths 200/300/400/500 mm
  • Removable mount bracket with adjustable mounting distance
  • Cable standard; M12 connector on request

Specifications

Operating voltage range DC21.5V-26.5V / AC98V-121V / AC198V-245V
Light color Cooldaylight
Color temperature 6,000-7,000K
Protection rating Non-waterproof (indoor use)
Ambient temperature -30 to +50 °C
Materials Lens-PC, Side cover-ABS, Heatsink-Al, Bracket-STS201
Width x Height 38 x 34 mm
Certificates CE
QGL-200 Lens: Translucent | Length: 200 mm | Voltage: DC24V | Luminous flux: DC 260lm | Illumination at 1m: DC 70Lux | Power: DC 4W | Weight: 0.12kg
QGLC-200 Lens: Transparent | Length: 200 mm | Voltage: DC24V | Luminous flux: DC 330lm | Illumination at 1m: DC 85Lux | Power: DC 4W | Weight: 0.12kg
QGL-300 Lens: Translucent | Length: 300 mm | Voltage: DC24V, AC220V | Luminous flux: DC 400lm, AC 450lm | Illumination at 1m: DC 140Lux, AC 180Lux | Power: DC 6W, AC 8W | Weight: 0.17kg
QGLC-300 Lens: Transparent | Length: 300 mm | Voltage: DC24V, AC220V | Luminous flux: DC 500lm, AC 550lm | Illumination at 1m: DC 170Lux, AC 200Lux | Power: DC 6W, AC 8W | Weight: 0.17kg
QGL-400 Lens: Translucent | Length: 400 mm | Voltage: DC24V, AC220V | Luminous flux: DC 600lm, AC 700lm | Illumination at 1m: DC 200Lux, AC 250Lux | Power: DC 8W, AC 10W | Weight: 0.23kg
QGLC-400 Lens: Transparent | Length: 400 mm | Voltage: DC24V, AC220V | Luminous flux: DC 750lm, AC 800lm | Illumination at 1m: DC 250Lux, AC 300Lux | Power: DC 8W, AC 10W | Weight: 0.23kg
QGL-500 Lens: Translucent | Length: 500 mm | Voltage: DC24V, AC220V | Luminous flux: DC 800lm, AC 900lm | Illumination at 1m: DC 280Lux, AC 310Lux | Power: DC 11W, AC 14W | Weight: 0.28kg
QGLC-500 Lens: Transparent | Length: 500 mm | Voltage: DC24V, AC220V | Luminous flux: DC 900lm, AC 1,000lm | Illumination at 1m: DC 350Lux, AC 400Lux | Power: DC 11W, AC 14W | Weight: 0.28kg
LED Light BarsQlight
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Qlight QGL / QGLC Compact Indoor LED Light Bar

Brand Qlight·LED Light Bars

Available part numbers (8)

QGL-200, QGLC-200, QGL-300, QGLC-300, QGL-400, QGLC-400, QGL-500, QGLC-500

How to order

Send the Qlight part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
QGL-200Lens: Translucent | Length: 200 mm | Voltage: DC24V | Luminous flux: DC 260lm | Illumination at 1m: DC 70Lux | Power: DC 4W | Weight: 0.12kg
QGLC-200Lens: Transparent | Length: 200 mm | Voltage: DC24V | Luminous flux: DC 330lm | Illumination at 1m: DC 85Lux | Power: DC 4W | Weight: 0.12kg
QGL-300Lens: Translucent | Length: 300 mm | Voltage: DC24V, AC220V | Luminous flux: DC 400lm, AC 450lm | Illumination at 1m: DC 140Lux, AC 180Lux | Power: DC 6W, AC 8W | Weight: 0.17kg
QGLC-300Lens: Transparent | Length: 300 mm | Voltage: DC24V, AC220V | Luminous flux: DC 500lm, AC 550lm | Illumination at 1m: DC 170Lux, AC 200Lux | Power: DC 6W, AC 8W | Weight: 0.17kg
QGL-400Lens: Translucent | Length: 400 mm | Voltage: DC24V, AC220V | Luminous flux: DC 600lm, AC 700lm | Illumination at 1m: DC 200Lux, AC 250Lux | Power: DC 8W, AC 10W | Weight: 0.23kg
QGLC-400Lens: Transparent | Length: 400 mm | Voltage: DC24V, AC220V | Luminous flux: DC 750lm, AC 800lm | Illumination at 1m: DC 250Lux, AC 300Lux | Power: DC 8W, AC 10W | Weight: 0.23kg
QGL-500Lens: Translucent | Length: 500 mm | Voltage: DC24V, AC220V | Luminous flux: DC 800lm, AC 900lm | Illumination at 1m: DC 280Lux, AC 310Lux | Power: DC 11W, AC 14W | Weight: 0.28kg
QGLC-500Lens: Transparent | Length: 500 mm | Voltage: DC24V, AC220V | Luminous flux: DC 900lm, AC 1,000lm | Illumination at 1m: DC 350Lux, AC 400Lux | Power: DC 11W, AC 14W | Weight: 0.28kg
