Qlight QL-PL Series LED Moisture Proof Light IP65

Qlight QL-PL Series LED Moisture Proof Light IP65

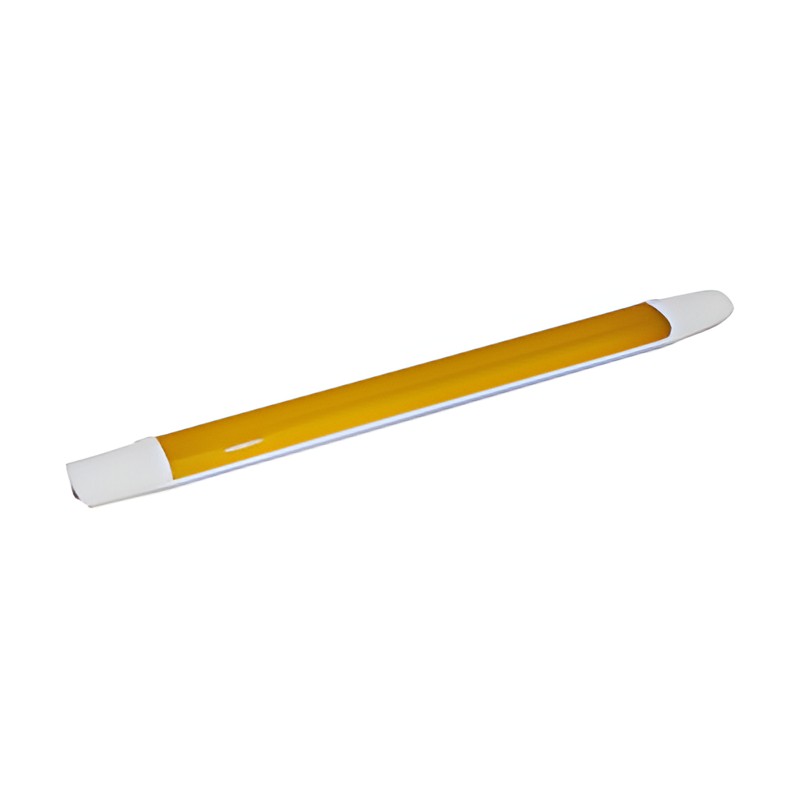

IP65 polycarbonate LED moisture-proof light for AC220V, 600 or 1200 mm, in warm white or cooldaylight, designed for parallel connection.

Key features

  • Maintains bright illumination long-term with dust-resistant design
  • Fully enclosed IP65 structure for dusty or moist environments
  • Designed for parallel connection between units
  • For internal lighting of semiconductor and display equipment

Specifications

Rated voltage AC220V/60Hz
Lens Translucent
Protection rating IP65
Ambient temperature -20 to +40 °C
Materials Housing-PC, Side cover-PC, Bracket-STS
Certificates KS, CE
QL-PL-600-A Length: 620 mm | Light: Warm white 3,000K | Luminous flux: 1,200lm | Illumination at 1m: 500Lux | Current: 110mA | Power: 25W | Weight: 0.147kg
QL-PL-600-W Length: 620 mm | Light: Cooldaylight 6,500K | Luminous flux: 1,500lm | Illumination at 1m: 550Lux | Current: 110mA | Power: 25W | Weight: 0.147kg
QL-PL-1200-A Length: 1,220 mm | Light: Warm white 3,000K | Luminous flux: 3,500lm | Illumination at 1m: 1,200Lux | Current: 190mA | Power: 46W | Weight: 0.283kg
QL-PL-1200-W Length: 1,220 mm | Light: Cooldaylight 6,500K | Luminous flux: 3,500lm | Illumination at 1m: 1,400Lux | Current: 190mA | Power: 46W | Weight: 0.283kg
LED Light BarsQlight
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Qlight QL-PL Series LED Moisture Proof Light IP65

Brand Qlight·LED Light Bars

Available part numbers (4)

QL-PL-600-A, QL-PL-600-W, QL-PL-1200-A, QL-PL-1200-W

How to order

Send the Qlight part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
QL-PL-600-ALength: 620 mm | Light: Warm white 3,000K | Luminous flux: 1,200lm | Illumination at 1m: 500Lux | Current: 110mA | Power: 25W | Weight: 0.147kg
QL-PL-600-WLength: 620 mm | Light: Cooldaylight 6,500K | Luminous flux: 1,500lm | Illumination at 1m: 550Lux | Current: 110mA | Power: 25W | Weight: 0.147kg
QL-PL-1200-ALength: 1,220 mm | Light: Warm white 3,000K | Luminous flux: 3,500lm | Illumination at 1m: 1,200Lux | Current: 190mA | Power: 46W | Weight: 0.283kg
QL-PL-1200-WLength: 1,220 mm | Light: Cooldaylight 6,500K | Luminous flux: 3,500lm | Illumination at 1m: 1,400Lux | Current: 190mA | Power: 46W | Weight: 0.283kg
