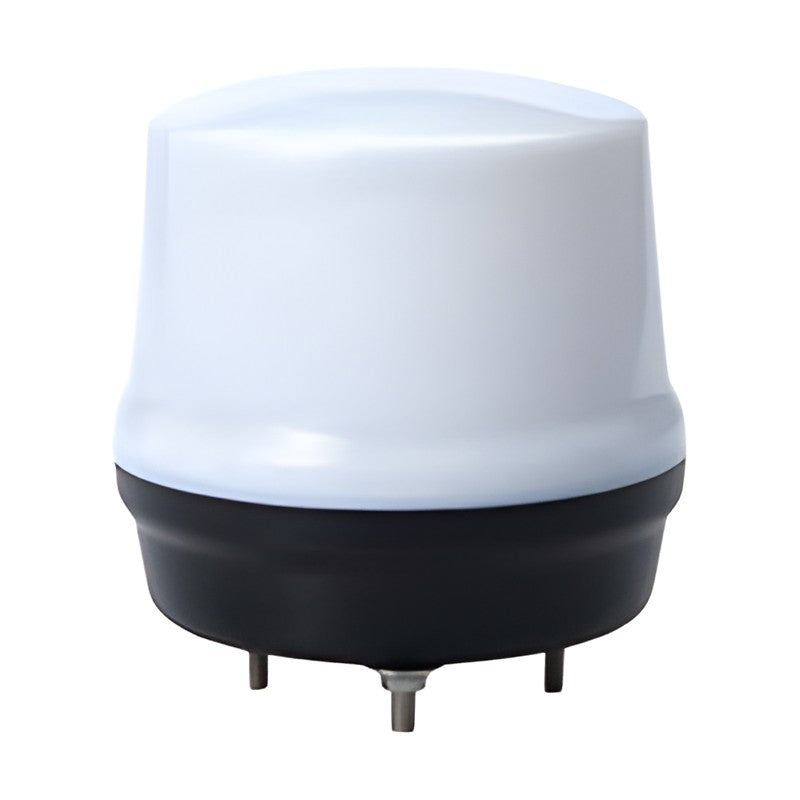

Qlight QMCL125-WIZ Ø125 Wireless Multi-Color LED Steady Signal Light

Ø125 mm single-unit LED signal light producing 7 colors, remotely monitored and controlled over a Zigbee wireless network.

Key features

7 signal colors from one light unit: red, green, blue, amber, cyan, purple, white
Translucent when off; soft LED illumination in the selected color
Zigbee (IEEE 802.15.4) 2.4 GHz mesh network with multi-hop routing, up to 100 m between devices
Optional built-in buzzer with 5 channels (BZ)
Wall mount brackets SWP125 / SWM125 available

Specifications

Protection rating	IP65
Ambient temperature	-30 to +50 °C
Material	Lens PC, housing ABS
Voltage	DC12V, DC24V
Weight	0.34kg
Size	Ø116 x 110 mm
Sound level	Max.80dB at 1m (BZ)
Light source current	300mA (DC12V), 185mA (DC24V)
Buzzer current	70mA (DC12V), 40mA (DC24V)
Certificates	CE, FCC
Mount	Direct

QMCL125-WIZ		Buzzer: None \| Voltage: DC12V, DC24V \| Colors: 7
QMCL125-WIZ-BZ		Buzzer: Built-in \| Voltage: DC12V, DC24V \| Colors: 7

Wireless Signal TowersQlight

2 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Qlight QMCL125-WIZ Ø125 Wireless Multi-Color LED Steady Signal Light

Brand Qlight·Wireless Signal Towers

Available part numbers (2)

QMCL125-WIZ, QMCL125-WIZ-BZ

How to order

Send the Qlight part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
