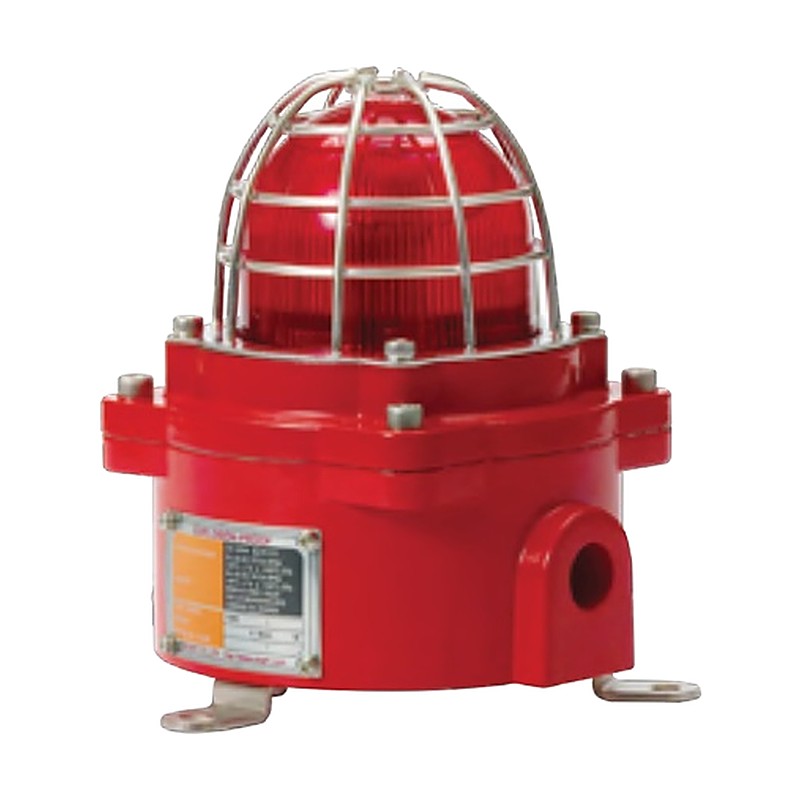

Qlight QNE Explosion-Proof Multifunction LED Signal Beacon, Ø92 mm
Qlight QNE Explosion-Proof Multifunction LED Signal Beacon, Ø92 mm
Compact Ø92 mm flameproof LED signal beacon with switch-selectable light functions for Zone 1/2.
Key features
- Flameproof Ex d IIC multifunction LED beacon
- Steady, flashing (60-80/min), strobe (70-80/min) or simulated revolving (120-140 RPM) by switch
- Long-life LED; excellent shock and vibration resistance
- Customization: 2 cable entries, M20x1.5 or 3/4" NPT entry
Specifications
| Light source | LED steady/flashing, strobe, simulated revolving (switch selectable) |
|---|---|
| Protection rating | IP66 |
| Cable entry | 1/2" NPT |
| Materials | Lens tempered glass, cage STS316L, housing Al or STS316L (-SUS) |
| Colors | R, A, G, B |
| Housing color | Red or Munsell 7.5BG 7/2 |
| Usage area | Zone 1, Zone 2 |
| Explosion protection | Ex db IIC T6/T5 Gb; Ex tb IIIC T85/T100°C Db |
| Ambient temperature | -40 to +60 °C (T5), +50 °C (T6) |
| Voltage | DC12V-24V (max. 350mA), AC110V-230V (max. 110mA) |
| Certificates | IECEx, ATEX, NEPSI, KCs, CCC |
| QNE | Housing: Al | Weight: 2.05kg | |
| QNE-SUS | Housing: STS316L | Weight: 4.65kg |
Explosion-Proof Signal LightsQlight
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
Need a different model, or a part not listed here? Send us your parts list →
Qlight QNE Explosion-Proof Multifunction LED Signal Beacon, Ø92 mm
Available part numbers (2)
QNE, QNE-SUS
How to order
Send the Qlight part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
Qlight
Explosion-Proof Signal Lights
Photo on request
Product codes & specifications
| Product code | Spec | ||
|---|---|---|---|
| QNE | Housing: Al | Weight: 2.05kg | ||
| QNE-SUS | Housing: STS316L | Weight: 4.65kg |
