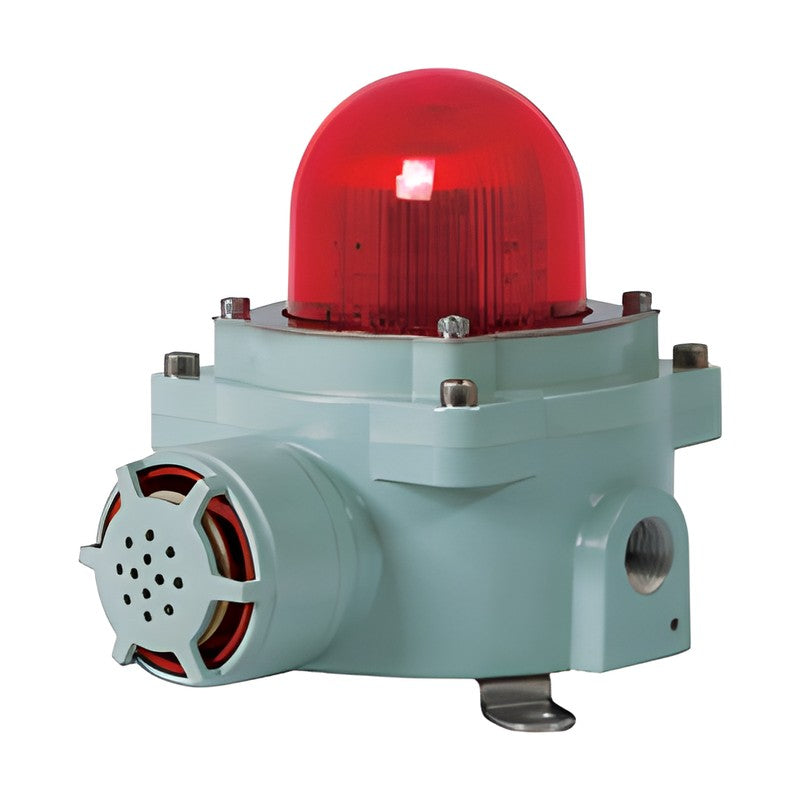

Qlight QNEB Flameproof and Intrinsically Safe LED Beacon with Siren Buzzer, 100 dB, Ø82 mm

Qlight QNEB Flameproof and Intrinsically Safe LED Beacon with Siren Buzzer, 100 dB, Ø82 mm

Compact Ex db ib IIC LED beacon with siren buzzer and switch-selectable light functions.

Key features

  • Flameproof and intrinsic safety (Ex db ib IIC T5/T6 Gb)
  • Steady, flashing, strobe or simulated revolving light by switch
  • Siren buzzer max. 100 dB
  • Customization: built-in protection cage, 2 cable entries, M20x1.5 entry

Specifications

Light source LED steady/flashing, strobe, simulated revolving (switch selectable)
Protection rating IP66
Cable entry 1/2" NPT
Materials Lens tempered glass, housing Al
Colors R, A, G, B
Housing color Red or Munsell 7.5BG 7/2
Usage area Zone 1, Zone 2
Sound level Max. 100 dB buzzer
Explosion protection Ex db ib IIC T5/T6 Gb
Ambient temperature -40 to +60 °C (T5), +50 °C (T6)
Voltage DC12V-24V (max. 380mA), AC110V-230V (max. 190mA)
Certificates NEPSI, CCC
QNEB Voltage: DC12V-24V, AC110V-230V | Weight: 2.30kg DC, 2.42kg AC
Sounder BeaconsQlight
1 product code available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Qlight QNEB Flameproof and Intrinsically Safe LED Beacon with Siren Buzzer, 100 dB, Ø82 mm

Brand Qlight·Sounder Beacons

Available part numbers (1)

QNEB

How to order

Send the Qlight part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
QNEBVoltage: DC12V-24V, AC110V-230V | Weight: 2.30kg DC, 2.42kg AC
