Qlight QWCD35T/QWCD50T LED Strobe Beacon and Sounder with Terminal Box

Qlight QWCD35T/QWCD50T LED Strobe Beacon and Sounder with Terminal Box

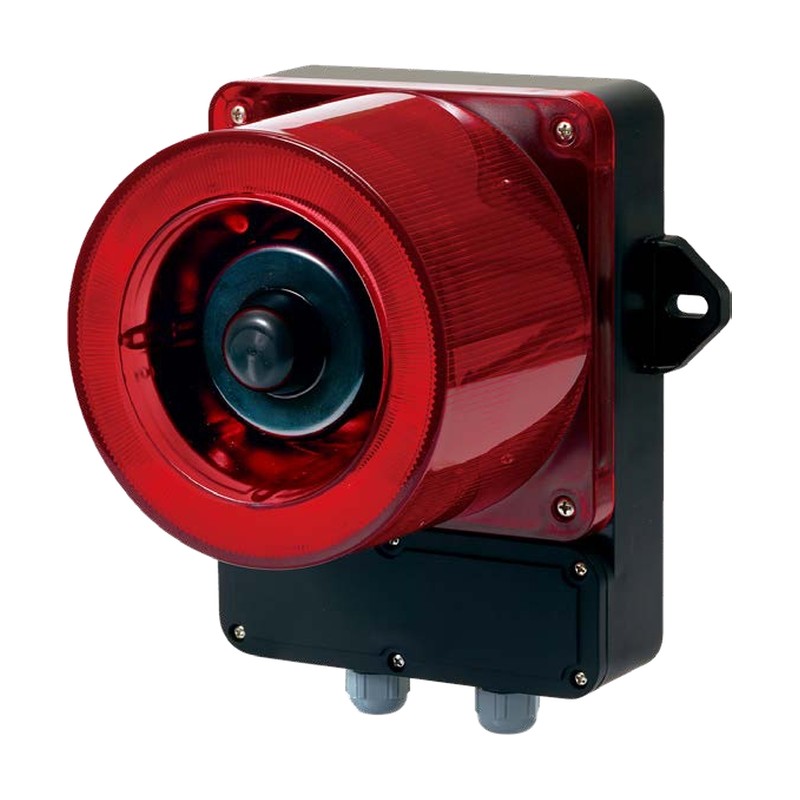

Terminal-box version of the QWCD LED strobe beacon and electronic sounder combination with two cable glands for easy wiring.

Key features

  • Separate terminal box with 2 cable glands for convenient wiring
  • Horn cover acts as the LED strobe light globe
  • 31 pre-recorded tones; TSD versions play user MP3 files from SD card
  • IP66 sealing for heavy-duty, marine and outdoor use

Specifications

Protection rating IP66
Ambient temperature -30 to +50 °C (SD card type -20 to +50 °C; low-temperature DC type -50 to +50 °C)
Materials Horn PC, housing PC+ABS
Colors R-Red, A-Amber, G-Green, B-Blue
Cable entry M20 cable gland
Certification UL listed DC12V-24V
Compliance RoHS
Qlight QWCD35T/QWCD50T LED Strobe Beacon and Sounder with Terminal Box - reference 2
QWCD35T Voltage: DC12V-24V (max. 1.35A), AC110V-220V (max. 350mA) | Sound: 31 built-in, max. 115dB | Weight: 1.30kg
QWCD35TSD Voltage: DC12V-24V (max. 1.35A), AC110V-220V (max. 350mA) | Sound: built-in max. 115dB, MP3 max. 112dB (SD card) | Weight: 1.35kg
QWCD50T Voltage: DC12V-24V (max. 4.65A), AC110V-220V (max. 900mA) | Sound: 31 built-in, max. 123dB | Weight: 3.10kg
QWCD50TSD Voltage: DC12V-24V (max. 4.65A), AC110V-220V (max. 900mA) | Sound: built-in max. 123dB, MP3 max. 115dB (SD card) | Weight: 3.40kg
Sounder BeaconsQlight
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Qlight QWCD35T/QWCD50T LED Strobe Beacon and Sounder with Terminal Box

Brand Qlight·Sounder Beacons

Available part numbers (4)

QWCD35T, QWCD35TSD, QWCD50T, QWCD50TSD

How to order

Send the Qlight part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
Qlight QWCD35T/QWCD50T LED Strobe Beacon and Sounder with Terminal Box - reference 2
0 selected
RFQ List (0)
Product codeSpec
QWCD35TVoltage: DC12V-24V (max. 1.35A), AC110V-220V (max. 350mA) | Sound: 31 built-in, max. 115dB | Weight: 1.30kg
QWCD35TSDVoltage: DC12V-24V (max. 1.35A), AC110V-220V (max. 350mA) | Sound: built-in max. 115dB, MP3 max. 112dB (SD card) | Weight: 1.35kg
QWCD50TVoltage: DC12V-24V (max. 4.65A), AC110V-220V (max. 900mA) | Sound: 31 built-in, max. 123dB | Weight: 3.10kg
QWCD50TSDVoltage: DC12V-24V (max. 4.65A), AC110V-220V (max. 900mA) | Sound: built-in max. 123dB, MP3 max. 115dB (SD card) | Weight: 3.40kg
