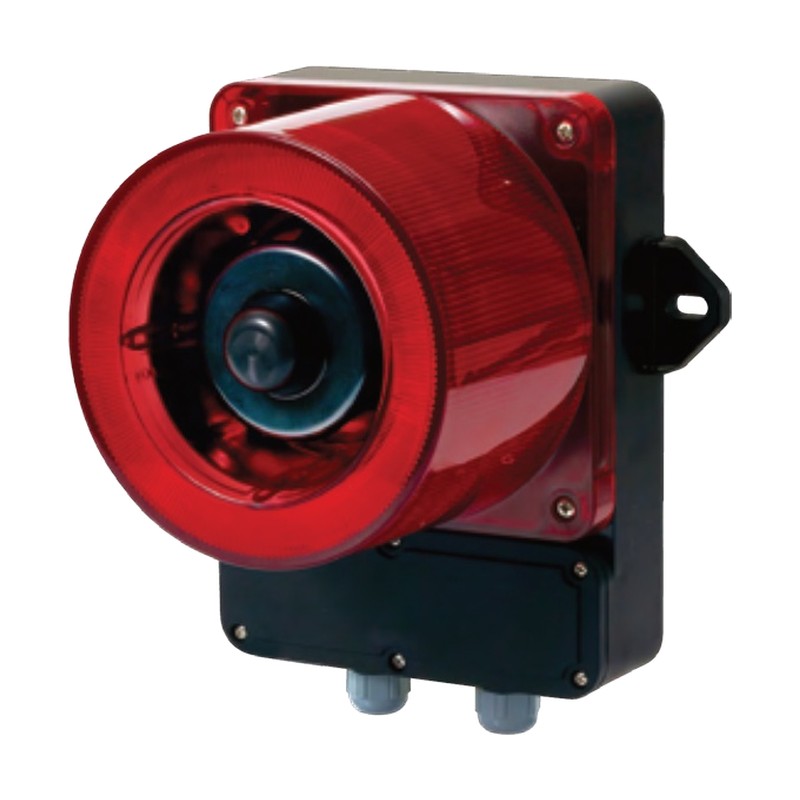

Qlight QWCD50-TI Telephone-Initiated LED Strobe and Alarm Sounder, 123 dB

Large telephone-initiated LED strobe light and high-output alarm sounder, triggered by the phone ring signal.

Key features

Telephone initiated: built-in alarm activates on 25 Hz telephone ring signal
Connects to a 2-wire PSTN telephone line
Highly noticeable telephone alarm for noisy environments
31 pre-recorded sounds via binary input, volume adjustable
Terminal box with 2 cable entries

Specifications

Protection rating	IP66
Cable entry	M20
Mounting	Wall mount
Transistor input	NPN
Telephone line	Idle 45-55VDC; ring AC25V-120V, 15-55 Hz
Sound level	Max. 123 dB (Ch16)
Materials	Horn PC, housing PC+ABS
Ambient temperature	-30 to +50 °C (cold type DC -50 °C)
Colors	R, A, G, B
Flashing rate	60-80 flashes/min

QWCD50-TI

Voltage: DC12V (4.69A), DC24V (2.5A), AC110V-220V (max. 920mA) | Weight: 3.10kg DC, 3.40kg AC
