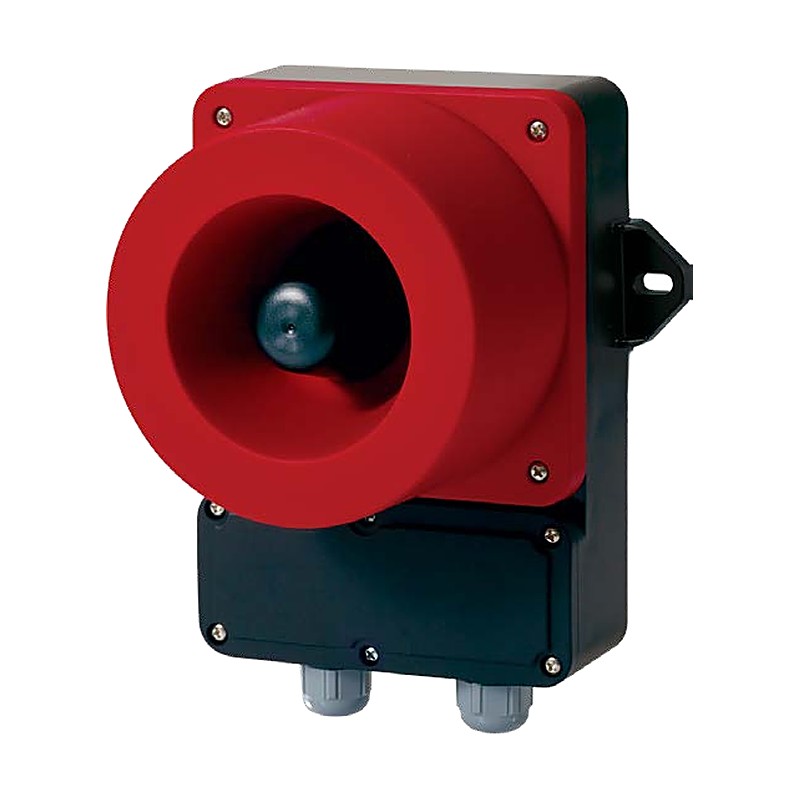

• Qlight QWH35T/QWH50T Wall Mount Electronic Sounder with Terminal Box
1 1

Qlight QWH35T/QWH50T Wall Mount Electronic Sounder with Terminal Box

Qlight QWH35T/QWH50T Wall Mount Electronic Sounder with Terminal Box

Terminal-box version of the IP66 QWH electronic sounder with 31 pre-recorded warning sounds and optional SD card MP3 playback.

Key features

  • Separate terminal box with 2 cable glands for easy wiring
  • 31 pre-recorded warning sounds; TSD versions play user MP3 messages
  • IP66 sealing for outdoor installation

Specifications

Protection rating IP66
Ambient temperature -30 to +50 °C (SD card type -20 to +50 °C; low-temperature DC type -50 to +50 °C)
Materials Horn PC+ABS, housing PC+ABS
Cable entry M20
Voltage DC12V-24V, AC110V-220V
Certification UL listed DC12V-24V
Compliance RoHS
Qlight QWH35T/QWH50T Wall Mount Electronic Sounder with Terminal Box - reference 2
QWH35T Sound: 31 built-in, max. 115dB | Current: DC max. 1.15A, AC max. 300mA | Weight: 1.10kg
QWH35TSD Sound: built-in max. 115dB, MP3 max. 112dB (SD card) | Current: DC max. 1.15A, AC max. 300mA | Weight: 1.15kg
QWH50T Sound: 31 built-in, max. 123dB | Current: DC max. 3.6A, AC max. 730mA | Weight: 3.00kg
QWH50TSD Sound: built-in max. 123dB, MP3 max. 115dB (SD card) | Current: DC max. 3.6A, AC max. 730mA | Weight: 3.10kg
Signal HornsQlight
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Qlight QWH35T/QWH50T Wall Mount Electronic Sounder with Terminal Box

Brand Qlight·Signal Horns

Available part numbers (4)

QWH35T, QWH35TSD, QWH50T, QWH50TSD

How to order

Send the Qlight part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
Qlight QWH35T/QWH50T Wall Mount Electronic Sounder with Terminal Box - reference 2
0 selected
RFQ List (0)
Product codeSpec
QWH35TSound: 31 built-in, max. 115dB | Current: DC max. 1.15A, AC max. 300mA | Weight: 1.10kg
QWH35TSDSound: built-in max. 115dB, MP3 max. 112dB (SD card) | Current: DC max. 1.15A, AC max. 300mA | Weight: 1.15kg
QWH50TSound: 31 built-in, max. 123dB | Current: DC max. 3.6A, AC max. 730mA | Weight: 3.00kg
QWH50TSDSound: built-in max. 123dB, MP3 max. 115dB (SD card) | Current: DC max. 3.6A, AC max. 730mA | Weight: 3.10kg
