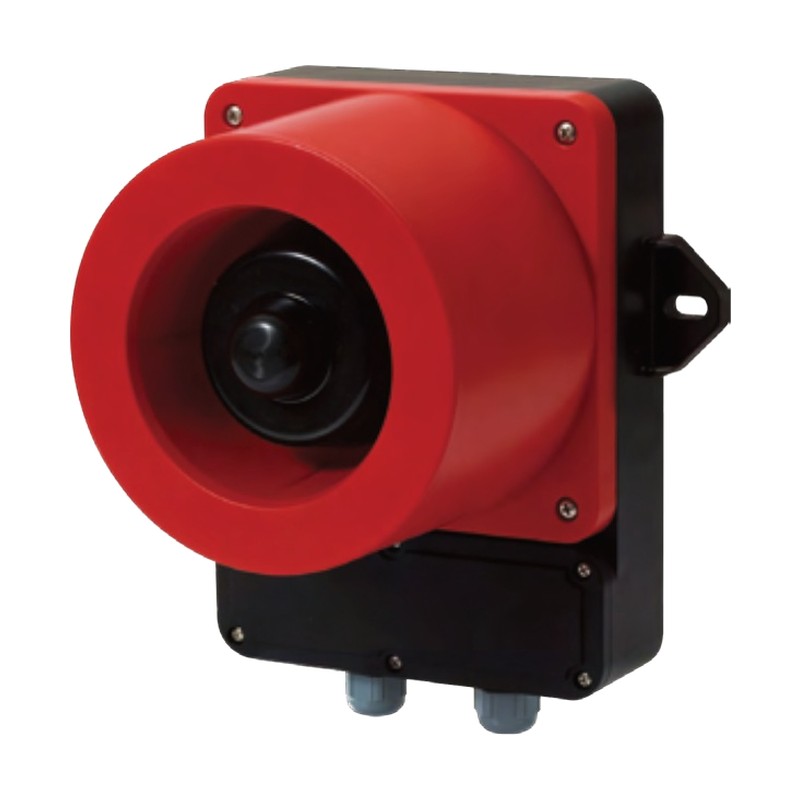

Qlight QWH50-TI Telephone-Initiated Wall Mount Electronic Sounder, 123 dB

High-output telephone-initiated wall-mount electronic sounder with 31 pre-recorded warning sounds.

Key features

Telephone initiated: built-in alarm activates on 25 Hz telephone ring signal
Connects to a 2-wire PSTN telephone line
Highly noticeable telephone alarm for noisy environments
31 pre-recorded sounds via binary input, volume adjustable
Terminal box with 2 cable entries

Specifications

Protection rating	IP66
Cable entry	M20
Mounting	Wall mount
Transistor input	NPN
Telephone line	Idle 45-55VDC; ring AC25V-120V, 15-55 Hz
Sound level	Max. 123 dB (Ch16)
Materials	Horn PC+ABS, housing PC+ABS
Ambient temperature	-30 to +50 °C (cold type DC -50 °C)

QWH50-TI

Voltage: DC12V (3.62A), DC24V (1.78A), AC110V-220V (max. 750mA) | Weight: 3.00kg

Signal HornsQlight

1 product code available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Qlight QWH50-TI Telephone-Initiated Wall Mount Electronic Sounder, 123 dB

Brand Qlight·Signal Horns

Available part numbers (1)

QWH50-TI

How to order

Send the Qlight part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
