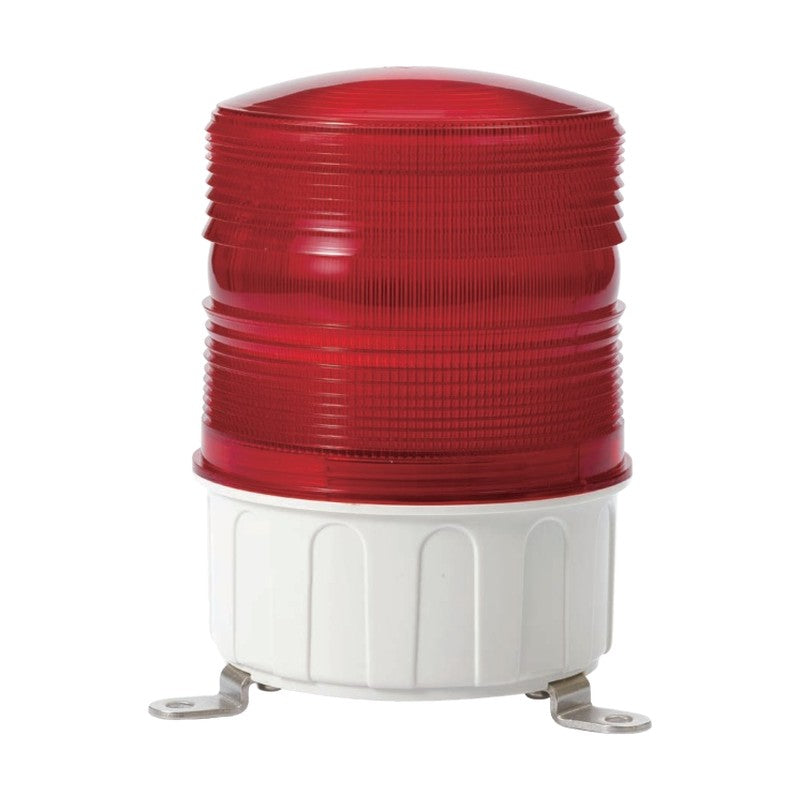

Qlight S150US/S150US-FT Ø150mm Large Xenon Lamp Strobe Signal Light

Qlight S150US/S150US-FT Ø150mm Large Xenon Lamp Strobe Signal Light

Large 150 mm xenon lamp strobe signal light with optional mounting bracket (FT).

Key features

  • Connector type lamp socket for convenient lamp replacement
  • -FT type has mounting bracket for convenient installation
  • Optional hyper illuminance xenon lamp BH0647(G) (S150UHS/S150UHS-FT)
  • Standard or built-in buzzer type

Specifications

Diameter Ø138mm
Protection rating IP44
Sound level Max.90dB at 1m (BZ type)
Material Lens PC, Housing ABS, Mounting bracket STS316L
Ambient temperature -30 to +50 °C
Flashing rate 60-80/min
Light source Xenon lamp (U type, EUB0641-1A(G))
S150US Voltage: DC12V-24V, AC110V, AC220V | Current: Max.1.3A (DC), 260mA (AC110V), 270mA (AC220V) | Mount: self stand | Height: 193mm | Weight: 0.56kg (DC), 0.54kg (AC) | Buzzer option: none or BZ (built-in buzzer) | Colors: R, A, G, B
S150US-FT Voltage: DC12V-24V, AC110V, AC220V | Current: Max.1.3A (DC), 260mA (AC110V), 270mA (AC220V) | Mount: mounting bracket | Height: 196mm | Weight: 0.56kg (DC), 0.54kg (AC) | Buzzer option: none or BZ (built-in buzzer) | Colors: R, A, G, B
Signal BeaconsQlight
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Qlight S150US/S150US-FT Ø150mm Large Xenon Lamp Strobe Signal Light

Brand Qlight·Signal Beacons

Available part numbers (2)

S150US, S150US-FT

How to order

Send the Qlight part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
S150USVoltage: DC12V-24V, AC110V, AC220V | Current: Max.1.3A (DC), 260mA (AC110V), 270mA (AC220V) | Mount: self stand | Height: 193mm | Weight: 0.56kg (DC), 0.54kg (AC) | Buzzer option: none or BZ (built-in buzzer) | Colors: R, A, G, B
S150US-FTVoltage: DC12V-24V, AC110V, AC220V | Current: Max.1.3A (DC), 260mA (AC110V), 270mA (AC220V) | Mount: mounting bracket | Height: 196mm | Weight: 0.56kg (DC), 0.54kg (AC) | Buzzer option: none or BZ (built-in buzzer) | Colors: R, A, G, B
