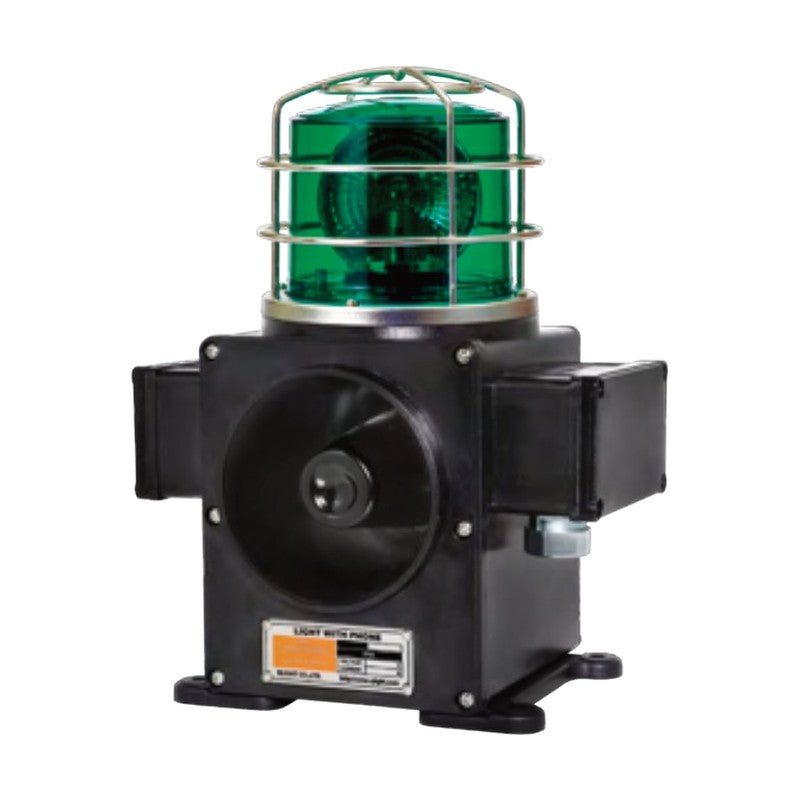

Qlight SCDFL / SCDWL LED Steady/Flashing Beacon with Electronic Sounder, 113 dB
Qlight SCDFL / SCDWL LED Steady/Flashing Beacon with Electronic Sounder, 113 dB
Lightweight LED steady/flashing beacon and electronic sounder combination for vessels and heavy industry.
Key features
- Multi-layer LED reflector, built-in steady/flashing switch, 60-80 flashes/min
- Lightweight PC+GF housing with standard protection cage
- Recessed horn protects against external impact
- Side terminal box for easy wiring
- Detachable bracket: self mount (SCDF) or wall mount (SCDW)
- 25 selectable sounds; customization: external sound selection (-LC), 3/4" PF entry, cable gland
Specifications
| Protection rating | IP66 |
|---|---|
| Cable entry | 1/2" PF |
| Materials | Lens PC, housing PC+GF, cage STS316L |
| Sound level | Max. 113 dB at 1 m |
| Sounds | WS 5 warning sounds, WP 5 special warning sounds, WM 5 melodies, WA 5 alarms, WV 5 customizable voices |
| Colors | R, A, G, B |
| Transistor input | NPN |
| Light source | LED steady/flashing |
| Ambient temperature | -30 to +50 °C |
| Voltage | DC12V (2A), DC24V (1.5A), AC110V (370mA), AC220V (200mA) |
| SCDFL | Mounting: self mount | Weight: 2.52kg | |
| SCDWL | Mounting: wall mount | Weight: 3.46kg |
Sounder BeaconsQlight
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
Need a different model, or a part not listed here? Send us your parts list →
Qlight SCDFL / SCDWL LED Steady/Flashing Beacon with Electronic Sounder, 113 dB
Available part numbers (2)
SCDFL, SCDWL
How to order
Send the Qlight part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
Qlight
Sounder Beacons
Photo on request
Product codes & specifications
| Product code | Spec | ||
|---|---|---|---|
| SCDFL | Mounting: self mount | Weight: 2.52kg | ||
| SCDWL | Mounting: wall mount | Weight: 3.46kg |
