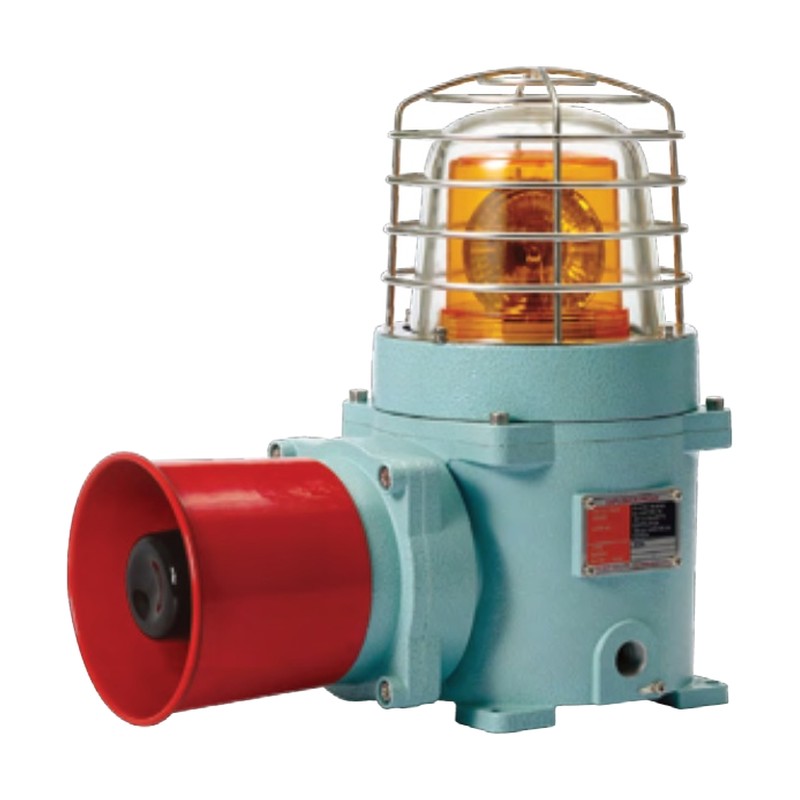

Qlight SESALR Explosion-Proof LED Revolving Beacon with Electronic Sounder, 118 dB

Qlight SESALR Explosion-Proof LED Revolving Beacon with Electronic Sounder, 118 dB

Large flameproof led revolving beacon with 118 dB electronic sounder for Zone 1/2 hazardous areas.

Key features

  • LED light collecting system, 120-140 RPM
  • Large flameproof signal beacon and 118 dB electronic sounder combination
  • 25 selectable sounds via internal switches; volume adjustable
  • Integrated housing and terminal box, IP66
  • Customization: external sound selection (-LC), 2 cable entries, 3/4" NPT/M20/M25 entry, KCs IIC (SESAKC)

Specifications

Sound level WS/WP/WM max. 118 dB, WA max. 116 dB, WV 110-115 dB
Sounds WS 5 warning sounds, WP 5 special warning sounds, WM 5 melodies, WA 5 alarms, WV 5 customizable voices
Explosion protection Ex db IIC T6 Gb (IECEx/ATEX/NEPSI/CCS); KCs Ex d IIB+H2 T6
Protection rating IP66
Ambient temperature -40 to +60 °C (KCs +55 °C; TS -20 °C)
Materials Lens tempered glass, housing Al, cage STS316L
Cable entry 1/2" NPT
Colors R, A, G, B
Usage area Zone 1, Zone 2
Transistor input NPN
Certificates IECEx, ATEX, NEPSI, CCC, KCs, CCS, CCC(F), TS (series)
Light source LED revolving
SESALR Voltage: DC24V (1.16A), AC120V (280mA), AC230V (160mA) | Weight: 7.92-8.31kg
Sounder BeaconsQlight
1 product code available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Qlight SESALR Explosion-Proof LED Revolving Beacon with Electronic Sounder, 118 dB

Brand Qlight·Sounder Beacons

Available part numbers (1)

SESALR

How to order

Send the Qlight part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SESALRVoltage: DC24V (1.16A), AC120V (280mA), AC230V (160mA) | Weight: 7.92-8.31kg
