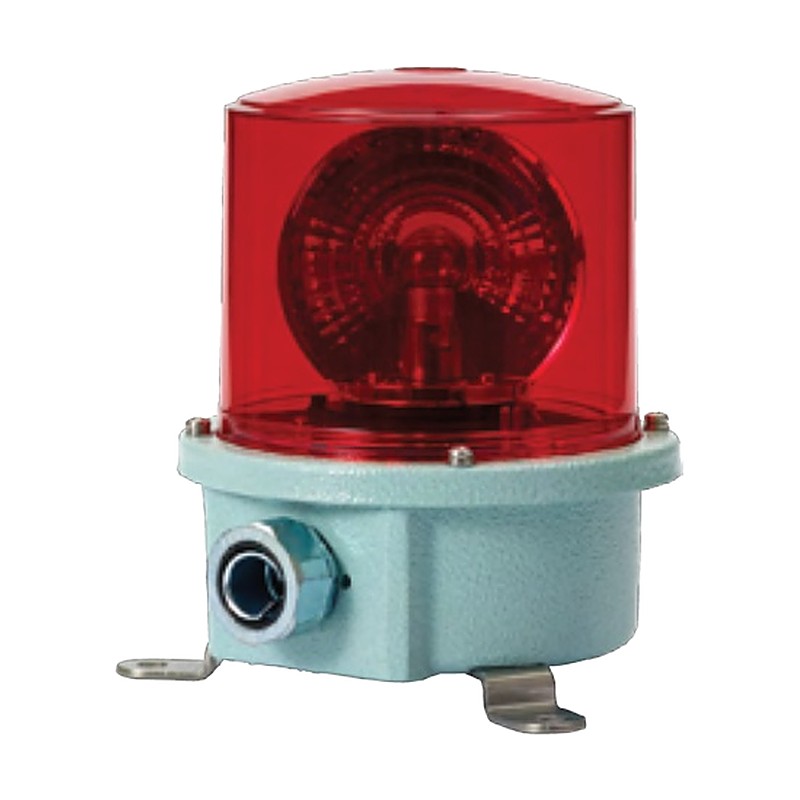

Qlight SH1 Bulb Revolving Beacon, Ø125 mm, for Vessels and Heavy Industry

Qlight SH1 Bulb Revolving Beacon, Ø125 mm, for Vessels and Heavy Industry

Ø125 mm heavy-duty bulb revolving beacon with aluminum or stainless housing.

Key features

  • Multi-faceted reflector for excellent light diffusion, 120-140 RPM
  • Low-noise, low-wear power transmission system
  • Aluminum housing and polycarbonate lens resist shock and vibration
  • Hermetic structure blocks water and dust (IP66)
  • Standard, protection cage (P), terminal box (T) and cage+terminal box (TP) versions
  • Customization: 3/4" PF cable entry, cable gland, 2-cable-entry terminal box (-2TP)

Specifications

Protection rating IP66
Cable entry 1/2" PF
Housing color Munsell 7.5BG 7/2
Materials Lens PC, housing Al (STS316L for -SUS), cage/bracket STS316L
Light source Bulb revolving (15W G23 15S)
Ambient temperature -20 to +50 °C
Lens diameter Ø125 mm
Voltage DC12V (1.55A), DC24V (850mA), AC110V (200mA), AC220V (100mA)
Colors R, A, G, B
Certificates CE (DC24V)
SH1 Type: standard | Housing: Al | Weight: 1.61kg | Certificates: CCS
SH1-SUS Type: standard | Housing: STS316L | Weight: 2.05kg
SH1P Type: protection cage | Housing: Al | Weight: 1.86kg | Certificates: CCS
SH1P-SUS Type: protection cage | Housing: STS316L | Weight: 2.30kg
SH1T Type: terminal box, 15C nipple | Weight: 2.07kg
SH1TP Type: protection cage and terminal box | Weight: 2.32kg
Rotating Warning LightsQlight
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Qlight SH1 Bulb Revolving Beacon, Ø125 mm, for Vessels and Heavy Industry

Brand Qlight·Rotating Warning Lights

Available part numbers (6)

SH1, SH1-SUS, SH1P, SH1P-SUS, SH1T, SH1TP

How to order

Send the Qlight part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SH1Type: standard | Housing: Al | Weight: 1.61kg | Certificates: CCS
SH1-SUSType: standard | Housing: STS316L | Weight: 2.05kg
SH1PType: protection cage | Housing: Al | Weight: 1.86kg | Certificates: CCS
SH1P-SUSType: protection cage | Housing: STS316L | Weight: 2.30kg
SH1TType: terminal box, 15C nipple | Weight: 2.07kg
SH1TPType: protection cage and terminal box | Weight: 2.32kg
