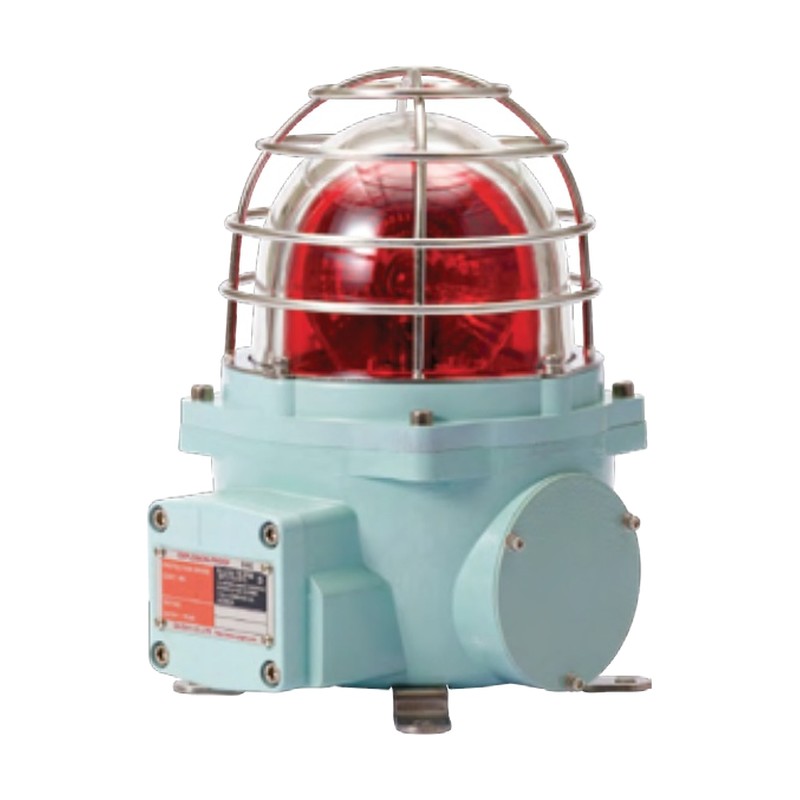

Qlight SNE Explosion-Proof Bulb Revolving Beacon, Ø130 mm

Qlight SNE Explosion-Proof Bulb Revolving Beacon, Ø130 mm

Ø130 mm flameproof bulb revolving beacon for Zone 1/2 hazardous areas.

Key features

  • Multi-faceted reflector, 15W G23 15S bulb, 120-140 RPM
  • Lightweight, compact flameproof beacon with integrated terminal box
  • Aluminum housing, IP66 fully enclosed
  • Customization: Ex cable gland, 2 cable entries, M20x1.5 entry, 48VDC

Specifications

Protection rating IP66
Cable entry 1/2" NPT
Housing color Munsell 7.5BG 7/2
Materials Lens tempered glass, housing Al, cage STS316L
Colors R, A, G, B
Usage area Zone 1, Zone 2
Explosion protection Ex db IIC T6 Gb (IECEx/ATEX/NEPSI); Ex d IIC T6 (KCs, TIIS)
Ambient temperature -40 to +60 °C (KCs +55 °C; TIIS -20 to +55 °C)
Light source Bulb revolving
Certificates IECEx, ATEX, NEPSI, KCs, CCS, CCC(F), TIIS, CCC (series)
SNE Voltage: DC12V (1.3A), DC24V (690mA), AC120V (160mA), AC230V (90mA) | Weight: 3.25kg DC, 3.95kg AC
