• Qlight STA45SLM Ø45mm Slim LED Steady Tower Light, Direct Mount
1 1

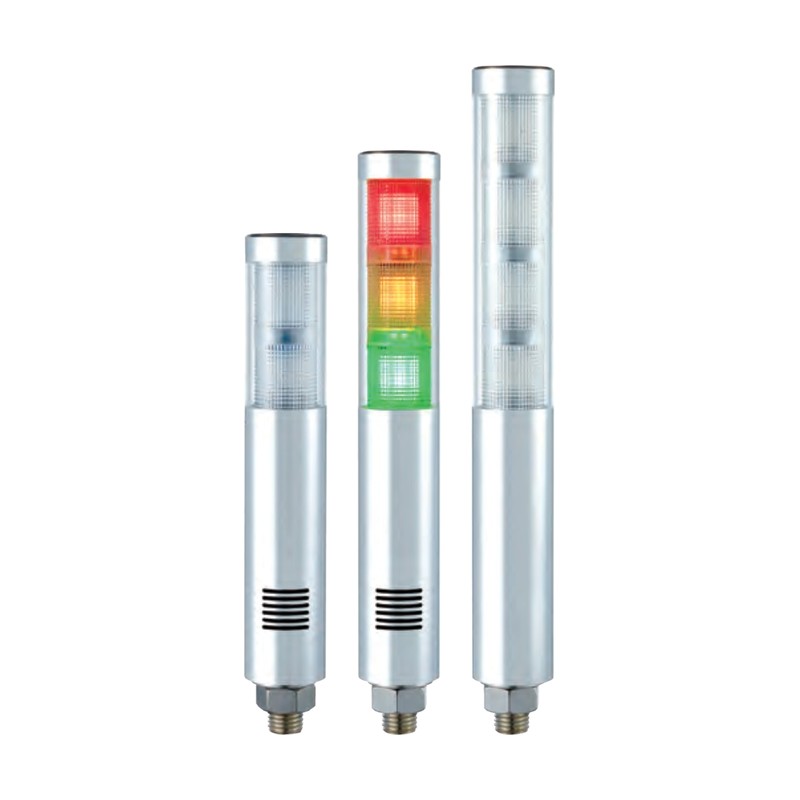

Qlight STA45SLM Ø45mm Slim LED Steady Tower Light, Direct Mount

Qlight STA45SLM Ø45mm Slim LED Steady Tower Light, Direct Mount

Ø45mm direct-mount slim LED steady tower light with aluminium housing, available with built-in buzzer.

Key features

  • Ø45mm direct mount tower light with aluminium housing
  • Standard and built-in buzzer models available
  • Excellent visibility from high-brightness LEDs with a special diffusion lens
  • Lens stays semi-transparent in the signal color when off
  • Steady mode with fixed user-selected color arrangement; flashing possible via external contact
  • Wiring by external contact or NPN/PNP transistor

Specifications

Lens diameter Ø45mm
Mount Direct mount
Materials Lens acrylic, inner lens AS, housing Al
Ambient temperature -30 to +50 °C
Protection rating IP44 standard, IP23 buzzer type
Sound volume Max. 90dB at 1m
Light source LED
Voltage DC12V, DC24V
Certifications CE (DC24V), UL (DC24V)
Mounting thread M20 x 2.5
STA45SLM Function: Steady | Layers: 1-5 | Voltage: DC12V, DC24V | Colors: R, A, G, B, W | Weight: 0.50-0.68kg
STA45SLM-BZ Function: Steady with built-in buzzer | Layers: 1-5 | Voltage: DC12V, DC24V | Colors: R, A, G, B, W
Signal Tower LightsQlight
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Qlight STA45SLM Ø45mm Slim LED Steady Tower Light, Direct Mount

Brand Qlight·Signal Tower Lights

Available part numbers (2)

STA45SLM, STA45SLM-BZ

How to order

Send the Qlight part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
STA45SLMFunction: Steady | Layers: 1-5 | Voltage: DC12V, DC24V | Colors: R, A, G, B, W | Weight: 0.50-0.68kg
STA45SLM-BZFunction: Steady with built-in buzzer | Layers: 1-5 | Voltage: DC12V, DC24V | Colors: R, A, G, B, W

Need a different model, or a part not listed here? Send us your parts list →
