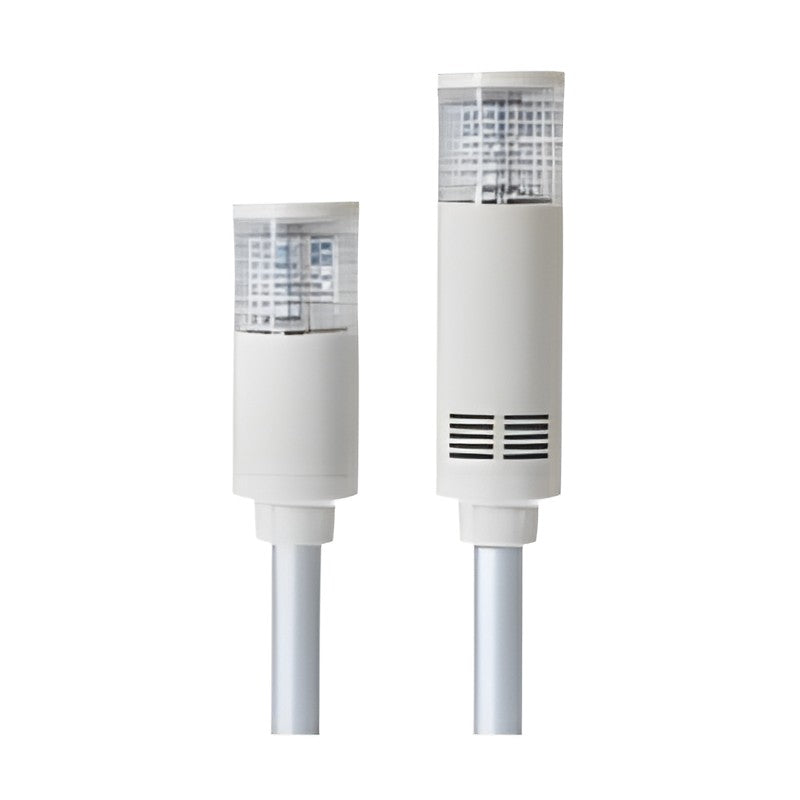

Qlight STC45L Ø45mm Multi-Color LED Steady/Flashing Tower Light, Pole mount

Qlight STC45L Ø45mm Multi-Color LED Steady/Flashing Tower Light, Pole mount

Ø45mm pole mount multi-color LED tower light showing 2 or 3 colors from a single layer.

Key features

  • Economical tower light delivering two to three signals with one layer
  • Lifetime of over 20,000 hours with high-intensity multi-color LED
  • Available with built-in buzzer; 2 buzzer sound types available on request
  • Customized color arrangements and M12 connector type available

Specifications

Lens diameter Ø45mm
Mount Pole mount
Materials Lens PC, housing ABS, pole Al
Ambient temperature -30 to +60 °C
Protection rating IP44 standard, IP23 buzzer type
Sound volume Max. 90dB at 1m
Flashing rate 60-80/min
Light source current DC12V 95mA, DC24V 100mA, AC110V 30mA, AC220V 15mA
Certifications CE (DC24V)
RoHS Compliant
STC45L Function: Steady | Colors: 2 (R, G) or 3 (R, A, G) | Voltage: DC12V, DC24V, AC110V, AC220V | Weight: 0.33-0.47kg | Brackets: LB18, LW18, QZ18, SZ18, QL18, SL18
STC45L-BZ Function: Steady with built-in buzzer | Colors: 2 (R, G) or 3 (R, A, G) | Voltage: DC12V, DC24V, AC110V, AC220V | Weight: 0.33-0.47kg | Brackets: LB18, LW18, QZ18, SZ18, QL18, SL18
STC45LF Function: Steady/Flashing | Colors: 2 (R, G) or 3 (R, A, G) | Voltage: DC12V, DC24V, AC110V, AC220V | Weight: 0.33-0.47kg | Brackets: LB18, LW18, QZ18, SZ18, QL18, SL18
STC45LF-BZ Function: Steady/Flashing with built-in buzzer | Colors: 2 (R, G) or 3 (R, A, G) | Voltage: DC12V, DC24V, AC110V, AC220V | Weight: 0.33-0.47kg | Brackets: LB18, LW18, QZ18, SZ18, QL18, SL18
Signal Tower LightsQlight
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Qlight STC45L Ø45mm Multi-Color LED Steady/Flashing Tower Light, Pole mount

Brand Qlight·Signal Tower Lights

Available part numbers (4)

STC45L, STC45L-BZ, STC45LF, STC45LF-BZ

How to order

Send the Qlight part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
STC45LFunction: Steady | Colors: 2 (R, G) or 3 (R, A, G) | Voltage: DC12V, DC24V, AC110V, AC220V | Weight: 0.33-0.47kg | Brackets: LB18, LW18, QZ18, SZ18, QL18, SL18
STC45L-BZFunction: Steady with built-in buzzer | Colors: 2 (R, G) or 3 (R, A, G) | Voltage: DC12V, DC24V, AC110V, AC220V | Weight: 0.33-0.47kg | Brackets: LB18, LW18, QZ18, SZ18, QL18, SL18
STC45LFFunction: Steady/Flashing | Colors: 2 (R, G) or 3 (R, A, G) | Voltage: DC12V, DC24V, AC110V, AC220V | Weight: 0.33-0.47kg | Brackets: LB18, LW18, QZ18, SZ18, QL18, SL18
STC45LF-BZFunction: Steady/Flashing with built-in buzzer | Colors: 2 (R, G) or 3 (R, A, G) | Voltage: DC12V, DC24V, AC110V, AC220V | Weight: 0.33-0.47kg | Brackets: LB18, LW18, QZ18, SZ18, QL18, SL18
