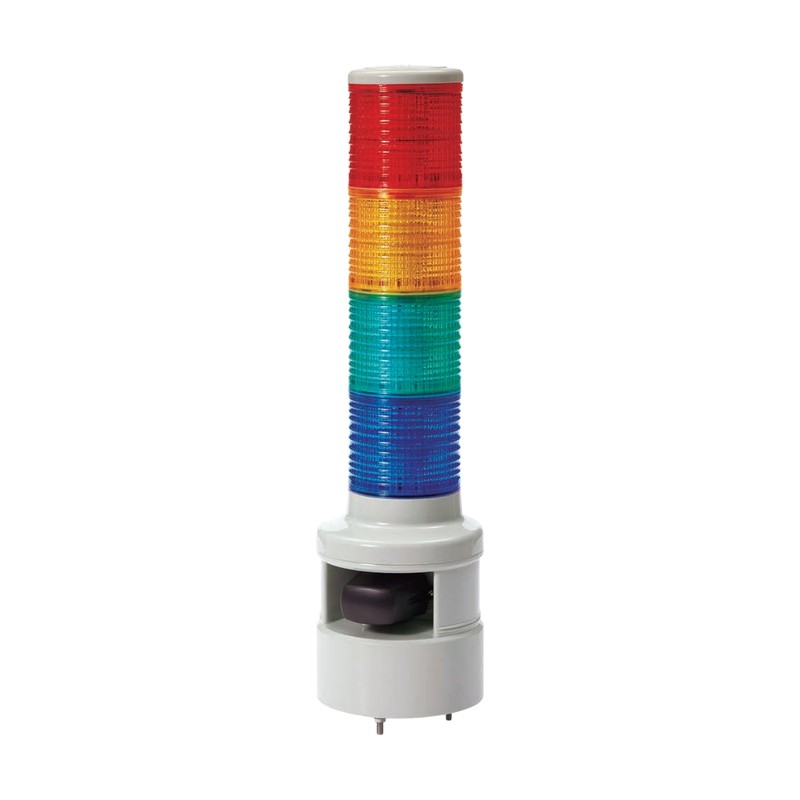

Qlight STD Ø80mm LED Tower Light and Electric Horn Combination

Ø80 mm stackable LED tower light with 1 to 5 tiers combined with an electric horn on a Ø119 mm base.

Key features

LED steady or steady/flashing tower light with electric horn
Sound groups: WS 5 warning sounds, WM 5 melodies, WA 5 alarms, WV 5 customizable sounds
Horn volume up to 105 dB at 1 m
Customized color arrangements and light sources available
Wiring by external contact or NPN transistor

Specifications

Protection rating	IP54
Ambient temperature	-30 to +50 °C
Materials	Lens AS, cover ABS, housing ABS, reflector heat-resistant ABS
Layers	1-5
Voltage	DC12V, DC24V, AC110V, AC220V
Colors	R, A, G, B, W
Flashing rate	60-80/min
Compliance	RoHS

Qlight STD Ø80mm LED Tower Light and Electric Horn Combination - reference 2

STDL		Function: Steady \| Layers: 1-5 \| Weight: 0.80-1.74kg
STDLF		Function: Steady/Flashing \| Layers: 1-5 \| Weight: 0.80-1.74kg

Sounder BeaconsQlight

2 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Qlight STD Ø80mm LED Tower Light and Electric Horn Combination

Brand Qlight·Sounder Beacons

Available part numbers (2)

STDL, STDLF
