Qlight STND100 Ø100mm Signal Light with Multifunctional Electric Horn (SD card MP3)

Qlight STND100 Ø100mm Signal Light with Multifunctional Electric Horn (SD card MP3)

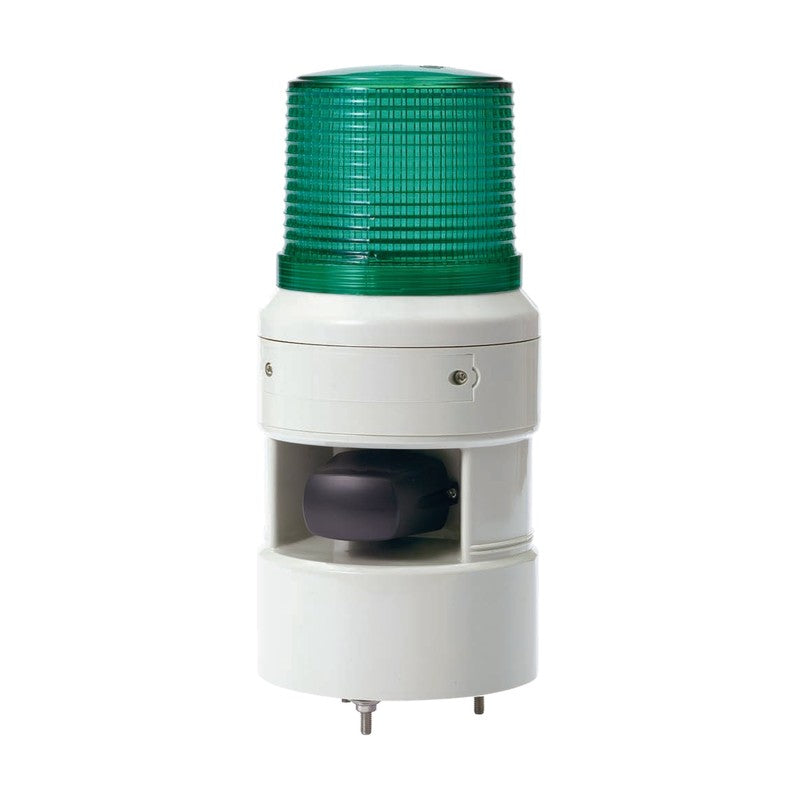

Self-standing Ø100 mm signal light with multifunctional electric horn offering 30 built-in sounds and SD card MP3 playback, in LED revolving, LED steady/flashing or bulb revolving versions.

Key features

  • 30 built-in sounds; bit input 5 ch (6 groups) and binary input 30 ch
  • Built-in sounds max. 105 dB at 1 m; MP3 max. 98 dB
  • LED revolving version with LED light collecting system and multifaceted reflector
  • LED steady/flashing version with scattering lens, 60-80 flashes/min

Specifications

Protection rating IP54
Materials Lens AS, housing ABS, reflector heat-resistant ABS
Colors R-Red, A-Amber, G-Green, B-Blue
Lens Ø101mm
Body diameter Ø119mm
Height 261mm
Compliance RoHS
Qlight STND100 Ø100mm Signal Light with Multifunctional Electric Horn (SD card MP3) - reference 2
STND100LR Light source: LED revolving 120-140 RPM | Voltage: DC12V (650mA), DC24V (450mA), AC110V-220V | Ambient temperature: -20 to +50 °C
STND100L Light source: LED steady/flashing | Voltage: DC12V-24V, AC110V-220V | Ambient temperature: -30 to +50 °C
STND100R Light source: Bulb revolving 10W T16x35 15S, 120-140 RPM | Voltage: DC12V (1.2A), DC24V (865mA), AC110V-220V | Ambient temperature: -20 to +50 °C
Sounder BeaconsQlight
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Qlight STND100 Ø100mm Signal Light with Multifunctional Electric Horn (SD card MP3)

Brand Qlight·Sounder Beacons

Available part numbers (3)

STND100LR, STND100L, STND100R

How to order

Send the Qlight part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
Qlight STND100 Ø100mm Signal Light with Multifunctional Electric Horn (SD card MP3) - reference 2
0 selected
RFQ List (0)
Product codeSpec
STND100LRLight source: LED revolving 120-140 RPM | Voltage: DC12V (650mA), DC24V (450mA), AC110V-220V | Ambient temperature: -20 to +50 °C
STND100LLight source: LED steady/flashing | Voltage: DC12V-24V, AC110V-220V | Ambient temperature: -30 to +50 °C
STND100RLight source: Bulb revolving 10W T16x35 15S, 120-140 RPM | Voltage: DC12V (1.2A), DC24V (865mA), AC110V-220V | Ambient temperature: -20 to +50 °C
