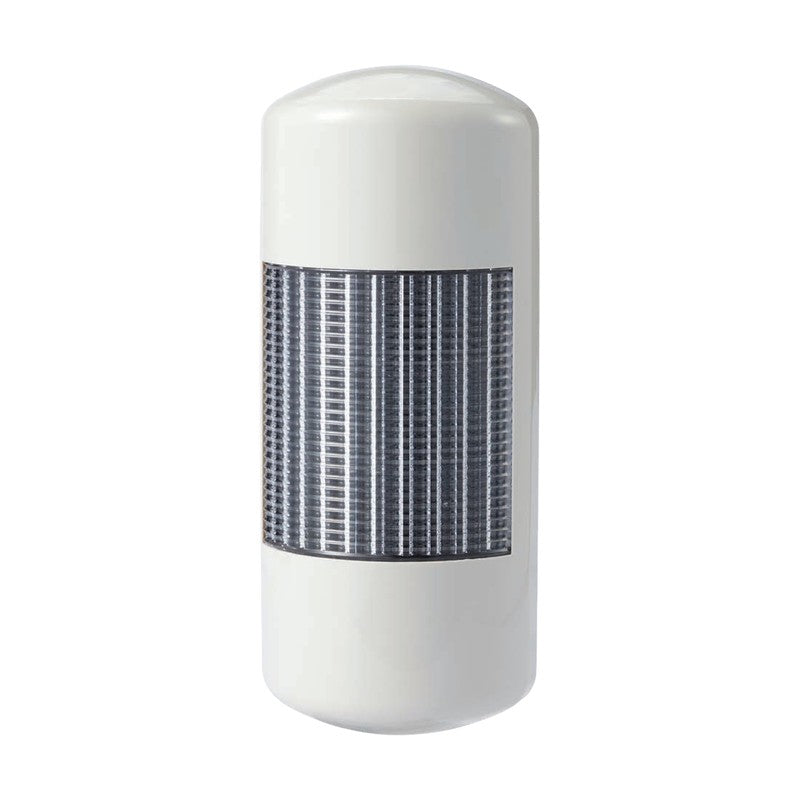

Qlight SWTC Wall Mounting Multiple Color LED Signal Light (Steady/Flashing)
Qlight SWTC Wall Mounting Multiple Color LED Signal Light (Steady/Flashing)
Wall-mounted LED signal light that can display two or three colors (red, amber, green) from a single lamp, in steady or steady/flashing versions.
Key features
- Transfers two or three signals with one lamp
- Wide-angle lens structure for visibility in all directions
- Direct LED light radiation for high visibility
- Tightly sealed structure allows outdoor installation
- Standard or built-in buzzer type (max. 90 dB at 1 m)
- SWTCE versions have a chromium plated body
Specifications
| Protection rating | IP55 |
|---|---|
| Ambient temperature | -30 to +50 °C |
| Materials | Cover ABS, body ABS, filter lens PC |
| Voltage | DC12V-24V (max. 445mA), AC110V (155mA), AC220V (85mA) |
| Weight | 0.31kg DC, 0.46kg AC |
| Colors | 2 colors R/G or 3 colors R/A/G |
| Buzzer option | BZ - built-in buzzer, max. 90 dB at 1 m |
| Compliance | RoHS |
| SWTCL | Function: Steady | Body: standard | |
| SWTCLF | Function: Steady/Flashing | Body: standard | |
| SWTCEL | Function: Steady | Body: chromium plated | |
| SWTCELF | Function: Steady/Flashing | Body: chromium plated |
Signal BeaconsQlight
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
Need a different model, or a part not listed here? Send us your parts list →
Qlight SWTC Wall Mounting Multiple Color LED Signal Light (Steady/Flashing)
Available part numbers (4)
SWTCL, SWTCLF, SWTCEL, SWTCELF
How to order
Send the Qlight part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
Qlight
Signal Beacons
Photo on request
Product codes & specifications
| Product code | Spec | ||
|---|---|---|---|
| SWTCL | Function: Steady | Body: standard | ||
| SWTCLF | Function: Steady/Flashing | Body: standard | ||
| SWTCEL | Function: Steady | Body: chromium plated | ||
| SWTCELF | Function: Steady/Flashing | Body: chromium plated |
