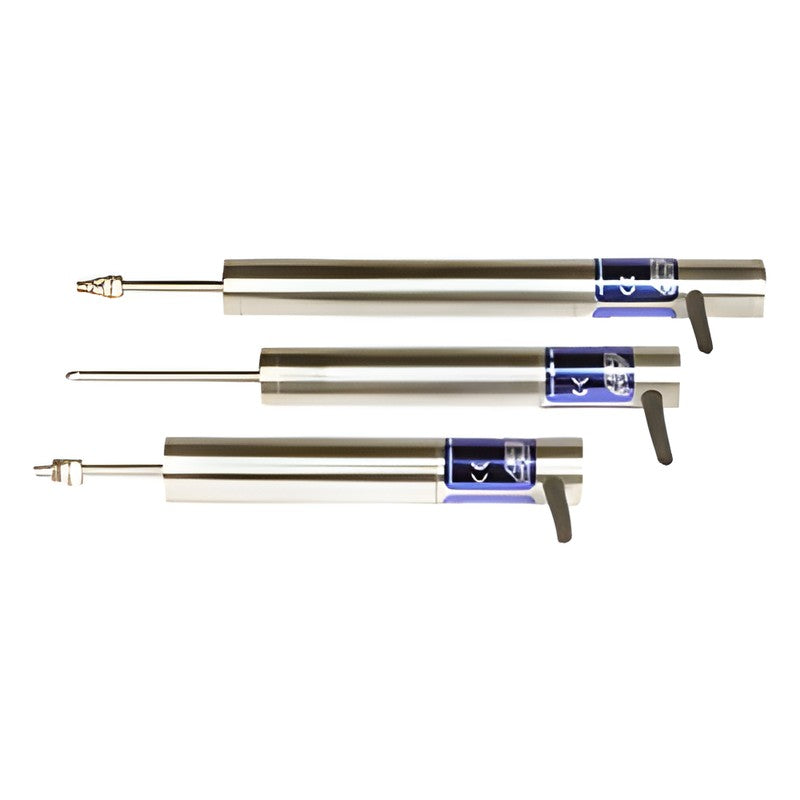

RDP Electrosense ACT Long Stroke LVDT (+/-12.5 to +/-75 mm)

RDP Electrosense ACT Long Stroke LVDT (+/-12.5 to +/-75 mm)

RDP ACT series spring-return LVDT displacement transducers, made in the UK, cover long strokes from +/-12.5 mm to +/-75 mm.

Key features

  • Spring return armature, bearing guided
  • Linearity error < +/-0.5 / 0.25 / 0.1 % F.S. grades
  • Ranges +/-12.5, 25, 50 and 75 mm
  • Excitation 0.5 to 7 V rms, 2 to 10 kHz
  • Wide operating temperature range

Specifications

Excitation (acceptable) 0.5 to 7 V rms, 2 to 10 kHz
Excitation (calibrated) 5 V rms, 5 kHz
Output load 100 kOhm
Temp. coefficient (zero) +/-0.01 % F.S./C typ.
Temp. coefficient (span) +/-0.01 % F.S./C typ.
Operating temperature -50 to +125 C
Body diameter 20.6 mm
Source RDP ACT probes page
ACT500A Range: +/-12.5 mm | Length: 133 mm | Sensitivity: 0.7 V/V | Weight: 184 g
ACT1000A Range: +/-25 mm | Length: 161 mm | Sensitivity: 0.9 V/V | Weight: 227 g
ACT2000A Range: +/-50 mm | Length: 276 mm | Sensitivity: 1.5 V/V | Weight: 398 g
ACT3000A Range: +/-75 mm | Length: 387 mm | Sensitivity: 1.5 V/V | Weight: 483 g
LVDT TransducerRDP Electrosense
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

RDP Electrosense ACT Long Stroke LVDT (+/-12.5 to +/-75 mm)

Brand RDP Electrosense·LVDT Transducer

Available part numbers (4)

ACT500A, ACT1000A, ACT2000A, ACT3000A

How to order

Send the RDP Electrosense part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ACT500ARange: +/-12.5 mm | Length: 133 mm | Sensitivity: 0.7 V/V | Weight: 184 g
ACT1000ARange: +/-25 mm | Length: 161 mm | Sensitivity: 0.9 V/V | Weight: 227 g
ACT2000ARange: +/-50 mm | Length: 276 mm | Sensitivity: 1.5 V/V | Weight: 398 g
ACT3000ARange: +/-75 mm | Length: 387 mm | Sensitivity: 1.5 V/V | Weight: 483 g
