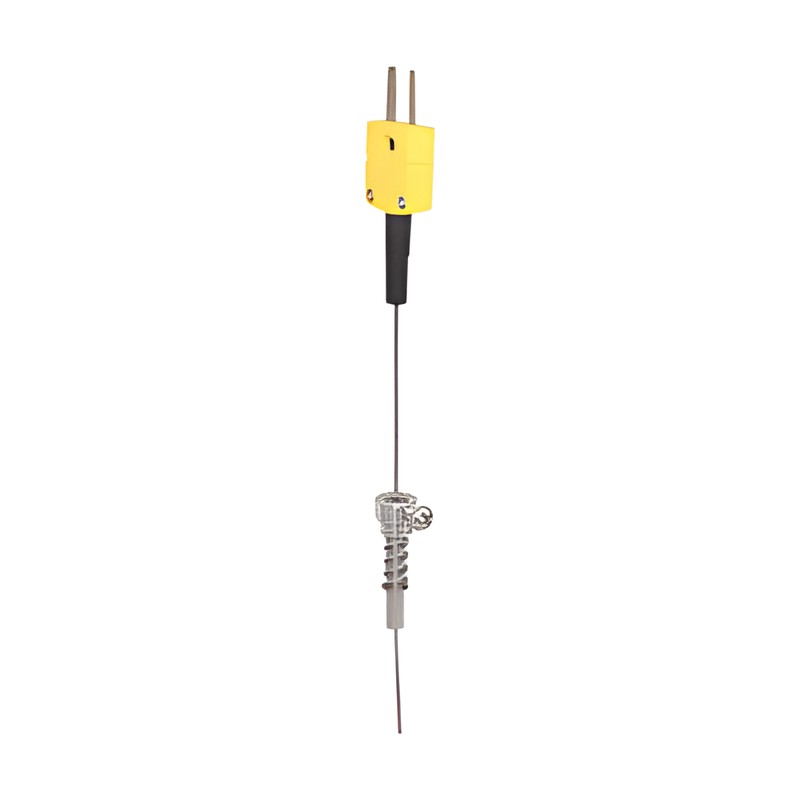

WISE UTE310, UTE320 UHP Temperature Element

Ultra high purity thermocouple/RTD temperature element for semiconductor and green energy systems, with excellent sealing, temperature and long-term stability.

Key features

Ultra high purity design for semiconductor service
Jack type single (UTE310) or double (UTE320) element
Thermocouple K, E, J, T, N, R, S, B or Pt100 RTD
Sheath 1.0 to 12.7 mm, multiple alloys
Weatherproof head or no-head lead wire versions

Specifications

Element	TC K, E, J, T, N, R, S, B; RTD Pt100
TC tolerance	Class 1/2 (IEC 584-2); Special/Standard (ASTM E230)
RTD tolerance	Class A or Class B
Sheath OD (TC)	1.0-12.7 mm (double from 2.3 mm)
Sheath OD (RTD)	3.2, 4.8, 6.4, 8.0 mm
Protecting tube OD	6.4, 8.0, 10.0, 12.0, 15.0 mm
Sheath material	304/316/316L/310/446/347/321SS, Inconel 600
Head	General (weatherproof) or none
Ordering options	Head, element, sheath, conduit, lead wire, mounting, connection, insert length
Source	WISE data sheet UD03-01

UTE310		Connector: Jack type \| Element: Single
UTE320		Connector: Jack type \| Element: Double

Temperature Sensors (TC/RTD)WISE

2 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

WISE UTE310, UTE320 UHP Temperature Element

Brand WISE·Temperature Sensors (TC/RTD)

Available part numbers (2)

UTE310, UTE320

How to order

Send the WISE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
