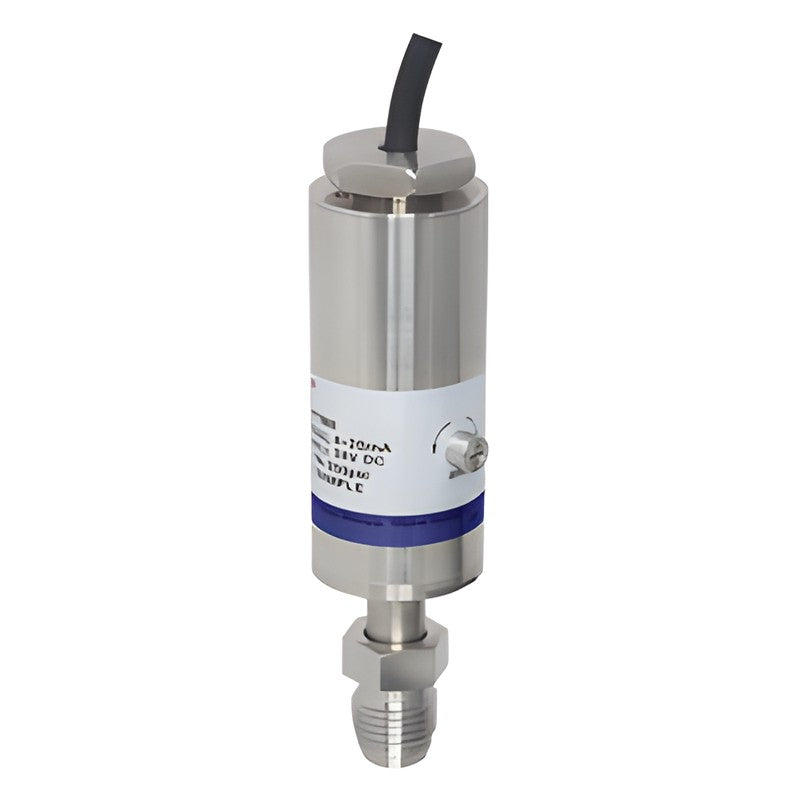

WISE UPT860 UHP Pressure Transmitter, Flameproof Ex d

Flameproof ultra-high purity pressure transmitter for semiconductor, electronic, medical, biotech and pharmaceutical gas systems. Hastelloy C22 MEMS sensing with 4~20 mA output.

Key features

Ex db IIC T6 Gb (KCs/ATEX/IEC/NEPSI)
Hastelloy C22 electropolished wetted surface, Ra ≤ 0.13 µm
MEMS piezoresistive sensor, ±0.25% FS
Swivel or flow-through face seal fittings, 9/16"-18 UNF
Stainless steel housing, IP65

Specifications

Pressure range	-15~30 to -15~3000 psi (gauge)
Accuracy	±0.25% of full scale
Output	4~20 mA DC, 2-wire loop power
Input power	12~24 VDC
Wetted materials	Hastelloy C22 sensor / 316L SS connection
Surface finish	Ra ≤ 0.13 µm (Ra 5), electropolished
Connection	9/16"-18 UNF swivel or flow-through male/female face seal
Explosion protection	Ex db IIC T6 Gb (KCs/ATEX/IEC/NEPSI)
Ambient temperature	-20~70 °C
Degree of protection	IP65
Ordering options	Connection type, unit (MPa/bar/kgf/cm²/psi), range, certificate (KCs/ATEX/IECEx/NEPSI)
Source	WISE data sheet UD08-08

UPT860

Range: -15~30 to 3000 psi | Ex: db

Pressure TransmittersWISE

1 product code available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

WISE UPT860 UHP Pressure Transmitter, Flameproof Ex d

Brand WISE·Pressure Transmitters

Available part numbers (1)

UPT860

How to order

Send the WISE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
