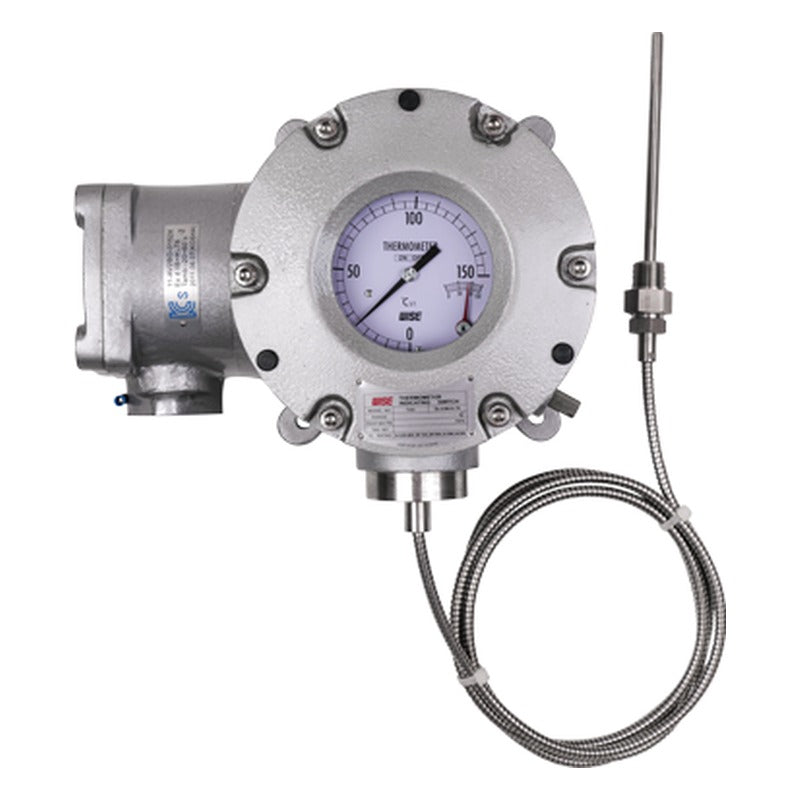

WISE T990 Explosion Proof Indicating Temperature Switch

Flameproof indicating temperature switch with a 125 mm dial and micro contacts for corrosive fluid service; dead band is fixed.

Key features

125 mm indicating dial in flameproof housing
KCS Ex d IIB+H2 T6 certified
Alarm types high, low, high/low, high-high, low-low
One/two SPDT or one DPDT micro contacts
Remote bulb with armored capillary up to 10 m

Specifications

Nominal diameter	125 mm
Measuring system	Gas, SAMA class IIIB, -200 to 700 °C
Scale ranges	-50 to 700 °C (scale table)
Accuracy	±2.0 % FS (±1.0 % FS option)
Repeatability	±1.0 % of adjustable range
Switch form	One/two SPDT or one DPDT
Contact rating	AC 125/250 V 15 A; DC 30 V 2 A
Ambient temperature	-20 to 60 °C
Certificates	KCS Ex d IIB+H2 T6
Stem	8.0, 10.0, 12.0 mm; 316SS/316L SS
Ordering options	Alarm type, stem, connection, range, capillary length, thermowell
Source	WISE data sheet TD09-05

T990

Dial: 125 mm | Enclosure: Ex d IIB+H2 T6

Temperature SwitchesWISE

1 product code available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

WISE T990 Explosion Proof Indicating Temperature Switch

Brand WISE·Temperature Switches

Available part numbers (1)

T990

How to order

Send the WISE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
