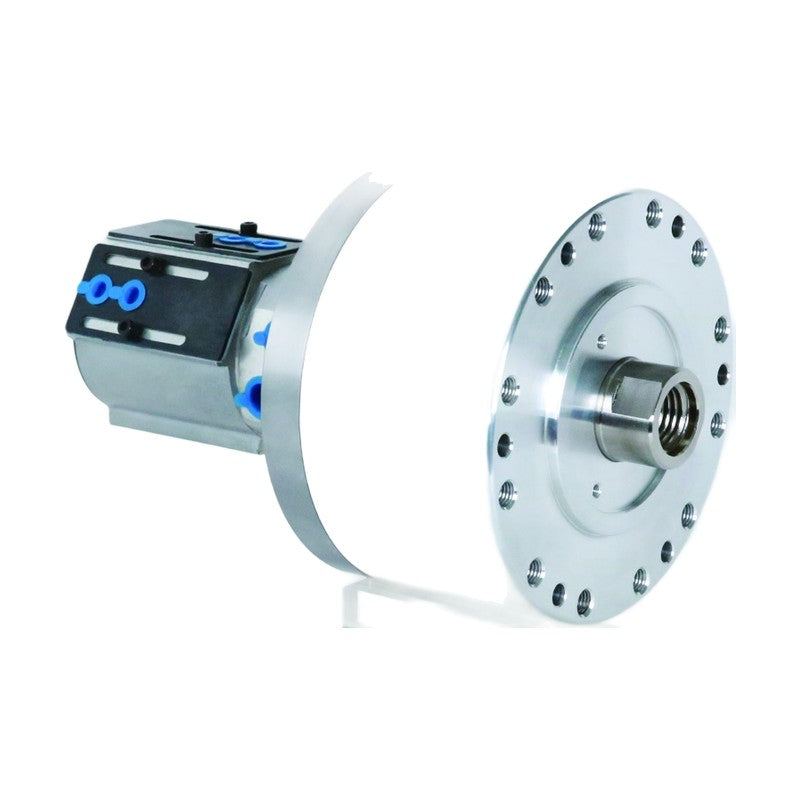

Samchully Closed-Center Hydraulic Cylinder with Proximity Bracket Y-RE

Samchully Closed-Center Hydraulic Cylinder with Proximity Bracket Y-RE

Closed-center hydraulic cylinder with proximity bracket (75-250 mm sizes).

Key features

  • Built-in lock and relief valves prevent damage from excessive pressure
  • Maintains pull force during power loss

Specifications

Max. Operating Pressure (MPa (kgf/cm²)) 4.0(40.8)
Total Leakage (ℓ/min) 0.8
Y-0715RE Piston Stroke (mm): 15 | Piston Surface Area (Push) (cm²): 44 | Piston Surface Area (Pull) (cm²): 37 | Piston Force (Push) (kN (kgf)): 15.9(1621) | Piston Force (Pull) (kN (kgf)): 13.9(1417) | Max. Speed (rpm): 6000 | Weight (kg): 4.0
Y-1020RE Piston Stroke (mm): 20 | Piston Surface Area (Push) (cm²): 84 | Piston Surface Area (Pull) (cm²): 79 | Piston Force (Push) (kN (kgf)): 31.0(3161) | Piston Force (Pull) (kN (kgf)): 29(2957) | Max. Speed (rpm): 6000 | Weight (kg): 7.6
Y-1025RE Piston Stroke (mm): 25 | Piston Surface Area (Push) (cm²): 84 | Piston Surface Area (Pull) (cm²): 79 | Piston Force (Push) (kN (kgf)): 31.0(3161) | Piston Force (Pull) (kN (kgf)): 29(2957) | Max. Speed (rpm): 6000 | Weight (kg): 7.7
Y-1225RE Piston Stroke (mm): 25 | Piston Surface Area (Push) (cm²): 120 | Piston Surface Area (Pull) (cm²): 113 | Piston Force (Push) (kN (kgf)): 45.0(4589) | Piston Force (Pull) (kN (kgf)): 42(4283) | Max. Speed (rpm): 6000 | Weight (kg): 10.5
Y-1240RE Piston Stroke (mm): 40 | Piston Surface Area (Push) (cm²): 120 | Piston Surface Area (Pull) (cm²): 113 | Piston Force (Push) (kN (kgf)): 45.0(4589) | Piston Force (Pull) (kN (kgf)): 42(4283) | Max. Speed (rpm): 6000 | Weight (kg): 11
Y-1530RE Piston Stroke (mm): 30 | Piston Surface Area (Push) (cm²): 174 | Piston Surface Area (Pull) (cm²): 160 | Piston Force (Push) (kN (kgf)): 65.0(6628) | Piston Force (Pull) (kN (kgf)): 60(6118) | Max. Speed (rpm): 5500 | Weight (kg): 14
Y-1550RE Piston Stroke (mm): 50 | Piston Surface Area (Push) (cm²): 174 | Piston Surface Area (Pull) (cm²): 160 | Piston Force (Push) (kN (kgf)): 65(6628) | Piston Force (Pull) (kN (kgf)): 60(6118) | Max. Speed (rpm): 5500 | Weight (kg): 14.8
Y-2035RE Piston Stroke (mm): 35 | Piston Surface Area (Push) (cm²): 312 | Piston Surface Area (Pull) (cm²): 290 | Piston Force (Push) (kN (kgf)): 117.0(11934) | Piston Force (Pull) (kN (kgf)): 108(11013) | Max. Speed (rpm): 5500 | Weight (kg): 22.5
Y-2050RE Piston Stroke (mm): 50 | Piston Surface Area (Push) (cm²): 312 | Piston Surface Area (Pull) (cm²): 290 | Piston Force (Push) (kN (kgf)): 117.0(11934) | Piston Force (Pull) (kN (kgf)): 108(11013) | Max. Speed (rpm): 5500 | Weight (kg): 23.5
Y-2560RE Piston Stroke (mm): 60 | Piston Surface Area (Push) (cm²): 515 | Piston Surface Area (Pull) (cm²): 482 | Piston Force (Push) (kN (kgf)): 154(15759) | Piston Force (Pull) (kN (kgf)): 144.5(14749) | Max. Speed (rpm): 2000 | Weight (kg): 85
Rotary CylindersSamchully
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samchully Closed-Center Hydraulic Cylinder with Proximity Bracket Y-RE

Brand Samchully·Rotary Cylinders

Available part numbers (10)

Y-0715RE, Y-1020RE, Y-1025RE, Y-1225RE, Y-1240RE, Y-1530RE, Y-1550RE, Y-2035RE, Y-2050RE, Y-2560RE

How to order

Send the Samchully part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
Y-0715REPiston Stroke (mm): 15 | Piston Surface Area (Push) (cm²): 44 | Piston Surface Area (Pull) (cm²): 37 | Piston Force (Push) (kN (kgf)): 15.9(1621) | Piston Force (Pull) (kN (kgf)): 13.9(1417) | Max. Speed (rpm): 6000 | Weight (kg): 4.0
Y-1020REPiston Stroke (mm): 20 | Piston Surface Area (Push) (cm²): 84 | Piston Surface Area (Pull) (cm²): 79 | Piston Force (Push) (kN (kgf)): 31.0(3161) | Piston Force (Pull) (kN (kgf)): 29(2957) | Max. Speed (rpm): 6000 | Weight (kg): 7.6
Y-1025REPiston Stroke (mm): 25 | Piston Surface Area (Push) (cm²): 84 | Piston Surface Area (Pull) (cm²): 79 | Piston Force (Push) (kN (kgf)): 31.0(3161) | Piston Force (Pull) (kN (kgf)): 29(2957) | Max. Speed (rpm): 6000 | Weight (kg): 7.7
Y-1225REPiston Stroke (mm): 25 | Piston Surface Area (Push) (cm²): 120 | Piston Surface Area (Pull) (cm²): 113 | Piston Force (Push) (kN (kgf)): 45.0(4589) | Piston Force (Pull) (kN (kgf)): 42(4283) | Max. Speed (rpm): 6000 | Weight (kg): 10.5
Y-1240REPiston Stroke (mm): 40 | Piston Surface Area (Push) (cm²): 120 | Piston Surface Area (Pull) (cm²): 113 | Piston Force (Push) (kN (kgf)): 45.0(4589) | Piston Force (Pull) (kN (kgf)): 42(4283) | Max. Speed (rpm): 6000 | Weight (kg): 11
Y-1530REPiston Stroke (mm): 30 | Piston Surface Area (Push) (cm²): 174 | Piston Surface Area (Pull) (cm²): 160 | Piston Force (Push) (kN (kgf)): 65.0(6628) | Piston Force (Pull) (kN (kgf)): 60(6118) | Max. Speed (rpm): 5500 | Weight (kg): 14
Y-1550REPiston Stroke (mm): 50 | Piston Surface Area (Push) (cm²): 174 | Piston Surface Area (Pull) (cm²): 160 | Piston Force (Push) (kN (kgf)): 65(6628) | Piston Force (Pull) (kN (kgf)): 60(6118) | Max. Speed (rpm): 5500 | Weight (kg): 14.8
Y-2035REPiston Stroke (mm): 35 | Piston Surface Area (Push) (cm²): 312 | Piston Surface Area (Pull) (cm²): 290 | Piston Force (Push) (kN (kgf)): 117.0(11934) | Piston Force (Pull) (kN (kgf)): 108(11013) | Max. Speed (rpm): 5500 | Weight (kg): 22.5
Y-2050REPiston Stroke (mm): 50 | Piston Surface Area (Push) (cm²): 312 | Piston Surface Area (Pull) (cm²): 290 | Piston Force (Push) (kN (kgf)): 117.0(11934) | Piston Force (Pull) (kN (kgf)): 108(11013) | Max. Speed (rpm): 5500 | Weight (kg): 23.5
Y-2560REPiston Stroke (mm): 60 | Piston Surface Area (Push) (cm²): 515 | Piston Surface Area (Pull) (cm²): 482 | Piston Force (Push) (kN (kgf)): 154(15759) | Piston Force (Pull) (kN (kgf)): 144.5(14749) | Max. Speed (rpm): 2000 | Weight (kg): 85
