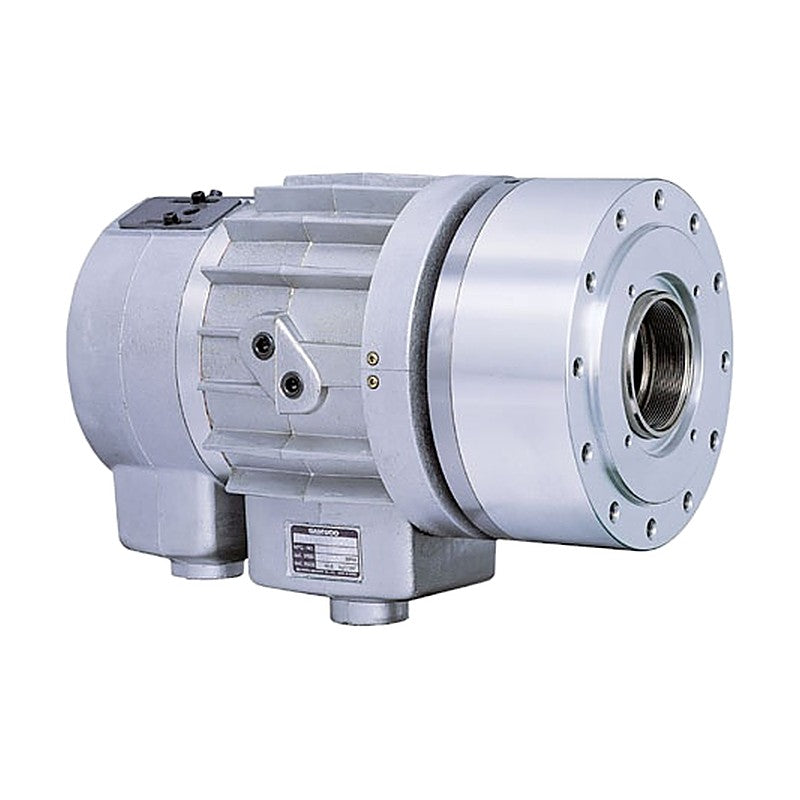

Samchully Standard Open-Center Hydraulic Cylinder HYH

Samchully Standard Open-Center Hydraulic Cylinder HYH

Standard open-center hydraulic cylinder with built-in lock and relief valves.

Key features

  • Built-in lock valve maintains thrust on power failure or sudden pressure drop
  • Built-in relief valve prevents overpressure and cylinder damage
HYH-0933 Available I.D. (mm): 33 | Piston Dia. (mm): 95 | Piston Stroke (mm): 12 | Piston Surface Area (Push) (cm²): 58.5 | Piston Surface Area (Pull) (cm²): 52.8 | Piston Force (Push) (kN (kgf)): 22(2243) | Piston Force (Pull) (kN (kgf)): 20.6(2100) | Max. Operating Pressure (MPa (kgf/cm²)): 4.0(40.8) | Max. Speed (rpm): 8000 | Weight (kg): 8.5 | Total Leakage (ℓ/min): 3
Rotary CylindersSamchully
1 product code available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samchully Standard Open-Center Hydraulic Cylinder HYH

Brand Samchully·Rotary Cylinders

Available part numbers (1)

HYH-0933

How to order

Send the Samchully part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
HYH-0933Available I.D. (mm): 33 | Piston Dia. (mm): 95 | Piston Stroke (mm): 12 | Piston Surface Area (Push) (cm²): 58.5 | Piston Surface Area (Pull) (cm²): 52.8 | Piston Force (Push) (kN (kgf)): 22(2243) | Piston Force (Pull) (kN (kgf)): 20.6(2100) | Max. Operating Pressure (MPa (kgf/cm²)): 4.0(40.8) | Max. Speed (rpm): 8000 | Weight (kg): 8.5 | Total Leakage (ℓ/min): 3
