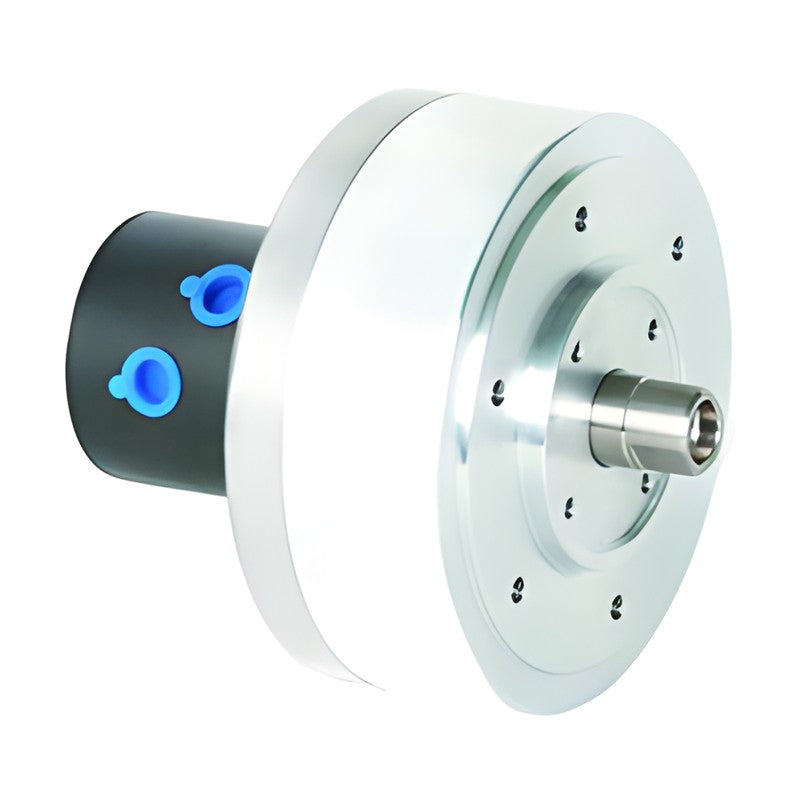

Samchully Closed-Center Pneumatic Cylinder AY-R

Samchully Closed-Center Pneumatic Cylinder AY-R

Closed-center pneumatic rotary cylinder suitable for cutting thin material.

Specifications

Max. Operating Pressure (MPa (kgf/cm²)) 8(0.82)
AY-1005R Piston Stroke (mm): 5 | Piston Surface Area (Push) (cm²): 78.5 | Piston Surface Area (Pull) (cm²): 73.6 | Piston Force (Push) (kN (kgf)): 5.4(552) | Piston Force (Pull) (kN (kgf)): 5.1(518) | Max. Speed (rpm): 5000 | Weight (kg): 4.1
AY-1315R Piston Stroke (mm): 15 | Piston Surface Area (Push) (cm²): 131 | Piston Surface Area (Pull) (cm²): 128 | Piston Force (Push) (kN (kgf)): 7.7(786) | Piston Force (Pull) (kN (kgf)): 7.5(770) | Max. Speed (rpm): 5000 | Weight (kg): 5.2
AY-1720R Piston Stroke (mm): 20 | Piston Surface Area (Push) (cm²): 225 | Piston Surface Area (Pull) (cm²): 220.1 | Piston Force (Push) (kN (kgf)): 13.23(1350) | Piston Force (Pull) (kN (kgf)): 12.9(1320) | Max. Speed (rpm): 5000 | Weight (kg): 8.3
AY-2225R Piston Stroke (mm): 25 | Piston Surface Area (Push) (cm²): 378 | Piston Surface Area (Pull) (cm²): 371.1 | Piston Force (Push) (kN (kgf)): 22.2(2268) | Piston Force (Pull) (kN (kgf)): 21.8(2226) | Max. Speed (rpm): 4000 | Weight (kg): 13.3
AY-2730R Piston Stroke (mm): 30 | Piston Surface Area (Push) (cm²): 570.4 | Piston Surface Area (Pull) (cm²): 560.8 | Piston Force (Push) (kN (kgf)): 33.5(3422) | Piston Force (Pull) (kN (kgf)): 33.0(3364) | Max. Speed (rpm): 3000 | Weight (kg): 18.7
Rotary CylindersSamchully
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samchully Closed-Center Pneumatic Cylinder AY-R

Brand Samchully·Rotary Cylinders

Available part numbers (5)

AY-1005R, AY-1315R, AY-1720R, AY-2225R, AY-2730R

How to order

Send the Samchully part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
AY-1005RPiston Stroke (mm): 5 | Piston Surface Area (Push) (cm²): 78.5 | Piston Surface Area (Pull) (cm²): 73.6 | Piston Force (Push) (kN (kgf)): 5.4(552) | Piston Force (Pull) (kN (kgf)): 5.1(518) | Max. Speed (rpm): 5000 | Weight (kg): 4.1
AY-1315RPiston Stroke (mm): 15 | Piston Surface Area (Push) (cm²): 131 | Piston Surface Area (Pull) (cm²): 128 | Piston Force (Push) (kN (kgf)): 7.7(786) | Piston Force (Pull) (kN (kgf)): 7.5(770) | Max. Speed (rpm): 5000 | Weight (kg): 5.2
AY-1720RPiston Stroke (mm): 20 | Piston Surface Area (Push) (cm²): 225 | Piston Surface Area (Pull) (cm²): 220.1 | Piston Force (Push) (kN (kgf)): 13.23(1350) | Piston Force (Pull) (kN (kgf)): 12.9(1320) | Max. Speed (rpm): 5000 | Weight (kg): 8.3
AY-2225RPiston Stroke (mm): 25 | Piston Surface Area (Push) (cm²): 378 | Piston Surface Area (Pull) (cm²): 371.1 | Piston Force (Push) (kN (kgf)): 22.2(2268) | Piston Force (Pull) (kN (kgf)): 21.8(2226) | Max. Speed (rpm): 4000 | Weight (kg): 13.3
AY-2730RPiston Stroke (mm): 30 | Piston Surface Area (Push) (cm²): 570.4 | Piston Surface Area (Pull) (cm²): 560.8 | Piston Force (Push) (kN (kgf)): 33.5(3422) | Piston Force (Pull) (kN (kgf)): 33.0(3364) | Max. Speed (rpm): 3000 | Weight (kg): 18.7
