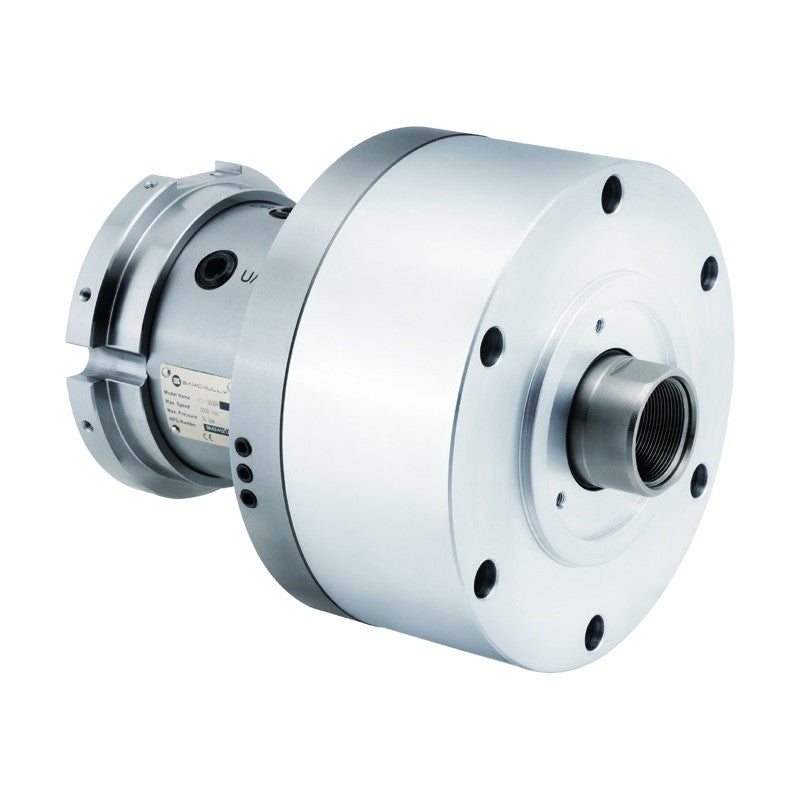

Samchully Closed-Center Hydraulic Rotary Cylinder YJ

Samchully Closed-Center Hydraulic Rotary Cylinder YJ

Closed-center hydraulic rotary cylinder with built-in lock and relief valves.

Key features

  • Optional one- or two-port rotary joint (air sensing or coolant through)
  • Movable or fixed type available
  • Proximity switch available
  • Built-in lock and relief valves

Specifications

Max. Operating Pressure (MPa (kgf/cm²)) 40
Max. Speed (rpm) 5,000
Total Leakage (ℓ/min) 1
YJ-10520R Piston Stroke (mm): 20 | Piston Surface Area (Push) (cm²): 75 | Piston Surface Area (Pull) (cm²): 74 | Weight (kg): 13.5
YJ-11520R Piston Stroke (mm): 20 | Piston Surface Area (Push) (cm²): 92.5 | Piston Surface Area (Pull) (cm²): 91.3 | Weight (kg): 13.5
YJ-13525R Piston Stroke (mm): 25 | Piston Surface Area (Push) (cm²): 130.5 | Piston Surface Area (Pull) (cm²): 131.7 | Weight (kg): 17.5
YJ-15030R Piston Stroke (mm): 30 | Piston Surface Area (Push) (cm²): 165.3 | Piston Surface Area (Pull) (cm²): 157 | Weight (kg): 20.5
Rotary CylindersSamchully
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samchully Closed-Center Hydraulic Rotary Cylinder YJ

Brand Samchully·Rotary Cylinders

Available part numbers (4)

YJ-10520R, YJ-11520R, YJ-13525R, YJ-15030R

How to order

Send the Samchully part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
YJ-10520RPiston Stroke (mm): 20 | Piston Surface Area (Push) (cm²): 75 | Piston Surface Area (Pull) (cm²): 74 | Weight (kg): 13.5
YJ-11520RPiston Stroke (mm): 20 | Piston Surface Area (Push) (cm²): 92.5 | Piston Surface Area (Pull) (cm²): 91.3 | Weight (kg): 13.5
YJ-13525RPiston Stroke (mm): 25 | Piston Surface Area (Push) (cm²): 130.5 | Piston Surface Area (Pull) (cm²): 131.7 | Weight (kg): 17.5
YJ-15030RPiston Stroke (mm): 30 | Piston Surface Area (Push) (cm²): 165.3 | Piston Surface Area (Pull) (cm²): 157 | Weight (kg): 20.5
