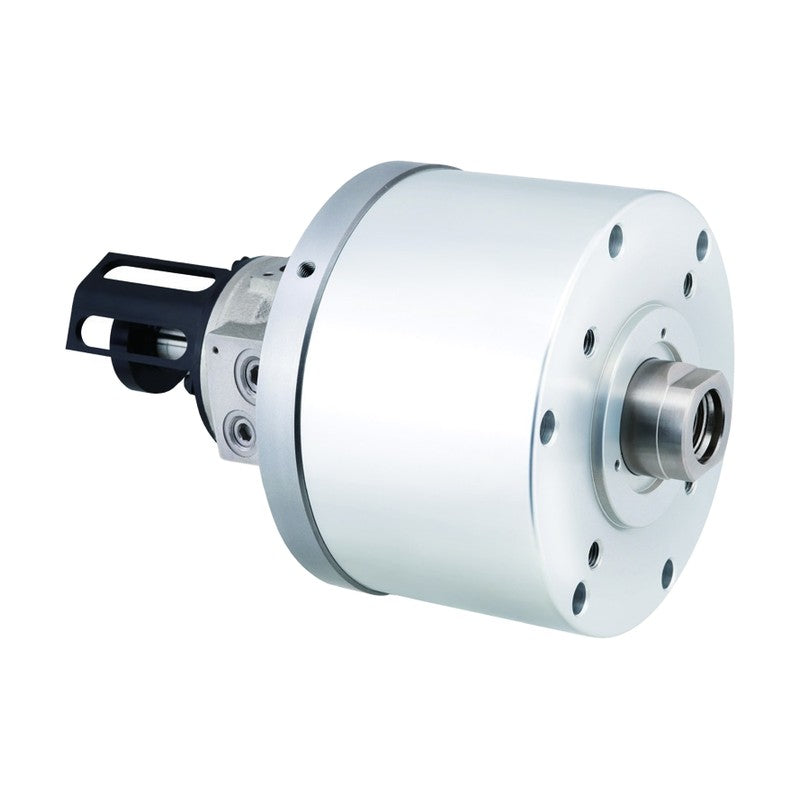

Samchully Closed-Center Hydraulic Cylinder YU

Samchully Closed-Center Hydraulic Cylinder YU

Closed-center hydraulic cylinder with proximity bracket.

Key features

  • Built-in lock and relief valves prevent damage from excessive pressure
  • Maintains pull force during power loss
YU-1540 Piston Stroke (mm): 40 | Piston Surface Area (Push) (cm²): 173 | Piston Surface Area (Pull) (cm²): 157 | Piston Force (Push) (kN (kgf)): 64(6526) | Piston Force (Pull) (kN (kgf)): 62(6322) | Max. Operating Pressure (MPa (kgf/cm²)): 7.0(71) | Max. Speed (rpm): 6000 | Weight (kg): 20 | Total Leakage (ℓ/min): 1
Rotary CylindersSamchully
1 product code available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samchully Closed-Center Hydraulic Cylinder YU

Brand Samchully·Rotary Cylinders

Available part numbers (1)

YU-1540

How to order

Send the Samchully part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
YU-1540Piston Stroke (mm): 40 | Piston Surface Area (Push) (cm²): 173 | Piston Surface Area (Pull) (cm²): 157 | Piston Force (Push) (kN (kgf)): 64(6526) | Piston Force (Pull) (kN (kgf)): 62(6322) | Max. Operating Pressure (MPa (kgf/cm²)): 7.0(71) | Max. Speed (rpm): 6000 | Weight (kg): 20 | Total Leakage (ℓ/min): 1
