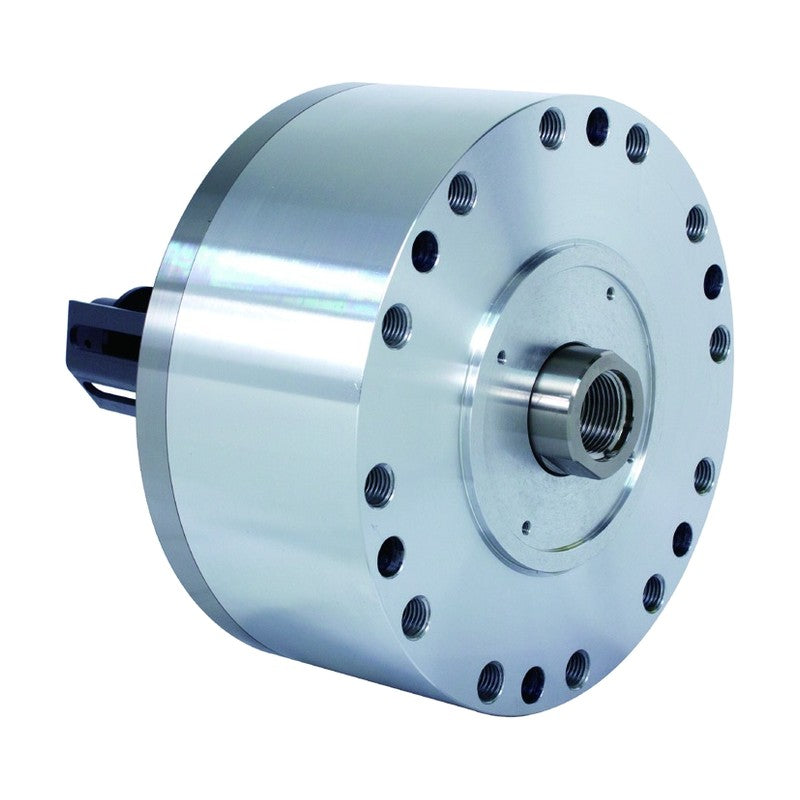

Samchully Ultra-Compact Closed-Center Hydraulic Cylinder YH-RE

Samchully Ultra-Compact Closed-Center Hydraulic Cylinder YH-RE

Ultra-compact closed-center hydraulic cylinder with proximity bracket.

Key features

  • Built-in lock and relief valves prevent damage from excessive pressure
  • Maintains pull force during power loss

Specifications

Max. Operating Pressure (MPa (kgf/cm²)) 4.0(40.8)
Total Leakage (ℓ/min) 0.8
YH-10120RE Piston Stroke (mm): 20 | Piston Surface Area (Push) (cm²): 78 | Piston Surface Area (Pull) (cm²): 73 | Piston Force (Push) (kN (kgf)): 29(2960) | Piston Force (Pull) (kN (kgf)): 27(2770) | Max. Speed (rpm): 6000 | Weight (kg): 7.6
YH-10125RE Piston Stroke (mm): 25 | Piston Surface Area (Push) (cm²): 78 | Piston Surface Area (Pull) (cm²): 73 | Piston Force (Push) (kN (kgf)): 29(2960) | Piston Force (Pull) (kN (kgf)): 27(2770) | Max. Speed (rpm): 6000 | Weight (kg): 7.7
YH-12125RE Piston Stroke (mm): 25 | Piston Surface Area (Push) (cm²): 114 | Piston Surface Area (Pull) (cm²): 106 | Piston Force (Push) (kN (kgf)): 42(4326) | Piston Force (Pull) (kN (kgf)): 39(4022) | Max. Speed (rpm): 6000 | Weight (kg): 10.5
YH-12140RE Piston Stroke (mm): 40 | Piston Surface Area (Push) (cm²): 114 | Piston Surface Area (Pull) (cm²): 106 | Piston Force (Push) (kN (kgf)): 42(4326) | Piston Force (Pull) (kN (kgf)): 39(4022) | Max. Speed (rpm): 6000 | Weight (kg): 11
YH-15130RE Piston Stroke (mm): 30 | Piston Surface Area (Push) (cm²): 168 | Piston Surface Area (Pull) (cm²): 154 | Piston Force (Push) (kN (kgf)): 63(6375) | Piston Force (Pull) (kN (kgf)): 57(5843) | Max. Speed (rpm): 5500 | Weight (kg): 14
YH-15150RE Piston Stroke (mm): 50 | Piston Surface Area (Push) (cm²): 168 | Piston Surface Area (Pull) (cm²): 154 | Piston Force (Push) (kN (kgf)): 63(6375) | Piston Force (Pull) (kN (kgf)): 57(5843) | Max. Speed (rpm): 5500 | Weight (kg): 14.5
YH-20135RE Piston Stroke (mm): 35 | Piston Surface Area (Push) (cm²): 305 | Piston Surface Area (Pull) (cm²): 283 | Piston Force (Push) (kN (kgf)): 114(11573) | Piston Force (Pull) (kN (kgf)): 105(10738) | Max. Speed (rpm): 5500 | Weight (kg): 22.5
YH-20150RE Piston Stroke (mm): 50 | Piston Surface Area (Push) (cm²): 305 | Piston Surface Area (Pull) (cm²): 283 | Piston Force (Push) (kN (kgf)): 114(11573) | Piston Force (Pull) (kN (kgf)): 105(10738) | Max. Speed (rpm): 5500 | Weight (kg): 23.5
YH-25160RE Piston Stroke (mm): 60 | Piston Surface Area (Push) (cm²): 515 | Piston Surface Area (Pull) (cm²): 482 | Piston Force (Push) (kN (kgf)): 193(19541) | Piston Force (Pull) (kN (kgf)): 180(18289) | Max. Speed (rpm): 2000 | Weight (kg): 88
Rotary CylindersSamchully
9 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samchully Ultra-Compact Closed-Center Hydraulic Cylinder YH-RE

Brand Samchully·Rotary Cylinders

Available part numbers (9)

YH-10120RE, YH-10125RE, YH-12125RE, YH-12140RE, YH-15130RE, YH-15150RE, YH-20135RE, YH-20150RE, YH-25160RE

How to order

Send the Samchully part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
YH-10120REPiston Stroke (mm): 20 | Piston Surface Area (Push) (cm²): 78 | Piston Surface Area (Pull) (cm²): 73 | Piston Force (Push) (kN (kgf)): 29(2960) | Piston Force (Pull) (kN (kgf)): 27(2770) | Max. Speed (rpm): 6000 | Weight (kg): 7.6
YH-10125REPiston Stroke (mm): 25 | Piston Surface Area (Push) (cm²): 78 | Piston Surface Area (Pull) (cm²): 73 | Piston Force (Push) (kN (kgf)): 29(2960) | Piston Force (Pull) (kN (kgf)): 27(2770) | Max. Speed (rpm): 6000 | Weight (kg): 7.7
YH-12125REPiston Stroke (mm): 25 | Piston Surface Area (Push) (cm²): 114 | Piston Surface Area (Pull) (cm²): 106 | Piston Force (Push) (kN (kgf)): 42(4326) | Piston Force (Pull) (kN (kgf)): 39(4022) | Max. Speed (rpm): 6000 | Weight (kg): 10.5
YH-12140REPiston Stroke (mm): 40 | Piston Surface Area (Push) (cm²): 114 | Piston Surface Area (Pull) (cm²): 106 | Piston Force (Push) (kN (kgf)): 42(4326) | Piston Force (Pull) (kN (kgf)): 39(4022) | Max. Speed (rpm): 6000 | Weight (kg): 11
YH-15130REPiston Stroke (mm): 30 | Piston Surface Area (Push) (cm²): 168 | Piston Surface Area (Pull) (cm²): 154 | Piston Force (Push) (kN (kgf)): 63(6375) | Piston Force (Pull) (kN (kgf)): 57(5843) | Max. Speed (rpm): 5500 | Weight (kg): 14
YH-15150REPiston Stroke (mm): 50 | Piston Surface Area (Push) (cm²): 168 | Piston Surface Area (Pull) (cm²): 154 | Piston Force (Push) (kN (kgf)): 63(6375) | Piston Force (Pull) (kN (kgf)): 57(5843) | Max. Speed (rpm): 5500 | Weight (kg): 14.5
YH-20135REPiston Stroke (mm): 35 | Piston Surface Area (Push) (cm²): 305 | Piston Surface Area (Pull) (cm²): 283 | Piston Force (Push) (kN (kgf)): 114(11573) | Piston Force (Pull) (kN (kgf)): 105(10738) | Max. Speed (rpm): 5500 | Weight (kg): 22.5
YH-20150REPiston Stroke (mm): 50 | Piston Surface Area (Push) (cm²): 305 | Piston Surface Area (Pull) (cm²): 283 | Piston Force (Push) (kN (kgf)): 114(11573) | Piston Force (Pull) (kN (kgf)): 105(10738) | Max. Speed (rpm): 5500 | Weight (kg): 23.5
YH-25160REPiston Stroke (mm): 60 | Piston Surface Area (Push) (cm²): 515 | Piston Surface Area (Pull) (cm²): 482 | Piston Force (Push) (kN (kgf)): 193(19541) | Piston Force (Pull) (kN (kgf)): 180(18289) | Max. Speed (rpm): 2000 | Weight (kg): 88
