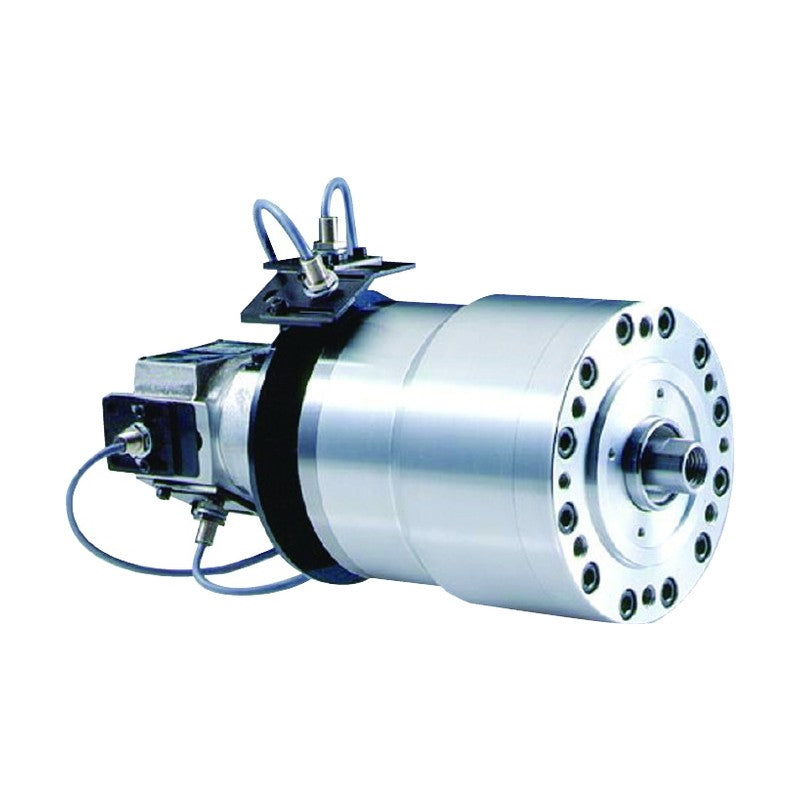

Samchully Double-Piston Hydraulic Cylinder DY

Samchully Double-Piston Hydraulic Cylinder DY

Double-piston hydraulic cylinder for 2+2 chucks and chucks with face drivers or part ejectors.

Key features

  • Dual actuation with a single cylinder

Specifications

Max. Operating Pressure (MPa (kgf/cm²)) 40.8
DY-802512 Piston Stroke (max/min) (mm) S1: 43/31 | Piston Stroke (max/min) (mm) S2: 35/10 | Piston Surface Area (Push) (cm²) A: 30.5 | Piston Surface Area (Push) (cm²) B: 28.3 | Piston Surface Area (Pull) (cm²) A: 45.4 | Piston Surface Area (Pull) (cm²) B: 33.2 | Piston Force (Push) (kN (kgf)) A: 12(1220) | Piston Force (Push) (kN (kgf)) B: 11.1(1132) | Piston Force (Pull) (kN (kgf)) A: 17.8(1816) | Piston Force (Pull) (kN (kgf)) B: 13(1328) | Max. Speed (rpm): 5000 | Weight (kg): 10
DY-1251535L Piston Stroke (max/min) (mm) S1: 116/101 | Piston Stroke (max/min) (mm) S2: 75/40 | Piston Surface Area (Push) (cm²) A: 117 | Piston Surface Area (Push) (cm²) B: 36 | Piston Surface Area (Pull) (cm²) A: 103 | Piston Surface Area (Pull) (cm²) B: 33 | Piston Force (Push) (kN (kgf)) A: 45.9(4680) | Piston Force (Push) (kN (kgf)) B: 14.1(1440) | Piston Force (Pull) (kN (kgf)) A: 40.4(4120) | Piston Force (Pull) (kN (kgf)) B: 12.9(1320) | Max. Speed (rpm): 5000 | Weight (kg): 15
DY-1251535S Piston Stroke (max/min) (mm) S1: 90/75 | Piston Stroke (max/min) (mm) S2: 75/40 | Piston Surface Area (Push) (cm²) A: 117 | Piston Surface Area (Push) (cm²) B: 36 | Piston Surface Area (Pull) (cm²) A: 103 | Piston Surface Area (Pull) (cm²) B: 33 | Piston Force (Push) (kN (kgf)) A: 45.9(4680) | Piston Force (Push) (kN (kgf)) B: 14.1(1440) | Piston Force (Pull) (kN (kgf)) A: 40.4(4120) | Piston Force (Pull) (kN (kgf)) B: 12.9(1320) | Max. Speed (rpm): 5000 | Weight (kg): 15
DY-1253030 Piston Stroke (max/min) (mm) S1: 60/30 | Piston Stroke (max/min) (mm) S2: 45/15 | Piston Surface Area (Push) (cm²) A: 117 | Piston Surface Area (Push) (cm²) B: 36 | Piston Surface Area (Pull) (cm²) A: 103 | Piston Surface Area (Pull) (cm²) B: 33 | Piston Force (Push) (kN (kgf)) A: 45.9(4680) | Piston Force (Push) (kN (kgf)) B: 14.1(1440) | Piston Force (Pull) (kN (kgf)) A: 40.4(4120) | Piston Force (Pull) (kN (kgf)) B: 12.9(1320) | Max. Speed (rpm): 5000 | Weight (kg): 15
DY-1253060 Piston Stroke (max/min) (mm) S1: 90/60 | Piston Stroke (max/min) (mm) S2: 75/15 | Piston Surface Area (Push) (cm²) A: 117 | Piston Surface Area (Push) (cm²) B: 36 | Piston Surface Area (Pull) (cm²) A: 103 | Piston Surface Area (Pull) (cm²) B: 33 | Piston Force (Push) (kN (kgf)) A: 45.9(4680) | Piston Force (Push) (kN (kgf)) B: 14.1(1440) | Piston Force (Pull) (kN (kgf)) A: 40.4(4120) | Piston Force (Pull) (kN (kgf)) B: 12.9(1320) | Max. Speed (rpm): 5000 | Weight (kg): 15
DY-1255030 Piston Stroke (max/min) (mm) S1: 80/30 | Piston Stroke (max/min) (mm) S2: 45/15 | Piston Surface Area (Push) (cm²) A: 117 | Piston Surface Area (Push) (cm²) B: 36 | Piston Surface Area (Pull) (cm²) A: 103 | Piston Surface Area (Pull) (cm²) B: 33 | Piston Force (Push) (kN (kgf)) A: 45.9(4680) | Piston Force (Push) (kN (kgf)) B: 14.1(1440) | Piston Force (Pull) (kN (kgf)) A: 40.4(4120) | Piston Force (Pull) (kN (kgf)) B: 12.9(1320) | Max. Speed (rpm): 5000 | Weight (kg): 15
DY-1601535 Piston Stroke (max/min) (mm) S1: 127/112 | Piston Stroke (max/min) (mm) S2: 97/62 | Piston Surface Area (Push) (cm²) A: 183 | Piston Surface Area (Push) (cm²) B: 55 | Piston Surface Area (Pull) (cm²) A: 169 | Piston Surface Area (Pull) (cm²) B: 52 | Piston Force (Push) (kN (kgf)) A: 71.7(7320) | Piston Force (Push) (kN (kgf)) B: 21.6(2220) | Piston Force (Pull) (kN (kgf)) A: 66.2(6760) | Piston Force (Pull) (kN (kgf)) B: 20.4(2080) | Max. Speed (rpm): 3000 | Weight (kg): 27
DY-1603080 Piston Stroke (max/min) (mm) S1: 127/97 | Piston Stroke (max/min) (mm) S2: 97/17 | Piston Surface Area (Push) (cm²) A: 183 | Piston Surface Area (Push) (cm²) B: 55 | Piston Surface Area (Pull) (cm²) A: 169 | Piston Surface Area (Pull) (cm²) B: 52 | Piston Force (Push) (kN (kgf)) A: 71.7(7320) | Piston Force (Push) (kN (kgf)) B: 21.6(2220) | Piston Force (Pull) (kN (kgf)) A: 66.2(6760) | Piston Force (Pull) (kN (kgf)) B: 20.4(2080) | Max. Speed (rpm): 3000 | Weight (kg): 27
Rotary CylindersSamchully
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samchully Double-Piston Hydraulic Cylinder DY

Brand Samchully·Rotary Cylinders

Available part numbers (8)

DY-802512, DY-1251535L, DY-1251535S, DY-1253030, DY-1253060, DY-1255030, DY-1601535, DY-1603080

How to order

Send the Samchully part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
DY-802512Piston Stroke (max/min) (mm) S1: 43/31 | Piston Stroke (max/min) (mm) S2: 35/10 | Piston Surface Area (Push) (cm²) A: 30.5 | Piston Surface Area (Push) (cm²) B: 28.3 | Piston Surface Area (Pull) (cm²) A: 45.4 | Piston Surface Area (Pull) (cm²) B: 33.2 | Piston Force (Push) (kN (kgf)) A: 12(1220) | Piston Force (Push) (kN (kgf)) B: 11.1(1132) | Piston Force (Pull) (kN (kgf)) A: 17.8(1816) | Piston Force (Pull) (kN (kgf)) B: 13(1328) | Max. Speed (rpm): 5000 | Weight (kg): 10
DY-1251535LPiston Stroke (max/min) (mm) S1: 116/101 | Piston Stroke (max/min) (mm) S2: 75/40 | Piston Surface Area (Push) (cm²) A: 117 | Piston Surface Area (Push) (cm²) B: 36 | Piston Surface Area (Pull) (cm²) A: 103 | Piston Surface Area (Pull) (cm²) B: 33 | Piston Force (Push) (kN (kgf)) A: 45.9(4680) | Piston Force (Push) (kN (kgf)) B: 14.1(1440) | Piston Force (Pull) (kN (kgf)) A: 40.4(4120) | Piston Force (Pull) (kN (kgf)) B: 12.9(1320) | Max. Speed (rpm): 5000 | Weight (kg): 15
DY-1251535SPiston Stroke (max/min) (mm) S1: 90/75 | Piston Stroke (max/min) (mm) S2: 75/40 | Piston Surface Area (Push) (cm²) A: 117 | Piston Surface Area (Push) (cm²) B: 36 | Piston Surface Area (Pull) (cm²) A: 103 | Piston Surface Area (Pull) (cm²) B: 33 | Piston Force (Push) (kN (kgf)) A: 45.9(4680) | Piston Force (Push) (kN (kgf)) B: 14.1(1440) | Piston Force (Pull) (kN (kgf)) A: 40.4(4120) | Piston Force (Pull) (kN (kgf)) B: 12.9(1320) | Max. Speed (rpm): 5000 | Weight (kg): 15
DY-1253030Piston Stroke (max/min) (mm) S1: 60/30 | Piston Stroke (max/min) (mm) S2: 45/15 | Piston Surface Area (Push) (cm²) A: 117 | Piston Surface Area (Push) (cm²) B: 36 | Piston Surface Area (Pull) (cm²) A: 103 | Piston Surface Area (Pull) (cm²) B: 33 | Piston Force (Push) (kN (kgf)) A: 45.9(4680) | Piston Force (Push) (kN (kgf)) B: 14.1(1440) | Piston Force (Pull) (kN (kgf)) A: 40.4(4120) | Piston Force (Pull) (kN (kgf)) B: 12.9(1320) | Max. Speed (rpm): 5000 | Weight (kg): 15
DY-1253060Piston Stroke (max/min) (mm) S1: 90/60 | Piston Stroke (max/min) (mm) S2: 75/15 | Piston Surface Area (Push) (cm²) A: 117 | Piston Surface Area (Push) (cm²) B: 36 | Piston Surface Area (Pull) (cm²) A: 103 | Piston Surface Area (Pull) (cm²) B: 33 | Piston Force (Push) (kN (kgf)) A: 45.9(4680) | Piston Force (Push) (kN (kgf)) B: 14.1(1440) | Piston Force (Pull) (kN (kgf)) A: 40.4(4120) | Piston Force (Pull) (kN (kgf)) B: 12.9(1320) | Max. Speed (rpm): 5000 | Weight (kg): 15
DY-1255030Piston Stroke (max/min) (mm) S1: 80/30 | Piston Stroke (max/min) (mm) S2: 45/15 | Piston Surface Area (Push) (cm²) A: 117 | Piston Surface Area (Push) (cm²) B: 36 | Piston Surface Area (Pull) (cm²) A: 103 | Piston Surface Area (Pull) (cm²) B: 33 | Piston Force (Push) (kN (kgf)) A: 45.9(4680) | Piston Force (Push) (kN (kgf)) B: 14.1(1440) | Piston Force (Pull) (kN (kgf)) A: 40.4(4120) | Piston Force (Pull) (kN (kgf)) B: 12.9(1320) | Max. Speed (rpm): 5000 | Weight (kg): 15
DY-1601535Piston Stroke (max/min) (mm) S1: 127/112 | Piston Stroke (max/min) (mm) S2: 97/62 | Piston Surface Area (Push) (cm²) A: 183 | Piston Surface Area (Push) (cm²) B: 55 | Piston Surface Area (Pull) (cm²) A: 169 | Piston Surface Area (Pull) (cm²) B: 52 | Piston Force (Push) (kN (kgf)) A: 71.7(7320) | Piston Force (Push) (kN (kgf)) B: 21.6(2220) | Piston Force (Pull) (kN (kgf)) A: 66.2(6760) | Piston Force (Pull) (kN (kgf)) B: 20.4(2080) | Max. Speed (rpm): 3000 | Weight (kg): 27
DY-1603080Piston Stroke (max/min) (mm) S1: 127/97 | Piston Stroke (max/min) (mm) S2: 97/17 | Piston Surface Area (Push) (cm²) A: 183 | Piston Surface Area (Push) (cm²) B: 55 | Piston Surface Area (Pull) (cm²) A: 169 | Piston Surface Area (Pull) (cm²) B: 52 | Piston Force (Push) (kN (kgf)) A: 71.7(7320) | Piston Force (Push) (kN (kgf)) B: 21.6(2220) | Piston Force (Pull) (kN (kgf)) A: 66.2(6760) | Piston Force (Pull) (kN (kgf)) B: 20.4(2080) | Max. Speed (rpm): 3000 | Weight (kg): 27
