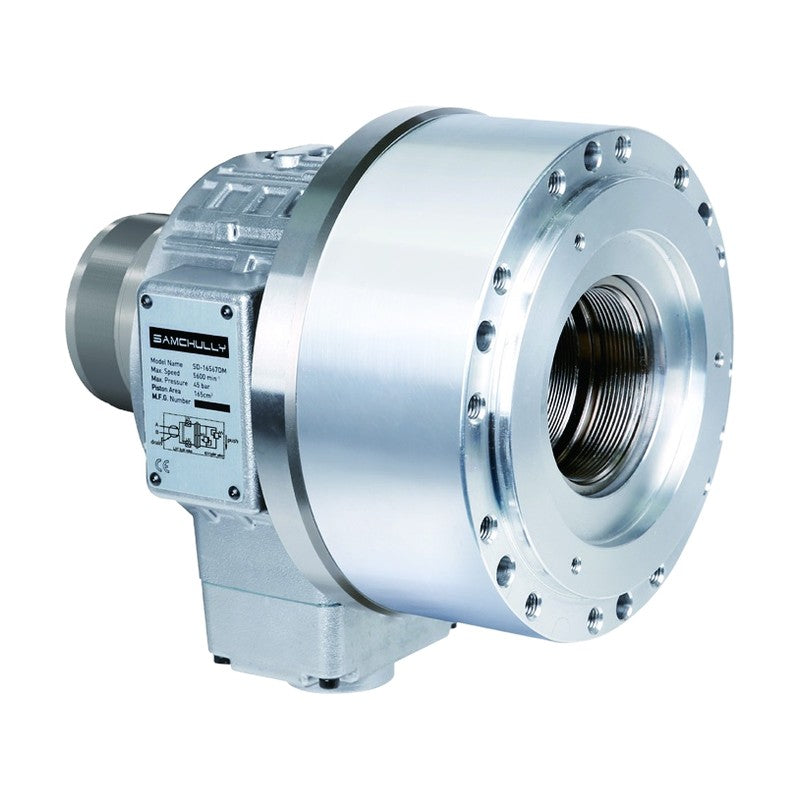

Samchully Mega-Bore Short-Body Open-Center Hydraulic Cylinder SD

Samchully Mega-Bore Short-Body Open-Center Hydraulic Cylinder SD

Open-center hydraulic cylinder for large-bore work in machines with limited clearance.

Key features

  • Low drain rate reduces heat generation
SD-13546 Available I.D. (mm): 46 | Piston Dia. (mm): 132 | Piston Stroke (mm): 25 | Piston Surface Area (Push) (cm²): 108 | Piston Surface Area (Pull) (cm²): 97 | Piston Force (Push) (kN (kgf)): 47(4800) | Piston Force (Pull) (kN (kgf)): 44(4500) | Max. Operating Pressure (MPa (kgf/cm²)): 4.5(45) | Max. Speed (rpm): 7000 | Weight (kg): 10 | Total Leakage (ℓ/min): 2.5
SD-15452 Available I.D. (mm): 52 | Piston Dia. (mm): 156 | Piston Stroke (mm): 25 | Piston Surface Area (Push) (cm²): 151 | Piston Surface Area (Pull) (cm²): 142 | Piston Force (Push) (kN (kgf)): 67(6800) | Piston Force (Pull) (kN (kgf)): 63(6400) | Max. Operating Pressure (MPa (kgf/cm²)): 4.5(45) | Max. Speed (rpm): 6200 | Weight (kg): 14 | Total Leakage (ℓ/min): 3
SD-17568 Available I.D. (mm): 68 | Piston Dia. (mm): 170 | Piston Stroke (mm): 29 | Piston Surface Area (Push) (cm²): 172 | Piston Surface Area (Pull) (cm²): 160 | Piston Force (Push) (kN (kgf)): 75(7656) | Piston Force (Pull) (kN (kgf)): 70(7050) | Max. Operating Pressure (MPa (kgf/cm²)): 4.5(45) | Max. Speed (rpm): 5600 | Weight (kg): 18 | Total Leakage (ℓ/min): 3.2
SD-18577 Available I.D. (mm): 77 | Piston Dia. (mm): 185 | Piston Stroke (mm): 29 | Piston Surface Area (Push) (cm²): 201 | Piston Surface Area (Pull) (cm²): 187 | Piston Force (Push) (kN (kgf)): 89(9000) | Piston Force (Pull) (kN (kgf)): 82(8300) | Max. Operating Pressure (MPa (kgf/cm²)): 4.5(45) | Max. Speed (rpm): 5000 | Weight (kg): 23 | Total Leakage (ℓ/min): 3.5
SD-18582 Available I.D. (mm): 82 | Piston Dia. (mm): 185 | Piston Stroke (mm): 30 | Piston Surface Area (Push) (cm²): 195 | Piston Surface Area (Pull) (cm²): 180 | Piston Force (Push) (kN (kgf)): 85(8700) | Piston Force (Pull) (kN (kgf)): 79(8100) | Max. Operating Pressure (MPa (kgf/cm²)): 4.5(45) | Max. Speed (rpm): 4800 | Weight (kg): 26 | Total Leakage (ℓ/min): 3.5
SD-20591 Available I.D. (mm): 91 | Piston Dia. (mm): 205 | Piston Stroke (mm): 34 | Piston Surface Area (Push) (cm²): 233 | Piston Surface Area (Pull) (cm²): 224 | Piston Force (Push) (kN (kgf)): 105(10700) | Piston Force (Pull) (kN (kgf)): 101(10299) | Max. Operating Pressure (MPa (kgf/cm²)): 4.5(45) | Max. Speed (rpm): 4000 | Weight (kg): 29 | Total Leakage (ℓ/min): 5
SD-21510 Available I.D. (mm): 103 | Piston Dia. (mm): 220 | Piston Stroke (mm): 35 | Piston Surface Area (Push) (cm²): 238 | Piston Surface Area (Pull) (cm²): 230 | Piston Force (Push) (kN (kgf)): 105(10700) | Piston Force (Pull) (kN (kgf)): 101(10300) | Max. Operating Pressure (MPa (kgf/cm²)): 4.5(45) | Max. Speed (rpm): 3600 | Weight (kg): 37 | Total Leakage (ℓ/min): 4.5
SD-25411 Available I.D. (mm): 117.5 | Piston Dia. (mm): 250 | Piston Stroke (mm): 23 | Piston Surface Area (Push) (cm²): 356 | Piston Surface Area (Pull) (cm²): 325 | Piston Force (Push) (kN (kgf)): 138(14100) | Piston Force (Pull) (kN (kgf)): 126(12900) | Max. Operating Pressure (MPa (kgf/cm²)): 4.0(40) | Max. Speed (rpm): 3000 | Weight (kg): 54 | Total Leakage (ℓ/min): 6
Rotary CylindersSamchully
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samchully Mega-Bore Short-Body Open-Center Hydraulic Cylinder SD

Brand Samchully·Rotary Cylinders

Available part numbers (8)

SD-13546, SD-15452, SD-17568, SD-18577, SD-18582, SD-20591, SD-21510, SD-25411

How to order

Send the Samchully part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SD-13546Available I.D. (mm): 46 | Piston Dia. (mm): 132 | Piston Stroke (mm): 25 | Piston Surface Area (Push) (cm²): 108 | Piston Surface Area (Pull) (cm²): 97 | Piston Force (Push) (kN (kgf)): 47(4800) | Piston Force (Pull) (kN (kgf)): 44(4500) | Max. Operating Pressure (MPa (kgf/cm²)): 4.5(45) | Max. Speed (rpm): 7000 | Weight (kg): 10 | Total Leakage (ℓ/min): 2.5
SD-15452Available I.D. (mm): 52 | Piston Dia. (mm): 156 | Piston Stroke (mm): 25 | Piston Surface Area (Push) (cm²): 151 | Piston Surface Area (Pull) (cm²): 142 | Piston Force (Push) (kN (kgf)): 67(6800) | Piston Force (Pull) (kN (kgf)): 63(6400) | Max. Operating Pressure (MPa (kgf/cm²)): 4.5(45) | Max. Speed (rpm): 6200 | Weight (kg): 14 | Total Leakage (ℓ/min): 3
SD-17568Available I.D. (mm): 68 | Piston Dia. (mm): 170 | Piston Stroke (mm): 29 | Piston Surface Area (Push) (cm²): 172 | Piston Surface Area (Pull) (cm²): 160 | Piston Force (Push) (kN (kgf)): 75(7656) | Piston Force (Pull) (kN (kgf)): 70(7050) | Max. Operating Pressure (MPa (kgf/cm²)): 4.5(45) | Max. Speed (rpm): 5600 | Weight (kg): 18 | Total Leakage (ℓ/min): 3.2
SD-18577Available I.D. (mm): 77 | Piston Dia. (mm): 185 | Piston Stroke (mm): 29 | Piston Surface Area (Push) (cm²): 201 | Piston Surface Area (Pull) (cm²): 187 | Piston Force (Push) (kN (kgf)): 89(9000) | Piston Force (Pull) (kN (kgf)): 82(8300) | Max. Operating Pressure (MPa (kgf/cm²)): 4.5(45) | Max. Speed (rpm): 5000 | Weight (kg): 23 | Total Leakage (ℓ/min): 3.5
SD-18582Available I.D. (mm): 82 | Piston Dia. (mm): 185 | Piston Stroke (mm): 30 | Piston Surface Area (Push) (cm²): 195 | Piston Surface Area (Pull) (cm²): 180 | Piston Force (Push) (kN (kgf)): 85(8700) | Piston Force (Pull) (kN (kgf)): 79(8100) | Max. Operating Pressure (MPa (kgf/cm²)): 4.5(45) | Max. Speed (rpm): 4800 | Weight (kg): 26 | Total Leakage (ℓ/min): 3.5
SD-20591Available I.D. (mm): 91 | Piston Dia. (mm): 205 | Piston Stroke (mm): 34 | Piston Surface Area (Push) (cm²): 233 | Piston Surface Area (Pull) (cm²): 224 | Piston Force (Push) (kN (kgf)): 105(10700) | Piston Force (Pull) (kN (kgf)): 101(10299) | Max. Operating Pressure (MPa (kgf/cm²)): 4.5(45) | Max. Speed (rpm): 4000 | Weight (kg): 29 | Total Leakage (ℓ/min): 5
SD-21510Available I.D. (mm): 103 | Piston Dia. (mm): 220 | Piston Stroke (mm): 35 | Piston Surface Area (Push) (cm²): 238 | Piston Surface Area (Pull) (cm²): 230 | Piston Force (Push) (kN (kgf)): 105(10700) | Piston Force (Pull) (kN (kgf)): 101(10300) | Max. Operating Pressure (MPa (kgf/cm²)): 4.5(45) | Max. Speed (rpm): 3600 | Weight (kg): 37 | Total Leakage (ℓ/min): 4.5
SD-25411Available I.D. (mm): 117.5 | Piston Dia. (mm): 250 | Piston Stroke (mm): 23 | Piston Surface Area (Push) (cm²): 356 | Piston Surface Area (Pull) (cm²): 325 | Piston Force (Push) (kN (kgf)): 138(14100) | Piston Force (Pull) (kN (kgf)): 126(12900) | Max. Operating Pressure (MPa (kgf/cm²)): 4.0(40) | Max. Speed (rpm): 3000 | Weight (kg): 54 | Total Leakage (ℓ/min): 6
