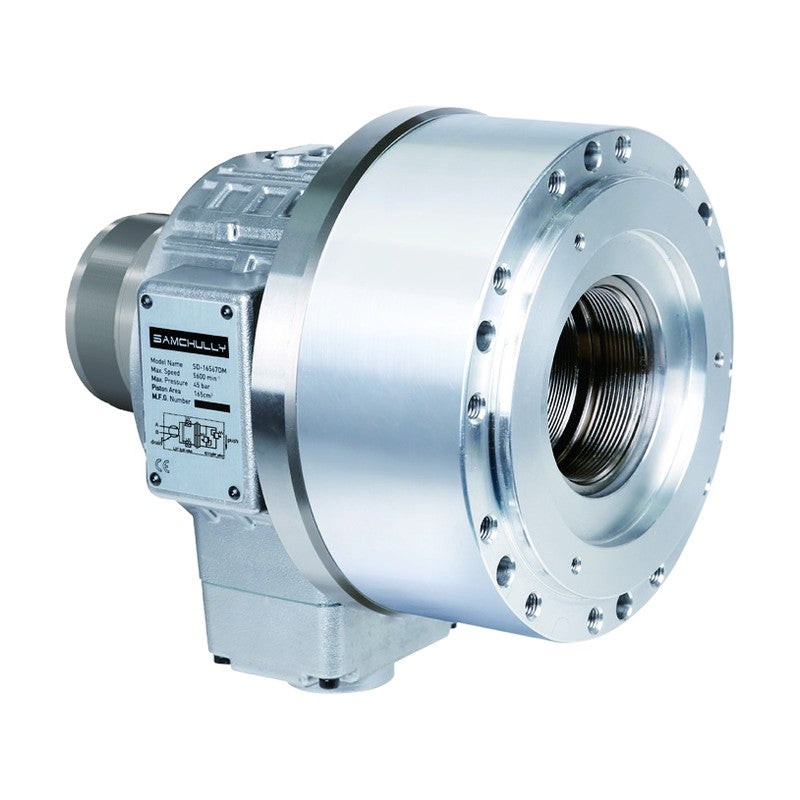

Samchully Mega-Bore Short-Body Open-Center Hydraulic Cylinder SDL

Samchully Mega-Bore Short-Body Open-Center Hydraulic Cylinder SDL

Large-bore open-center hydraulic cylinder for machines with limited clearance.

Key features

  • Low drain rate reduces heat generation
SDL-25411 Available I.D. (mm): 117.5 | Piston Dia. (mm): 250 | Piston Stroke (mm): 50 | Piston Surface Area (Push) (cm²): 356 | Piston Surface Area (Pull) (cm²): 325 | Piston Force (Push) (kN (kgf)): 138(14100) | Piston Force (Pull) (kN (kgf)): 126(12900) | Max. Operating Pressure (MPa (kgf/cm²)): 4.0(40) | Max. Speed (rpm): 3000 | Weight (kg): 54 | Total Leakage (ℓ/min): 6
SDL-30516 Available I.D. (mm): 166.5 | Piston Dia. (mm): 305 | Piston Stroke (mm): 51 | Piston Surface Area (Push) (cm²): 480 | Piston Surface Area (Pull) (cm²): 436 | Piston Force (Push) (kN (kgf)): 152(15483) | Piston Force (Pull) (kN (kgf)): 138(14060) | Max. Operating Pressure (MPa (kgf/cm²)): 3.3(33) | Max. Speed (rpm): 2000 | Weight (kg): 90 | Total Leakage (ℓ/min): 8.4
Rotary CylindersSamchully
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samchully Mega-Bore Short-Body Open-Center Hydraulic Cylinder SDL

Brand Samchully·Rotary Cylinders

Available part numbers (2)

SDL-25411, SDL-30516

How to order

Send the Samchully part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SDL-25411Available I.D. (mm): 117.5 | Piston Dia. (mm): 250 | Piston Stroke (mm): 50 | Piston Surface Area (Push) (cm²): 356 | Piston Surface Area (Pull) (cm²): 325 | Piston Force (Push) (kN (kgf)): 138(14100) | Piston Force (Pull) (kN (kgf)): 126(12900) | Max. Operating Pressure (MPa (kgf/cm²)): 4.0(40) | Max. Speed (rpm): 3000 | Weight (kg): 54 | Total Leakage (ℓ/min): 6
SDL-30516Available I.D. (mm): 166.5 | Piston Dia. (mm): 305 | Piston Stroke (mm): 51 | Piston Surface Area (Push) (cm²): 480 | Piston Surface Area (Pull) (cm²): 436 | Piston Force (Push) (kN (kgf)): 152(15483) | Piston Force (Pull) (kN (kgf)): 138(14060) | Max. Operating Pressure (MPa (kgf/cm²)): 3.3(33) | Max. Speed (rpm): 2000 | Weight (kg): 90 | Total Leakage (ℓ/min): 8.4
