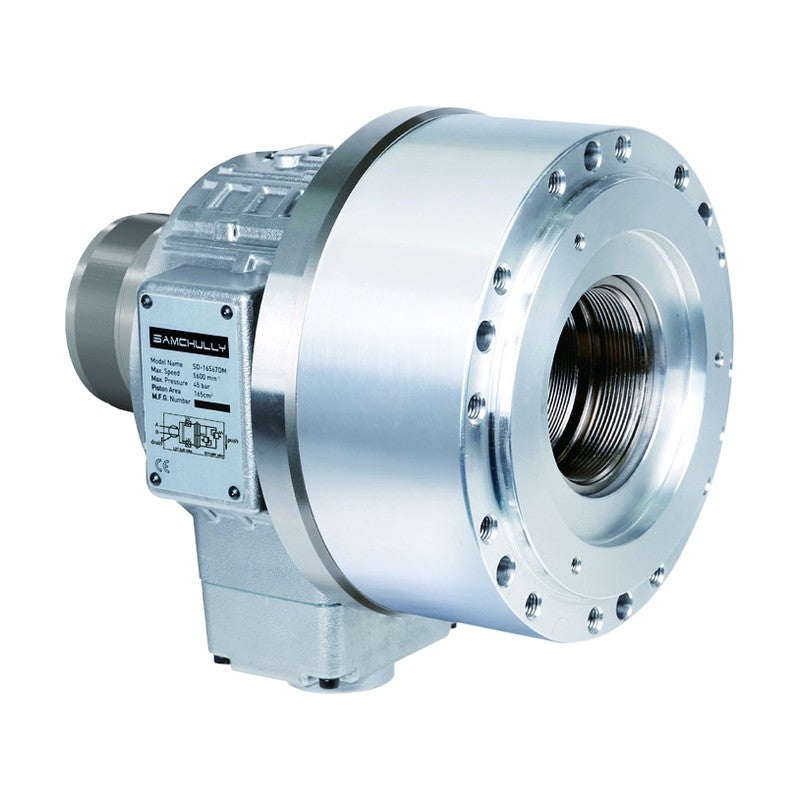

Samchully Mega-Bore Ultra-Compact Open-Center Hydraulic Cylinder SD-E

Samchully Mega-Bore Ultra-Compact Open-Center Hydraulic Cylinder SD-E

Open-center hydraulic cylinder for lathes requiring a large bore and an ultra-compact body, with mounting dimensions to European standards.

Key features

  • Low drain rate reduces heat generated by the hydraulic unit
  • Mounting dimensions suit European machine standards

Specifications

Max. Operating Pressure (MPa (kgf/cm²)) 4.5(45)
SD-13546E Available I.D. (mm): 46.5 | Piston Dia. (mm): 132 | Piston Stroke (mm): 25 | Piston Surface Area (Push) (cm²): 111 | Piston Surface Area (Pull) (cm²): 100 | Piston Force (Push) (kN (kgf)): 47(4800) | Piston Force (Pull) (kN (kgf)): 44(4500) | Max. Speed (rpm): 7000 | Weight (kg): 10 | Total Leakage (ℓ/min): 2.5
SD-15452E Available I.D. (mm): 52.5 | Piston Dia. (mm): 151 | Piston Stroke (mm): 25 | Piston Surface Area (Push) (cm²): 144 | Piston Surface Area (Pull) (cm²): 134 | Piston Force (Push) (kN (kgf)): 62(6285) | Piston Force (Pull) (kN (kgf)): 57(5850) | Max. Speed (rpm): 6200 | Weight (kg): 14 | Total Leakage (ℓ/min): 3
SD-16567E Available I.D. (mm): 67.5 | Piston Dia. (mm): 165 | Piston Stroke (mm): 29 | Piston Surface Area (Push) (cm²): 164 | Piston Surface Area (Pull) (cm²): 152 | Piston Force (Push) (kN (kgf)): 67(6863) | Piston Force (Pull) (kN (kgf)): 62(6351) | Max. Speed (rpm): 5600 | Weight (kg): 18 | Total Leakage (ℓ/min): 3.2
SD-17577E Available I.D. (mm): 77 | Piston Dia. (mm): 177 | Piston Stroke (mm): 29 | Piston Surface Area (Push) (cm²): 189 | Piston Surface Area (Pull) (cm²): 175 | Piston Force (Push) (kN (kgf)): 80(8100) | Piston Force (Pull) (kN (kgf)): 73(7400) | Max. Speed (rpm): 5000 | Weight (kg): 23 | Total Leakage (ℓ/min): 3.5
SD-18582E Available I.D. (mm): 82 | Piston Dia. (mm): 185 | Piston Stroke (mm): 30 | Piston Surface Area (Push) (cm²): 195 | Piston Surface Area (Pull) (cm²): 180 | Piston Force (Push) (kN (kgf)): 85(8700) | Piston Force (Pull) (kN (kgf)): 79(8100) | Max. Speed (rpm): 4800 | Weight (kg): 26 | Total Leakage (ℓ/min): 3.5
SD-19568E Available I.D. (mm): 86.5 | Piston Dia. (mm): 190 | Piston Stroke (mm): 34 | Piston Surface Area (Push) (cm²): 203 | Piston Surface Area (Pull) (cm²): 187 | Piston Force (Push) (kN (kgf)): 90(9200) | Piston Force (Pull) (kN (kgf)): 83(8500) | Max. Speed (rpm): 4500 | Weight (kg): 27 | Total Leakage (ℓ/min): 4
SD-20595E Available I.D. (mm): 95.5 | Piston Dia. (mm): 205 | Piston Stroke (mm): 34 | Piston Surface Area (Push) (cm²): 233 | Piston Surface Area (Pull) (cm²): 215 | Piston Force (Push) (kN (kgf)): 105(10700) | Piston Force (Pull) (kN (kgf)): 95(9700) | Max. Speed (rpm): 4000 | Weight (kg): 29 | Total Leakage (ℓ/min): 5
SD-21511E Available I.D. (mm): 110.5 | Piston Dia. (mm): 220 | Piston Stroke (mm): 35 | Piston Surface Area (Push) (cm²): 257 | Piston Surface Area (Pull) (cm²): 237 | Piston Force (Push) (kN (kgf)): 115(11700) | Piston Force (Pull) (kN (kgf)): 107(10900) | Max. Speed (rpm): 3600 | Weight (kg): 44 | Total Leakage (ℓ/min): 7
